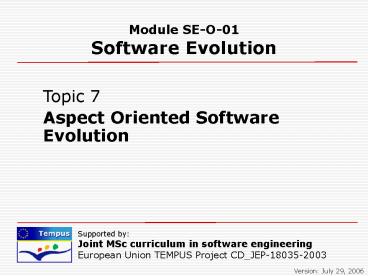

Module SE-O-01Software Evolution
Topic 7 Aspect Oriented Software Evolution
2
Contents

• Introduction
• Crosscutting concerns
• Core concepts of AOP
• Implementing AOP
• Aspectual refactoring

3
What is AOP?

• The programming paradigm which attempt to aid
  programmers in the separation of concerns,
  specifically cross-cutting concerns, as an
  advance in modularization wikipedia

4
Separation of Concerns (SoC)

• Separation of Concerns (Dijkstra, Parnas)
  realization of problem domain concepts into
  separate units of software.
• There are many benefits associated with having a
  concern of a software system being expressed in a
  single modular unit.
• Better analysis and understanding of systems,
  easy adaptability, maintainability and high
  degree of reusability.
• Crucial to software development.
• How to best achieve it is an open issue.

5
Contents

• Introduction
• Crosscutting concerns
• Core concepts of AOP
• Implementing AOP
• Aspectual refactoring

6
Crosscutting concerns

• In OOP, decomposition (through mechanisms
  provided by current languages) is one-dimensional
  focusing on the notion of a class.
• In large systems, interaction of components is
  very complex.
• Current programming languages do not provide
  constructs to address certain properties in a
  modular way.
• OOP cannot address the design or implementation
  of behavior that spans over many modules (often
  unrelated).

7
Crosscutting concerns

• Certain properties cannot be localized in single
  modular units, but their implementation cuts
  across the decomposition hierarchy of the system.
• These properties are called crosscutting
  concerns, or aspects.

8
An initial picture of crosscutting
Component
Component
Component
9
A first example

• In this example, authentication, contract
  checking and logging are tangled with the core
  operation (methods) of the component (class)

public class BusinessLogic data members
for business logic data members for
authentication, contract checking and
logging public void someOperation
// perform authentication // ensure
preconditions // log the start of an
operation perform core operation
// authentication // ensure
postconditions // log successful
termination of // operation //
more operations similar to the above
10
Some observations

• Two issues are of interest here
• Implementation for authentication, contract
  checking and logging is not localized.
• Code spans over many methods of potentially many
  classes and packages.
• Implementation of someOperation() does much more
  than performing some core functionality.
• It contains code for more than one concerns.

11
Symptoms of crosscutting

• Crosscutting imposes two symptoms on software
  development
• Code scattering implementation of some concerns
  not well modularized but cuts across the
  decomposition hierarchy of the system.
• Code tangling a module may contain
  implementation elements (code) for various
  concerns.
• Scattering and tangling describe two different
  facets of the same problem.

12
Where does crosscutting originate?

• There might not always be a one-to-one mapping
  from problem domain to solution space.
• Requirements space is n-dimensional, but
  Implementation space is one-dimensional (In OOP
  everything must belong to a class)

Implementation
Requirements
R1
C1
R2
C2
R3
C3
R4
C4
scattering
tangling
13
Tyranny of dominant decomposition

• The fact that there is a single axis of
  decomposition has been termed decomposition
  tyranny.
• Decomposition tyranny is the source of
  crosscutting.
• The decomposition tyranny (and crosscutting)
  apply to artifacts across the life-cycle of
  software (not confined to implementation)

14
Negative implications of crosscutting

• As a result of crosscutting, the benefits of OOP
  cannot be fully utilized, and developers are
  faced with a number of implications
• Poor traceability of requirements Mapping from
  an n-dimensional space to a single dimensional
  implementation space.
• Lower productivity Simultaneous implementation
  of multiple concerns in one module breaks the
  focus of developers.
• Strong coupling between modular units in classes
  that are difficult to understand and change.

15
Negative implications of crosscutting

• Low degree of code reusability. Core
  functionality impossible to be reused without
  related semantics, already embedded in component.

• Low level of system adaptability.
• Changes in the semantics of one crosscutting
  concern are difficult to trace among various
  modules that it spans over.
• Programs are more error prone.
• Difficult evolution.
• Crosscutting affects the quality of software.

16
Contents

• Introduction
• Crosscutting concerns
• Core concepts of AOP
• Implementing AOP
• Aspectual refactoring

17
We would like to move from this picture
Component
Component
Component
18
to this one!
We want to provide a new unit of modularity, that
explicitly captures a crosscutting concern.
aspects
component
component
component
19
Structure of an AOP program

• In AOP, program components aspects
  join point model JPM.
• JPM rules are not part of component definitions
  (they may be placed in aspect definitions or in
  separate definitions).

aspect A whenever ltconditiongt perform
ltactiongt
class C1 ...
class C2 ...
class C3 ...
20
Join point models

• A JPM defines three things
• When the advice can run. These are called join
  points because they are points in a running
  program where additional behavior can be usefully
  joined.
• A way to specify (or quantify) join points,
  called pointcuts. Pointcuts determine whether a
  given join point matches.
• A means of specifying code to run at a join
  point. This code is called advice, and can run
  before, after, and around join points.

21
Core AOP concepts
whenever execution reaches this point
or this point
execute advice code!
C1
C2
C3

• In program P, when condition C occurs, execute
  action A.
• Condition (C2 or C3) specified by a pointcut

22
Obliviousness principle
A
C1
C2
C3

• Note that neither C2 nor C3 make calls to A !
• Even though components C2 and C3 are enhanced by
  the aspectual behavior defined by A, they are not
  aware of this (nor have they been implemented to
  accept such enhancements).
• Contrast this with procedure calls or message
  passing.

23
Contents

• Introduction
• Crosscutting concerns
• Core concepts of AOP
• Implementing AOP
• Aspectual refactoring

24
Putting everything together - weaving
(Core Functionality Classes)

Compiler
(Crosscutting Behavior Aspects)

Equivalent program in the original language
(Composition Rules)
25
Runtime combining
public class BusinessLogic data members
for business logic public void someOperation
perform core operation // more
operations similar to the above
compiler
public aspect Authenticator data members
for authentication public void authenticate()

compiler
Runtime
compiler
public aspect Logger data members for
logging public void log()
compiler
public aspect ContractChecker data members
for contract checking public boolean
precondition() public boolean
postcondition()..
26
Benefits of AOP

• Provisions of AOP should be compared with those
  of other paradigms, such as OOP.
• Clear (two-dimensional) separation of concerns.
• Less tangled and less scattered code.
• Improves modularity Makes concerns easier to
  manipulate (reason about, debug, change, and
  reuse).
• Higher level of abstraction.
• Good maintenance and higher level of
  adaptability.
• AOP is not bound to OOP.
• In the literature you can find proposals for AOP
  with functional, logical and procedural
  programming.

27
This is what I meant by focusing ones
attention upon a certain aspect it does not
mean completely ignoring the other ones, but
temporarily forgetting them to the extend that
they are irrelevant for the current topic. Such
separation, even if not perfectly possible, is
yet the only available technique for effective
ordering of ones thoughts that I know of. E.
W. Dijkstra, A Discipline of Programming,
1976 last chapter, In retrospect
28
Contents

• Introduction
• Crosscutting concerns
• Core concepts of AOP
• Implementing AOP
• Aspectual refactoring

29
Aspectual refactoring

• refactoring an object-oriented legacy system in
  an aspect-oriented way
• makes it possible to reorganize code containing
  crosscutting concerns to get rid of code tangling
  and code scattering
• These techniques also could be applied to aspect
  oriented code to improve its structure

30
Some aspectual refactorings

• Extract method calls
• Extract introduction
• Extract interface implementation
• Extract exception handling
• Replace override with advice

31
Extract Method Calls

• When different parts of a program include similar
  behavior and so that the program has a duplicated
  piece of code in multiple places
• extract method refactoring (non AOP) gt
• encapsulate the duplicated logic in a new method,
  and replace each original piece of code with a
  call to the new method.
• But then there will be calls to the new method in
  multiple places of the program.
• Extract method calls refactoring can be used to
• encapsulate those calls in an aspect,
• which contains a pointcut capturing all the
  points where the method must be called and
• advises this pointcut with the call to the
  refactored method.

32
Extract Method Calls
33
Extract advice

• Extract advice refactoring, deals with the same
  problem with extract method calls refactoring.
• But also, if different parts of a program can
  include similar behavior that cannot be
  refactored into a separate method, extract advice
  refactoring can be used to extract the behavior
  into a piece of advice.

34
Extract interface implementation

• When more than one class implements an interface,
  this may result in duplicated code required to
  implement this interface (even with classical
  Extract interface refactoring)
• Solutionwriting an aspect that introduces
  default implementation to the interface

35
Example extract interface impl.

• Original code
• public interface ServiceCenter
• public String getId()
• public void setId(String id)
• public String getAddress()
• public void setAddress(String address)

• public class ATM extends Teller implements
  ServiceCenter
• private String _id
• ...
• public String getId()
• return _id
• public void setId(String id)
• _id id

36
Example extract interface impl.

• Refactored interface
• public interface ServiceCenter
• public String getId()
• public void setId(String id)
• . . .
• static abstract aspect IMPL
• private String ServiceCenter._id
• private String ServiceCenter._address
• public String ServiceCenter.getId()
• return _id
• public void ServiceCenter.setId(String
  id)
• _id id

37
Example extract interface impl.

• Now we can take out the implementation of the
  methods declared in ServiceCenter from the ATM
  class
• Class ATM after refactoring
• public class ATM extends Teller implements
  ServiceCenter
• ...

38
Extract exception handling

• Exception handling is a crosscutting concern that
  affects most nontrivial classes. Due to the
  structure of exception handling code (try/catch
  blocks), conventional refactoring cannot perform
  further extraction of common code. Each class (or
  a set of classes) may have its own way to handle
  exceptions encountered during execution of its
  logic. With AO refactoring, you can extract
  exception handling code in a separate aspect

39
Example extract exception handling

• Code before refactoring
• public class MainSystem
• ...
• public ArrayList getDrugNames() throws Exception

• ArrayList namesnew ArrayList()
• for (int i0iltthis.drugs.size()i)
• names.add(((Drug)drugs.get(i)).getName())

• if (names.size()0) throw new Exception("No
  drugs have been added.")
• return names
• public ArrayList getPatientNames() throws
  Exception
• ArrayList namesnew ArrayList()
• for (int i0iltthis.patients.size()i)
• names.add(((Patient)patients.get(i)).getNam
  e())
• if (names.size()0)
• throw new Exception("No patients have
  been Registered.")
• return names

40
Example extract exception handling

• We are introducing an aspect covering all
  exception handling (AspectJ)
• public aspect ExceptionHandlerAspect
• after(MainSystem ms) returning(ArrayList arr)
  throws Exception
• target(ms) execution (ArrayList
  getPatientNames())
• if (arr.size()0)
• throw new Exception("No patients are
  registered.")
• after(MainSystem ms) returning(ArrayList arr)
  throws Exception
• target(ms) execution (ArrayList
  getDrugNames())
• if (arr.size()0)
• throw new Exception("No drugs are
  added.")

41
Example extract exception handling

• Code after refactoring
• public class MainSystem //no exception handling
  code
• public ArrayList getDrugNames()
• ArrayList namesnew ArrayList()
• for (int i0iltthis.drugs.size()i)
• names.add(((Drug)drugs.get(i)).getName())

• return names
• public ArrayList getPatientNames()
• ArrayList namesnew ArrayList()
• for (int i0iltthis.patients.size()i)
• names.add(((Patient)patients.get(i)).ge
  tName())
• return names

42
Replace override with advice

• It is often required to augment additional common
  behavior to many methods of a class.
• A typical solution is to create a subclass and
  override methods to perform some additional
  logic.
• For example, you may have a model class without
  any support for observer notification. You can
  add such a support by creating a subclass and
  overriding each state-modifying method to notify
  the observers.
• With AO refactoring, you can use an aspect to
  advise the needed method with additional logic.
  For example, instead of overriding, you may
  simply advise methods of the subclass that
  notifies the observers.

43
Other AOP refactorings

• Extract concurrency control
• Extract worker object creation
• Replace argument trickle by wormhole
• Extract Lazy initialization
• Extract contract enforcement
• Explained in Laddad

44
Bibliography

• Tzilla Elrad, Robert E. Filman and Atef Bader,
  "Aspect-Oriented Programming", Communications of
  the ACM, Vol. 44, No. 10, October 2001, pp.
  29-32.
• Ramnivas Laddad, AspectJ in Action Practical
  Aspect-Oriented Programming, Manning, 2003.
• TheServerSide.com features two sample chapters
  from AspectJ in Action/articles/AspectJreview.t
  ss
