Circular Motion 3'8 in the text book

1

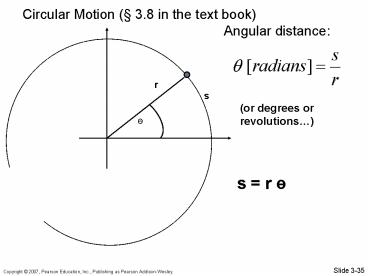

Circular Motion ( 3.8 in the text book) Angular
distance
r
s
(or degrees or revolutions)
?
s r ?
Slide 3-35
2
Circular Motion ( 3.8 in the text book) Angular
distance
v
r
s
(or degrees or revolutions)
?
?
s r ? ? ??/?t v r ?
Slide 3-35
3
Uniform Circular Motion ( 3.8 in the text book)
There is an acceleration because the velocity is
changing direction.
Uniform means constant v
Slide 3-35
4
Question

• For uniform circular motion, the acceleration
• is parallel to the velocity.
• is directed toward the center of the circle.
• is larger for a larger orbit at the same speed.
• is always due to gravity.
• is always negative.

Slide 6-2
5
Answer

• For uniform circular motion, the acceleration
• is directed toward the center of the circle.

Slide 6-3
6
Checking Understanding
When a ball on the end of a string is swung in a
vertical circle

• We know that the ball is accelerating because
• the speed is changing.
• the direction is changing.
• the speed and the direction are changing.

Slide 6-9
7
Answer
When a ball on the end of a string is swung in a
vertical circle

• We know that the ball is accelerating because
• the direction is changing.

Slide 6-10
8
Checking Understanding
When a ball on the end of a string is swung in a
vertical circle

• What is the direction of the acceleration of the
  ball?
• Tangent to the circle, in the direction of the
  balls motion
• Toward the center of the circle

Slide 6-11
9
Answer
When a ball on the end of a string is swung in a
vertical circle

• What is the direction of the acceleration of the
  ball?
• Toward the center of the circle

Slide 6-12
10
Uniform Circular Motion
Slide 6-13
11

• A coin sits on a rotating turntable.
• At the time shown in the figure, which arrow
  gives the direction of the coins velocity?

Slide 6-38
12
Answer

• A coin sits on a rotating turntable.
• At the time shown in the figure, which arrow
  gives the direction of the coins velocity?

Slide 6-39
