Title: Super BigBite concepts Bogdan Wojtsekhowski, JLab


1

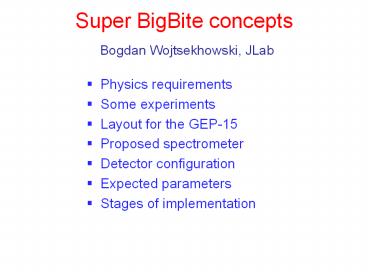

Super BigBite concepts Bogdan Wojtsekhowski, JLab
  • Physics requirements
  • Some experiments
  • Layout for the GEP-15
  • Proposed spectrometer
  • Detector configuration
  • Expected parameters
  • Stages of implementation

2
Physics requirements
  • Generic experiments to consider
  • Inclusive (e,e) - pol DIS
  • Exclusive (e,eN) - GEP/GMP
  • Semi-inclusive (e,eh) - SIDIS
  • Requirements
  • Solid angle - gt 20 msr
  • Scattering angle - 5-30 deg.
  • Momentum range - 1-8 GeV/c

3
Some of Experiments
  • GMN with 6 GeV beam (Q2 up to 8 GeV2)
  • Many experiments for 11 GeV beam
  • GEP - unique kinem. correlation -gt L 1039
  • A1n/d2n A1p/dp
  • Transversity (e,e????) and (e,eK/-)
  • FFs with polarized target - GEN, GEP

4
GEP-15 layout
5
Design considerations
  • Vertical bending
  • Detector should be behind magnetic field
  • Compact beam spot on the target
  • Simple dipole is the best for large momentum bite
  • Field integral and bend angle vs detector
    resolution
  • Progress in tracking detector technology

6
Proposed Spectrometer
  • Magnet of 100 tons with aperture 46 cm x 122 cm
    full 3 Tesla-meter field integral
  • Detector package- GEM trackers resolution 0.07
    mm
  • - Calorimeter based trigger gt 1
    GeV
  • - Lead-glass PID for electron
  • - Fast RICH from HERMES for ?,K
  • How to put a wide magnet at 10o angle near the
    target?
  • Iron yoke is cut off to allow for the
    beam pipe!

7
Small angle concept
8
Layout of SuperBigBite
2-nd arm
RICH Preshower Shower
9
Parameters
Momentum acceptance at full field - 2 GeV/c and
higher Momentum resolution 0.5 for 8
GeV/c Solid angle at 14 degree is 55 msr (72
from pivot to yoke) Solid angle has aspect ratio
12.5 Angle resolution of 0.3 mrad Vertex
resolution of 1 mm Target length 40 cm Simple
optics, flat acceptance - perfect for terms like
sin2?
??mrad 5 10 15 20
??msr 13 38 58 85
10
The 48D48 magnet at BNL
100 tons, 18.5 x 48 x 48 field volume
11
GEM base tracker
Rate capability 10 kHz/mm2
12
Best PID fast RICH -like in HERMES
Sensitive area 60x200 cm2 viewed with 1934 PMTs
13
Plans
  • Development will be driven/funded by the
    GEP-15 collaboration
  • Components reused are a magnet and both
    calorimeters
  • Proposal GEP/GMP (GEP-15) is submitted to the
    PAC32
  • Proposal GMN/GMP is under preparation to the next
    PAC
  • GMN with the magnet - before 2011 at 50 field (
    1/4 power )
  • Support stand and full power for the magnet
    (refurbished BNLs)
  • Construction of the tracking detectors - BIG NEW!
  • I - 10x10 cm prototype, II- 40x140 cm
    prototype
  • Francos collaboration INFNGlasgowUVAFIU
    JLab
  • Reconstruction of the hadron calorimeter -
    WMDubna
  • More proposals are under development for 12 GeV
    PACs
  • Possible second arm magnet for the J/?
