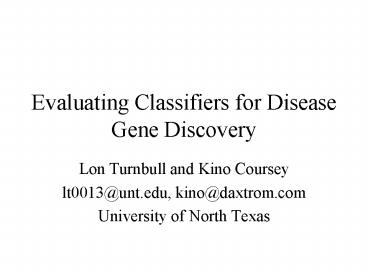

Evaluating Classifiers for Disease Gene Discovery

1
Evaluating Classifiers for Disease Gene Discovery

• Lon Turnbull and Kino Coursey
• lt0013_at_unt.edu, kino_at_daxtrom.com
• University of North Texas

2
Biocomputing Fall 2005

• CSCD 4930.004/CSCE 5933.007
• Biol 4930.773/Biol 5905.773
• Instructors Armin Mikler and Kaja Abbas

3
Outline

• An interesting hypothesis
• What is a disease gene?
• Can disease genes be classified using machine
  learning tools?
• If so, can we do better?
• Classifiers Data
• Analysis Conclusions

4
Hypothesis

• It has been suggested that the genes which have
  some relationship to hereditary disease might
  have common variations in their DNA sequence
  structure.

5
What is a disease gene?

• Any gene that has mutated in such a way that the
  proteins created from it are dysfunctional.

6
What is a disease gene?

• Any gene that has mutated in such a way that the
  proteins created from it are dysfunctional.
• However, mutation can happen to any gene, so can
  one actually search for physical characteristics
  of a disease gene?

7
Reviewed Paper

• A research group has used the alternating
  decision tree algorithm from Weka to test the
  hypothesis.
• On average, 70 of the genes marked as disease
  phenotype were correctly identified with their
  automatic classifier they called PROSPECTR.
• They found that about 40 of their chosen
  features had statistically significant
  differences.

8
PROSPECTR results
Feature Ratio
Gene encodes signal peptide 2.06
Gene Length 1.42
5' CpG islands 1.33
Protein length 1.29
Exon Number 1.25
cDNA length 1.15
Distance to neighboring gene 1.13
3' UTR length 1.09
9
Question

• Can we do better with other methods of
  classification?

10
Classification Methods

1. ADTree alternating decision tree, optimized for
   two-class problems.
2. J48 a variant of classification 7.
3. Logistic Linear logistic regression.
4. SMO Sequential Minimal Optimization algorithm
   for training a support vector classifier.
5. Naïve Bayes Standard probabilistic Naïve Bayes.
6. Ibk-K K-nearest neighbor classifier (k5).
7. PART Obtains rules from partial decision trees
   build using C4.5 heuristics.

11
Test Data

• A training set that consisted of 1,084 genes
  known to be associated with a disease and 1,084
  genes not known to be associated with genes
  diseases.
• A set with 675 disease genes listed in the Human
  Gene Mutation Database (HGMD) and 675 genes not
  known to be involved in disease.
• A set based on oliongenic disorders. It
  contained 54 genes known to be associated with an
  oliongenic disorder and 54 genes not known to be
  associated with gene diseases.

12
Classifier interpretation
There are four possible results from a
classification analysis. They are that a
selected gene either

1. Matches a disease gene.
2. Matches a non disease gene.
3. Is selected to match a disease gene but does not
   do so.
4. Is selected to match a non-disease gene but does
   not do so.

13
(No Transcript)
14
Validity

• The analysis of an independent data set ought to
  produce similar results to the training set. If
  not the analysis is suspect.

15
(No Transcript)
16
Validity

• If the analysis is valid, we would expect that
  classification using the only the successful
  subset of features found by the PROSPECTR
  application would result in improved results.
• The removal of non-relevant features ought to
  decrease the number of mismatches.

17
(No Transcript)
18
All data analyzed
19
The Best Classifier Results
Classifier Percent total corrects Difference with best features
J48 88.7 -15.1
PART 80.7 -10.6
ADTree 75.5 -3.1
Ibk-K 75.4 -0.32
Naïve Bayes 73.0 -12.0
SMO 72.3 -6.0
Logistic 70.0 -4.9
20
Conclusions

• We have shown that classifier 2, performs better
  than classifier 1, the one chosen by PROSPECTR
  method.
• The features that showed the largest differences
  in the PROPSPECTR study were most likely a
  statistical anomaly.
• It seems that using these machine learning
  methods to classify disease genes is not very
  productive. At best it needs to be combined with
  some other independent method.

21
References

• Euan Adie et. al., Speeding disease gene
  discovery by sequence based candidate
  prioritization, BMC Bioinformatics 2005, 655.
• Hammond MP, Birney E, Genome information
  resources - developments at Ensembl. Trends in
  Genetics 2004, 20268-272.
• http//www.biomedcentral.com/1471-2105/6/55.
• http//www.ncbi.nlm.nih.gov/books/bv.fcgi?ridgnd
• http//www.genetics.med.ed.ac.uk/prospectr/

22
Questions
23
What causes disease?

• Causes of disease are a continuum of genetic
  activity interacting with nongenetic factors.

• The Metabolic Molecular Basis of Inherited
  Disease. Vol 1, Chapter 1. 8ed.
• RC 627.8.M47.2001

24
Weka

• A collection of machine learning algorithms for
  data mining tasks. The algorithms can either be
  applied directly to a data set or called from
  your own Java code.
• Contains tools for data pre-processing,
  classification, regression, clustering,
  association rules, and visualization.
• Well-suited for developing new machine learning
  schemes.
• Is open source software issued under the GNU
  General Public License.
