Dimensions of a view mechanism designing Jacek Leszczylowski jacekipipan'waw'pl

1

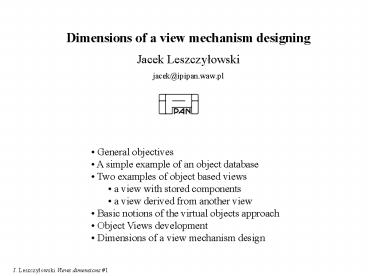

Dimensions of a view mechanism designingJacek
Leszczylowskijacek_at_ipipan.waw.pl

• General objectives
• A simple example of an object database
• Two examples of object based views
• a view with stored components
• a view derived from another view
• Basic notions of the virtual objects approach
• Object Views development
• Dimensions of a view mechanism design

2
Object based views - what do we expect?

• create view Good_Income_Employee(name,
  salary) by select NAME from EMP where
  1000 lt SAL lt 1950
• a view defines virtual data, which are
  efficiently derived from the stored data
• purpose - conceptualization and
  customization - autonomy via restriction -
  integration of heterogeneous databases (remote,
  legacy) - schema unification and evolution

• capabilities - renaming and hiding attributes of
  stored data - introducing virtual and stored
  attributes of virtual and stored data -
  deriving virtual data from a collection of stored
  and virtual data - allowing modification of
  virtual data - persistence of virtual data -
  generality, non-triviality and universality of
  basic view concepts - elegant integration and
  orthogonality with the underlying concepts

3
A toy database
Please note typing
4
VIEW derived (from employees) objects having
attributes name (derived) and donation (stored)
5
VIEW derived (from employees) objects having
attributes name (derived) and donation (stored)
6
VIEW generous donors who donate at least 400
derive it from derived donors objects
7
VIEW generous donors who donate at least 400
derive it from derived donors objects
8
The basic notions of the virtual object approach

• view (possibly parametric) is considered as
  collection of stored (ordinary) and derived data
  Note operations available for the derived data
  can be considered as part of a database view
• virtual objects possessing virtual identity,
  name and content (value, objects) view -
  view can be populated by one virtual object -
  average - each virtual object can be derived
  from a collection of objects (some of them can be
  virtual) the stored and derived object used
  to derive virtual ones are generators of the
  virtual objects - virtual objects can reside
  in one place or be distributed over a database
  - virtual identity built in an uniform way from
  representation objects identifiers and
  generators
• minimal materialization - a view (virtual
  objects) is not materialized but represented
  (always) by one stored special object called
  representation object
• operations (procedures and methods) are
  (re)defined as procedures operating over database

• view classes can be abstract, contain view
  definition and have virtual instances
• separation of a view definition and a view
  creation creating view creating virtual
  objects and giving names to those virtual
  objects within a programming environment.
• virtual references (objects identities) - the
  only means to access virtual objects
• representation binders (living in stack
  sections) are of the form
  (identifier, virtual reference, virtuals) with
  the flag virtuals are single entities to
  represent all virtual objects known within the
  environment under a name

9
Object Views development

• only four basic new notions virtual object,
  view class representation object,
  representation binder
• orthogonality of the notions wrt all notions
  (new and all) - views on views
• separation of - view definition - located
  within view class - (re)defined operations (in
  case of abstract view class) - view activation
  (creation of virtual objects)
• encapsulation of view related data within the
  representation objects
• generality - deriving virtual data from a
  collection of stored and virtual data
• persistence of virtual data
• transparency - users do not differentiate
  between stored data and virtual data

• to amalgamate hierarchies (of standard and view
  classes)
• stored and virtual objects to be instances of
  standard and view classes
• to develop more sophisticated examples reaching
  the design borders
• to extend the existing ODRA implementation to
  include the notions

10
Dimensions of a view mechanism designing

• Views vs types, classes, roles and interfaces
• views as types
• hierarchies of views combining with (abstract)
  classes
• Generators of virtual objects seeds and a
  state of a view
• Places one or many different o of
• view definition
• evaluation of the generating query
• virtual objects (in one place/distributed) are
  they related to (real) classes
• Stored and virtual links to view definitions and
  virtual objects
• Views one element vs many elements
• Twin views parallel and nested
• Parametricity of views and its definitions
• Procedures/methods with definitions, views and
  virtual objects patameters
