Matthieu Hermet, Stan Szpakowicz

1

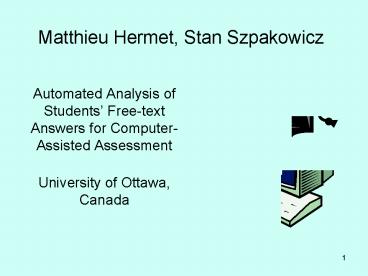

Matthieu Hermet, Stan Szpakowicz

• Automated Analysis of Students Free-text Answers
  for Computer-Assisted Assessment
• University of Ottawa, Canada

2
CAA for CALL

• To address the specificity of CALL
• ? where student material contains syntactic and
  orthographic errors
• with minimal pre-encoded material
• Content validation simple
• Form validation difficult
• ? A good case for automating based on Natural
  Language Processing

3
Text comprehension

• The uOttawa project CALL solutions for helping
  French-as-a-Second-Language students to enhance
  autonomous reading comprehension
• ? master the structure of text in order to
  understand the authors discursive intention
• ? guess the meaning of unknown words
• ? develop reformulation and synthesis capabilities

4
DidaLect

• is a FSL tool aimed at teaching autonomous
  reading skill (designed for intermediate- and
  advanced-level students)
• Is an instance of eLearning Intelligent Tutoring
  System
• adaptation to individual students skills and
  agenda
• access to external resources (dictionaries)
• built to reflect the cognitive concerns such as
  matching feedback to the students behaviour

5
Intelligence in DidaLect

• DidaLect begins its operation with a placement
  test to determine a students initial level
• varying order of questions to pick up the best of
  a students skill
• the implementation includes fuzzy logic methods
• A separate element of DidaLect is the processing
  of free-text answers
• need of a robust CAA component
• a trade-off between symbolic processing and
  Machine Learning techniques

6
Free-text answer assessment

• The problem is to know in advance what material
  to expect in student answers.
• Usually implemented as a classification problem
  a student answer must match reference answer(s).
• ? Size and form of reference material affects the
  process
• Here, a reference answer is the text itself
• ? A case for trying symbolic processing using
  techniques of Computational Linguistics

7
Expected limitations

• No possibility of modifying the size and form of
  the reference material, except by automatic
  processing to control reformulation.
• Therefore, this only works for limited forms of
  questions.
• Strong need to ground selection of questions in a
  firm didactic theory.
• Questions on texts for Text Comprehension
  (didactics offers a classification of question
  types).

8
Question types 1

• Text-Implicit based on two co-referenced
  sentences
•  le détecteur de décélération situé à l'avant du
  véhicule génère instantanément un courant
  électrique, qui déclenche une amorce, qui
  elle-même enflamme un mélange allumeur. Ce
  dernier met finalement le feu à l'agent
  propulseur responsable du gonflement du
  coussin.
• Q Quelle est la réaction en chaîne qui se
  produit lorsque survient un impact ?

• Text-Explicit based on a single sentence
•  d'habitude, l'hermaphrodisme frappe surtout les
  mâles, qu'elle dote de simulacres d'appareils
  génitaux féminins.
• Q Quarrive-t-il aux ours mâles lorsquils sont
  frappés dhermaphrodisme ?
• Ex R  Ils ont les génitaux féminins

9
Question types 2

• Identification, cause-effect, goal, comparison,
  definition, instrumental
• These categories express linguistically through
  lexical connectors
• Goal for, so that, in order to
• CauseEffect because, therefore
• So, the control of reformulation can be automated

10
Processing

• Find lexical differences between the students
  answer S and reference R
• Parse S and R, produce dependency relations
• Process different words (using a dictionary) to
  detect synonyms
• Control of syntax in S
• Control of reformulation in S wrt R

11
Tools

• A robust parser that enables partial recovery
  from errors in students answer
• A dictionary of synonyms
• A derivational dictionary
• Locally derived resources
• State and action verbs
• Ensemble of typical errors, set of syntactic and
  reformulation structures

12
Semantics and synonyms

• Examine word set differences and commonalities in
  search for
• Common words
• Reformulated words
• Different words
• Detect synonyms accross parts of speech
• Derive forms for a word lemma
• Search synonyms for each form and look for a
  match in Word Sets

13
Syntax and reformulation

• Correct syntactical structures to verify syntax
  of students answer
• Lexicalized reformulation structures to verify
  discourse conformity
• Ex pollution has increased with the rise of
  transportation
• Q Why has pollution increased ?
• Ans With the rise of transportation is
  partially wrong
• ? Because of the rise of transportation
• OR it has increased due to the rise of
  transportation
• ETC.

14
Parsing and tree-building

• S Le cardio-vasculaire d'un rat s'approche à
  une personne humain.
• SUBJ(ltapprocheapprocher53gt, ltcardio-vasculairec
  ardio-vasculaire48gt)
• OBJ(ltapprocheapprocher53gt, ltpersonnepersonne56
  gt)
• VMOD_POSIT1(ltapprocheapprocher53gt, ltuneun55gt)
• NMOD_POSIT1(ltcardio-vasculairecardio-vasculaire4
  8gt, ltratrat51gt)
• PREPOBJ(ltuneun55gt, ltàà54gt)
• PREPOBJ(ltratrat51gt, ltd'de49gt)
• DETERM(ltratrat51gt, ltunun50gt)
• The above are incrementally recomposed, based on
  lexical selection that maximizes promise of
  discovering material which diverges from R. That
  material is processed in parallel, in a similar
  fashion
• SUBJ( ltOBJ(ltapprochergt, ltNMOD(ltêtregt,
  lthumaingt)gt)gt,
• ltNMOD(ltNMOD(ltsystèmegt, ltcardio-vasculairegt)gt,
  ltratgt)gt)

15
Main types of heuristics

• To address syntactic correctness and/or
  equivalence between S and R the same sense but
  different structures
• ? bank of typical errors and correct structures
• To address discursive variations, detected as
  supplementary material
• ? bank of state and action verbs action verbs
  must be present, possibly reformulated
• To address, partially, errors in S
• ? word replacement to relaunch parsing when
  stopped due to lexical mistakes

16
Reformulation rules

• Examples
• Abstraction incidence sur le temps de gestation
  ? incidence sur la possibilité davoir une
  gestation écourtée (words like fact, chance,
  etc.)
• Cause-Effect Le plasma augmente et dilue les
  paramètres chimiques ? Laugmentation du plasma
  dilue les paramètres chimiques
• Is-A Le rat est un animal qui S ? Le rat S
• Attribute Le rat possède un système
  cardio-vasculaire ? Le système C-V du rat

17
Assessment

• Must give student feedback on
• Agreement and orthography
• Syntax signal errors and provides correction via
  display of a correct structure
• Semantics signals error and provides admissible
  words
• Completeness of content with respect to R

18
Example

• R Et puisque le rat est un animal qui possède un
  système cardio-vasculaire très semblable à celui
  de lhumain, il est donc permis de tirer les
  mêmes conclusions pour lhumain.
• Q Pourquoi peut-on tirer les mêmes conclusions
  pour l'humain et pour le rat ?
• S Le cardio-vasculaire dun rat sapproche à une
  personne humain.

• Start by creating wordlists
• Words of S absent in R
• ? sapprocher, personne
• Words of R absent in S
• ? animal, posséder, système, semblable
• Common words
• ? rat, cardio-vasculaire, humain

19
Parse (partial output)

• R
• SUBJ(ltestêtre2gt,ltratrat1gt)
• OBJ_SPRED(ltestêtre2gt, ltanimalanimal4gt)
• OBJ(ltpossèdeposséder6gt, ltsystèmesystème8gt)
• COREF_REL(ltanimalanimal4gt, ltquiqui5gt)
• NMOD_POSIT1(ltsystèmesystème8gt,
  ltcardio-vasculairecardio-vasculaire9gt)
• NMOD_POSIT1(ltsystèmesystème8gt,
  ltsemblablesemblable11gt)
• NMOD_POSIT1(ltceluicelui13gt, lthumainhumain16gt)
• ADJMOD(ltsemblablesemblable11gt,
  ltceluicelui13gt)
• PREPOBJ(lthumainhumain16gt, ltdede14gt)
• PREPOBJ(ltceluicelui13gt, ltàà12gt)
• DETERM(ltsystèmesystème8gt, ltunun7gt)
• DETERM(ltanimalanimal4gt, ltunun3gt)
• DETERM_DEF(ltratrat1gt, ltlele0gt)
• CONNECT_REL(ltpossèdeposséder6gt, ltquiqui5gt)

• S
• SUBJ(ltapprocheapprocher53gt, ltcardio-vasculairec
  ardio-vasculaire48gt)
• OBJ(ltapprocheapprocher53gt, ltpersonnepersonne56
  gt)
• VMOD_POSIT1(ltapprocheapprocher53gt, ltuneun55gt)
• NMOD_POSIT1(ltcardio-vasculairecardio-vasculaire4
  8gt, ltratrat51gt)
• PREPOBJ(ltuneun55gt, ltàà54gt)
• PREPOBJ(ltratrat51gt, ltd'de49gt)
• DETERM(ltratrat51gt, ltunun50gt)

20
Comparison (partial)

• SUBJ(lt OBJ(ltapprocheapprocher53gt,ltpersonneperso
  nne56gt) gt,ltNMOD_POSIT1(ltcardio-vasculairecardio-
  vasculaire48gt,ltratrat51gt)gt)
• SUBJ(ltOBJ_SPRED(ltestêtre2gt,lt COREF_REL(ltanimala
  nimal4gt,lt CONNECT_REL(lt OBJ(ltpossèdeposséder6gt,
  lt NMOD_POSIT1(lt NMOD_POSIT1(ltsystèmesystème8gt,ltc
  ardio-vasculairecardio-vasculaire9gt)
  gt,ltADJMOD(ltsemblablesemblable11gt,lt
  NMOD_POSIT1(ltceluicelui13gt,lthumainhumain16gt)
  gt)gt)gt) gt,ltquiqui5gt) gt) gt)gt,ltratrat1gt)
• Consider structures to assess for syntactic
  correctness
• Heuristics to put some structures into
  equivalence
• ? Here, Le SCV du rat and Le rat est un animal
  qui possède un SCV are equivalent, but expressed
  in different syntactic structures

21
Synonyms

• - ltRESULTSgt
• - ltDEFgt
• - ltE L"fr"gt
•   ltWgtsemblablelt/Wgt
•   ltSW ENC"n"gt00730065006D0062006C00610062006C0065
  lt/SWgt
•   ltPgtadj.lt/Pgt
•   lt/Egt
• - ltDF N"1"gt
•   ltWgtqui ressemble à comparable, similaire.lt/Wgt
•   lt/DFgt
•   lt/DEFgt
• - ltDEFgt
• ..
• - ltWD L"fr" W"2"gt
•   ltW L"fr"gtapprochantlt/Wgt
•   ltSW ENC"n"gt0061007000700072006F006300680061006E
  0074lt/SWgt
•   lt/WDgt

• To retrieve a synonymy relation
• Produce derivations for all words in List 1
• Find matches in a synonymy basis under entries
  for words of List 2
• The search process can be repeated at most once,
  using ltDEFgt lexemes
• ? semblable  approchant
• OR
• ? ressembler à sapprocher de
• 4. In this way we can catch both synonyms and
  attached prepositions.

22
Conclusions and future work

• Automation is possible, with 2 main restrictions

•  bad faith  answers
• Lexical errors based on homonymy
• ? as long as S contains elements of answer, S can
  be evaluated
• Future Work to assemble the parts through
  software engineering !
