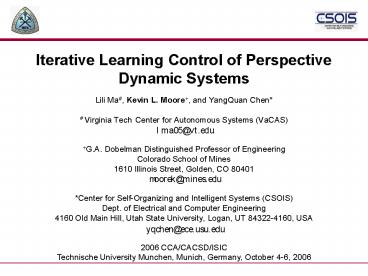

Iterative Learning Control of Perspective Dynamic Systems

1
Iterative Learning Control of Perspective Dynamic
Systems

• Lili Ma, Kevin L. Moore, and YangQuan Chen
• Virginia Tech Center for Autonomous Systems
  (VaCAS)
• G.A. Dobelman Distinguished Professor of
  Engineering
• Colorado School of Mines
• 1610 Illinois Street, Golden, CO 80401
• Center for Self-Organizing and Intelligent
  Systems (CSOIS)
• Dept. of Electrical and Computer Engineering
• 4160 Old Main Hill, Utah State University, Logan,
  UT 84322-4160, USA

2006 CCA/CACSD/ISIC Technische University
Munchen, Munich, Germany, October 4-6, 2006
TexPoint fonts used in EMF AAAAAAAAAAAAAA
2
Colorado School of Mines Located in Golden,
Colorado, USA 10 miles West of Denver
CSM sits in the foothills of the Rocky Mountains

• CSM has about 300 faculty and 4000 students
• CSM is a public research institution devoted to
  engineering and applied science, especially
• Discovery and recovery of resources
• Conversion of resources to materials and energy
• Utilization in advanced processes and products
• Economic and social systems necessary to ensure

• prudent and provident use of resources in a
• sustainable global society

3
Motivation

• To use visual feedback measurements instead of
  encoder information for ILC.
• The motion dynamics of the object are assumed to
  be linear.
• The visual measurements are homogeneous since a
  perspective camera model is used.
• Notations
• ILC Iterative learning control
• PDS Perspective dynamic system

4
ILC Consider Systems that Execute the Same
Trajectory Over and Over
Step 1 Robot at rest, waiting for workpiece.
Step 2 Workpiece moved into position.
Step 3 Robot moves to desired location
and executes its task.
Step 4 Robot returns to rest and
waits for next workpiece.
5
Errors are Repeated WhenTrajectories are
Repeated

• A typical joint angle trajectory for the
  example might look like this
• Each time the system is operated it will see
  the same overshoot, rise time,
• settling time, and steady-state error.
• Iterative learning control attempts to improve
  the transient response by
• adjusting the input to the plant during future
  system operation based on the
• errors observed during past operation.

6
Iterative Learning Control
7
An ILC Example
Target Path
Laser Pointer
Camera
Image Capture ILC Algorithm Motor Control
(two computers)
8
Gimbal Motion (k 1)
Gimbal Motion (k 4)
9
Introduction PDS
A perspective dynamic system is described
by where the projective observation function
is defined as where is the homogeneous
line spanned by the nonzero vector
. The set is defined as
A PDS is a linear system with homogeneous
observation.
10
Introduction PDS (cont.)
An example of the PDS when the object is moving
according to an affine motion can be described
as with and
the outputs defined to be where
3-D position of the moving
object in the camera-centered 3D
space. projection in the camera
frame that can be derived from
observations on the image plane.
11
Problem of Concern

• Consider an object that is moving along a 3-D
  trajectory in camera-centered 3-D space whose
  motion is observed via a camera.
• Suppose that the motion is iterative.
• THE QUESTION OF CONCERN is whether the
  observations on the image plane suffice to refine
  the 3-D motion trajectory from trial-to-trial.

Our preliminary study shows that the homogeneous
output from the image plane can help to improve
the system performance under the IIC precondition.
IIC Identical Initial Condition
12
Problem Formulation

• Given
• Object moving according to a known, iterative
  motion.
• Desired observed trajectory on the image plane of
  a stationary camera.
• Desired actual trajectory in the object space.
• Calibrated camera whose parameters, such as the
  camera's intrinsic parameters, distortion
  coefficients, and focal length, are known.
• Task
• Track desired trajectories (both in 2-D and 3-D)
  in the presence of repeatable uncertainties,
  where the uncertainties could arise from
  calibration of the camera, measurements on the
  image plane, and about controlling the plant.
• Additional Condition
• With or without the identical initial condition
  (IIC).

13
Preliminary Study

• Consider a 2-D ILC-PDS system described as
  follows
• Motion Dynamics
• Homogeneous Output
• where the index denotes the trial number.
• Control Problem Control the plant to track a
  desired 2-D trajectory,
• by adjusting the input
• from trial to trial, using information
• which is the information available from the
  image plane.

14
Intuitive Idea
Before theoretically proving the feasibility, the
following simulations are conducted to give an
intuitive idea of the problem.

• Motion Dynamics
• ILC Updating Law
• Other Selections
• Notice that
• The learning rates are chosen by trial and error.
• No knowledge of the plant dynamics ( ) are
  used.
• Derivative of the error is used in the updating
  law.

15
Simulation Results
With IIC
Without IIC
1-D Observation
Tracking in 2-D object space is achieved.
Tracking in 2-D object space is NOT achieved.
2-D Object Space
Results presented are after 41th iterations.
16
Simulation Results (cont.)
With IIC
Without IIC
Error does not go to zero.
shows a monotone convergence in both
cases. The error does not go to zero when the IIC
condition is not satisfied.
17
Corollary
References
1 I. Toshiharu Sugie Toshiro Ono, An
Iterative Learning Control Law for Dynamical
Systems, Automatica, vol. 27, no. 4, pp.
729-732, 1991
18
Theory
19
Sketched Proof
20
Conclusions

• Conclusions
• The problem of iterative learning control for
  perspective dynamic systems is formulated.
• For 2-D motion with 1-D perspective measurements,
  ILC can be used to force the system to a desired
  motion using only the perspective measurement,
  provided that the identical initial condition
  (IIC) is satisfied.
• When the IIC condition is violated, the above
  statement is no longer true.
• Question
• If the IIC condition can be relaxed and at what
  expense?
• Next Step
• Experiment

21
References

• Kevin L. Moore, Iterative Learning Control An
  Expository Overview'', Applied and Computational,
  Controls, Signal Processing, and Circuits, vol.
  1, no.1, pp. 425-488, 1998.
• Bijoy K. Ghosh and Clyde F. Martin, Homogeneous
  Dynamical Systems Theory'', IEEE Transactions on
  Automatic Control, vol. 47, no. 3, pp. 462-472,
  2002.
• Bijoy K. Ghosh and Hiroshi Inaba and Satoru
  Takahashi, Identification of Riccati Dynamics
  Under Perspective and Orthographic
  Observations'', IEEE Transactions on Automatic
  Control, vol. 45, no. 7, pp. 1267-1278, 2000.
• Mrdjan Jankovic and Bijoy K. Ghosh, Visually
  Guided Ranging from Observations of Points, Lines
  and Curves via An Identifier Based nonlinear
  Observer'', vol. 25, pp. 63-73, 1995.
• Joao P. Hespanha, State Estimation and Control
  for Systems with Perspective Outputs'', CDC,
  2002.
• Lili Ma, Vision-Based Measurements for Dynamic
  Systems and Control, Ph.D. dissertation, Utah
  State University, Dec. 2004.
• I. Toshiharu Sugie Toshiro Ono, An Iterative
  Learning Control Law for Dynamical Systems,
  Automatica, vol. 27, no. 4, pp. 729-732, 1991.
