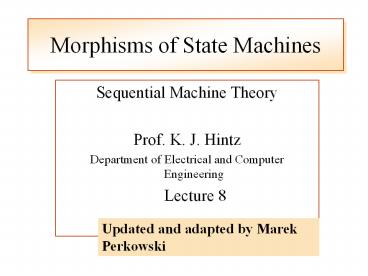

Morphisms of State Machines

1
Morphisms of State Machines

• Sequential Machine Theory
• Prof. K. J. Hintz
• Department of Electrical and Computer Engineering
• Lecture 8

Updated and adapted by Marek Perkowski
2
Notation

3
Free SemiGroup

4
String or Word

5
Concatenation

6
Partition of a Set

• Properties
• pi are called pi-blocks of a partition, ?(A)

7
Types of Relations

• Partial, Binary, Single-Valued System
• Groupoid
• SemiGroup
• Monoid
• Group

8
Partial Binary Single-Valued

9
Groupoid

• Closed Binary Operation
• Partial, Binary, Single-Valued System with
• It is defined on all elements of S x S
• Not necessarily surjective

10
SemiGroup

• An Associative Groupoid
• Binary operation, e.g., multiplication
• Closure
• Associative
• Can be defined for various operations, so
  sometimes written as

11
Closed Binary Operation

• Division Is Not a Closed Binary Operation on the
  Set of Counting Numbers
• 6/3 2 counting number
• 2/6 ? not a counting number
• Division Is Closed Over the Set of Real Numbers.

12
Monoid

• Semigroup With an Identity Element, e.

13
Group

• Monoid With an Inverse

14
Morphisms

• Homomorphism (JJ)
• A correspondence of a set D (the domain) with a
  set R (the range) such that each element of D
  determines a unique element of R single-valued
  and each element of R is the correspondent of at
  least one element of D.
• and...

15
Homomorphism

• If operations such as multiplication, addition,
  or multiplication by scalars are defined for D
  and R, it is required that these correspond...
• and...

16
Homomorphism

• If D and R are groups (or semigroups) with the
  operation denoted by and
• x corresponds to x and
• y corresponds to y
• then
• x y must correspond to x y

Product of Correspondence Correspondence of
product
17
Homomorphism

18
Homomorphism

• Correspondence must be
• Single-valued therefore at least a partial
  function
• Surjective each y in the R has at least one x
  in the D
• Non-Injective not one-to-one else isomorphism

19
Endomorphism

• A morphism which maps back onto itself
• The range, R, is the same set as the domain, D,
  e.g., the real numbers.

morphism
RD
20
SemiGroup Homomorphism

21
SemiGroup Homomorphism

22
SmGp. HmMphsm. Example

Larsen, Intro to Modern Algebraic Concepts, p. 53
23
SmGp. HmMphsm. Example

• Is the relation
• single-valued?
• Each symbol of D maps to only one symbol of R
• surjective?
• Each symbol of R has a corresponding element in D
• not-injective?
• e and g4 correspond to the same symbol, 0

24
SmGp. HmMphsm. Example

• Do the results of operations correspond?

same
25
Monoid Homomorphism
26
Isomorphism

• An Isomorphism Is a Homomorphism Which Is
  Injective
• Injective One-to-One Correspondence
• A relation between two sets such that pairs can
  be removed, one member from each set until both
  sets have been simultaneously exhausted

27
SemiGroup Isomorphism

Injective Homomorphism
28
Isomorphism Example

• Define two groupoids
• non-associative semigroups
• groups without an inverse or identity element
• SG1 A1 positive real numbers
• 1 multiplication
• SG2 A2 positive real numbers
• 2 addition

Ginzberg, pg 10
29
Isomorphism Example

30
SemiGroup Isomorphism

31
Machine Isomorphisms

• Input-output isomorphism, but usually abbreviated
  to just isomorphism
• An I/O isomorphism exists between two machines,
  M1 and M2 if there exists a triple

32
Machine Isomorphisms

33
Machine Isomorphisms

• Interpret

34
Machine State Isomorphism

35
Machine Output Isomorphism

36
Homo- vice Iso- Morphism

• Reduction Homomorphism
• Shows behavioral equivalence between machines of
  different sizes
• Allows us to only concern ourselves with
  minimized machines (not yet decomposed, but
  fewest states in single machine)
• If we can find one, we can make a minimum state
  machine

37
Homo- vice Iso- Morphism

• Isomorphism
• Shows equivalence of machines of identical, but
  not necessarily minimal, size
• Shows equivalence between machines with different
  labels for the inputs, states, and/or outputs

38
Block Diagram Isomorphism

I1
I2
O2
O1
M2
O1
M1
I1
39
Block Diagram Isomorphism

40
Block Diagram Isomorphism

• which is the same as the preceding state diagram
  and block diagram definitions therefore M1 and M2
  are Isomorphic to each other

41
Machine Information

• Since the Inputs and Outputs Can Be Mapped
  Through Isomorphisms Which Are Independent of the
  State Transitions, All of the State Change
  Information Is Maintained in the Isomorphic
  Machine
• Isomorphic Machines Produce Identical Outputs

42
Output Equivalence

43
Identity Machine Isomorphism

44
Inverse Machine Isomorphism

45
Machine Equivalence

46
Machine Homomorphism

47
Machine Homomorphism

• If alpha is injective, then have isomorphism
• State Behavior assignment,
• Realization of M1
• If alpha not injective
• Reduction Homomorphism

48
Behavioral Equivalence

49
Behavioral Equivalence
