Recursive and r.e. language classes

1

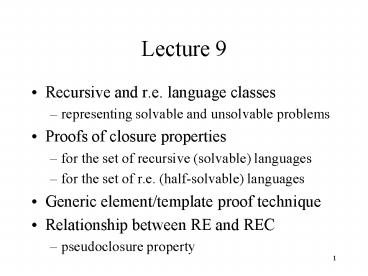

Lecture 9

• Recursive and r.e. language classes
• representing solvable and unsolvable problems
• Proofs of closure properties
• for the set of recursive (solvable) languages
• for the set of r.e. (half-solvable) languages
• Generic element/template proof technique
• Relationship between RE and REC
• pseudoclosure property

2
RE and REC language classes

• REC
• A solvable language is commonly referred to as a
  recursive language for historical reasons
• REC is defined to be the set of solvable or
  recursive languages
• RE
• A half-solvable language is commonly referred to
  as a recursively enumerable or r.e. language
• RE is defined to be the set of r.e. or
  half-solvable languages

3
Why study closure properties of RE and REC?

• It tests how well we really understand the
  concepts we encounter
• language classes, REC, solvability,
  half-solvability
• It highlights the concept of subroutines and how
  we can build on previous algorithms to construct
  new algorithms
• we dont have to build our algorithms from
  scratch every time

4
Example Application

• Setting
• I have two programs which can solve the language
  recognition problems for L1 and L2
• I want a program which solves the language
  recognition problem for L1 intersect L2
• Question
• Do I need to develop a new program from scratch
  or can I use the existing programs to help?
• Does this depend on which languages L1 and L2 I
  am working with?

5
Closure Properties of REC

• We now prove REC is closed under two set
  operations
• Set Complement
• Set Intersection
• In these proofs, we try to highlight intuition
  and common sense

6
Quick Questions

• What does the following statement mean?
• REC is closed under the set complement operation
• How do you prove a language L is in REC?

7
Set Complement Example

• Even the set of even length strings over 0,1
• Complement of Even?
• Odd the set of odd length strings over 0,1
• Is Odd recursive (solvable)?
• How is the program P which solves Odd related to
  the program P which solves Even?

8
Set Complement Lemma

• If L is a solvable language, then L complement is
  a solvable language
• Rewrite this in first-order logic
• Proof
• Let L be an arbitrary solvable language
• First line comes from For all L in REC
• Let P be the C program which solves L
• P exists by definition of REC

9
proof continued

• Modify P to form P as follows
• Identical except at very end
• Complement answer
• Yes -gt No
• No -gt Yes
• Program P solves L complement
• Halts on all inputs
• Answers correctly
• Thus L complement is solvable
• Definition of solvable

10
P Illustration
YES
P
Input x
No
11
Code for P

• bool main(string y)
• if (P (y)) return no else return yes
• bool P (string y) / details unknown /

12
Set Intersection Example

• Even the set of even length strings over 0,1
• Mod-5 the set of strings of length a multiple of
  5 over 0,1
• What is Even intersection Mod-5?
• Mod-10 the set of strings of length a multiple
  of 10 over 0,1
• How is the program P3 (Mod-10) related to
  programs P1 (Even) and P2 (Mod-5)

13
Set Intersection Lemma

• If L1 and L2 are solvable languages, then L1
  intersection L2 is a solvable language
• Rewrite this in first-order logic
• Note we have two languages because intersection
  is a binary operation
• Proof
• Let L1 and L2 be arbitrary solvable languages
• Let P1 and P2 be programs which solve L1 and L2,
  respectively

14
proof continued

• Construct program P3 from P1 and P2 as follows
• P3 runs both P1 and P2 on the input string
• If both say yes, P3 says yes
• Otherwise, P3 says no
• P3 solves L1 intersection L2
• Halts on all inputs
• Answers correctly
• L1 intersection L2 is a solvable language

15
P3 Illustration
Yes/No
P1
Yes/No
P2
16
Code for P3

• bool main(string y)
• if (P1(y) P2(y)) return yes
• else return no
• bool P1(string y) / details unknown /
• bool P2(string y) / details unknown /

17
Other Closure Properties

• Unary Operations
• Language Reversal
• Kleene Star
• Binary Operations
• Set Union
• Set Difference
• Symmetric Difference
• Concatenation

18
Closure Properties of RE

• We now try to prove RE is closed under the same
  two set operations
• Set Intersection
• Set Complement
• In these proofs
• We define a more formal proof methodology
• We gain more intuition about the differences
  between solvable and half-solvable problems

19
Quick Questions

• What does the following statement mean?
• RE is closed under the set intersection operation
• How do you prove a language L is in RE?

20
RE Closed Under Set Intersection

• First-order logic formulation?
• For all L1, L2 in RE, L1 intersect L2 in RE
• For all L1, L2 ((L1 in RE) and (L2 in RE) --gt
  ((L1 intersect L2) in RE)
• What this really means
• Let Li denote the ith r.e. language
• L1 intersect L1 is in RE
• L1 intersect L2 is in RE
• ...
• L2 intersect L1 is in RE
• ...

21
Generic Element or Template Proofs

• Since there are an infinite number of facts to
  prove, we cannot prove them all individually
• Instead, we create a single proof that proves
  each fact simultaneously
• I like to call these proofs generic element or
  template proofs

22
Basic Proof Ideas

• Name your generic objects
• In this case, we use L1 and L2
• Only use facts which apply to any relevant
  objects
• We will only use the fact that there must exist
  P1 and P2 which half-solve L1 and L2
• Work from both ends of the proof
• The first and last lines are usually obvious, and
  we can often work our way in

23
Set Intersection Example

• Let L1 and L2 be arbitrary r.e. languages

• There exist P1 and P2 s.t. Y(P1)L1 and Y(P2)L2
• By definition of half-solvable languages

• Construct program P3 from P1 and P2
• Note, we can assume very little about P1 and P2
• Prove Program P3 half-solves L1 intersection L2

• There exists a program P which half-solves L1
  intersection L2

• L1 intersection L2 is an r.e. language

24
Constructing P3

• What did we do in the REC setting?
• Build P3 using P1 and P2 as subroutines
• We just have to be careful now in how we use P1
  and P2

25
Constructing P3

• Run P1 and P2 in parallel
• One instruction of P1, then one instruction of
  P2, and so on
• If both halt and say yes, halt and say yes
• If both halt but both do not say yes, halt and
  say no
• Note, if either never halts, P3 never halts

26
P3 Illustration
Yes/No/-
P1
Yes/No/-
P2
27
Code for P3

• bool main(string y)
• parallel-execute(P1(y), P2(y)) until both
  return
• if ((P1(y) P2(y)) return yes
• else return no
• bool P1(string y) / details unknown /
• bool P2(string y) / details unknown /

28
Proving P3 Is Correct

• 2 steps to showing P3 half-solves L1 intersection
  L2
• For all x in L1 intersection L2, must show P3
• accepts x
• halts and says yes
• For all x not in L1 intersection L2, must show P3

• rejects x or
• loops on x or
• crashes on x

29
Part 1 of Correctness Proof

• P3 accepts x in L1 intersection L2
• Let x be an arbitrary string in L1 intersection
  L2
• Note, this subproof is a generic element proof
• P1 accepts x
• L1 intersection L2 is a subset of L1
• P1 accepts all strings in L1
• P2 accepts x
• P3 accepts x
• We reach the AND gate because of the 2 previous
  facts
• Since both P1 and P2 accept, AND evaluates to YES

30
Part 2 of Correctness Proof

• P3 does not accept x not in L1 intersection L2
• Let x be an arbitrary string not in L1
  intersection L2
• By definition of intersection, this means x is
  not in L1 or L2
• Case 1 x is not in L1
• 2 possibilities
• P1 rejects (or crashes on) x
• One input to AND gate is No
• Output cannot be yes
• P3 does not accept x
• P1 loops on x
• One input never reaches AND gate
• No output
• P3 loops on x
• P3 does not accept x when x is not in L1
• Case 2 x is not in L2
• Essentially identical analysis
• P3 does not accept x not in L1 intersection L2

31
RE closed under set complement?

• First-order logic formulation?
• For all L in RE, L complement in RE
• For all L (L in RE) --gt ((L complement) in RE)
• What this really means
• Let Li denote the ith r.e. language
• L1 complement is in RE
• L2 complement is in RE
• ...

32
Set complement proof overview

• Let L be an arbitrary r.e. language

• There exists P s.t. Y(P)L
• By definition of r.e. languages

• Construct program P from P
• Note, we can assume very little about P
• Prove Program P half-solves L complement

• There exists a program P which half-solves L
  complement

• L complement is an r.e. language

33
Constructing P

• What did we do in recursive case?
• Run P and then just complement answer at end
• Accept -gt Reject
• Reject -gt Accept
• Does this work in this case?
• No. Why not?
• Accept-gtReject and Reject -gtAccept ok
• Problem is we need to turn Loop-gtAccept
• this requires solving the halting problem

34
What can we conclude?

• Previous argument only shows that the approach
  used for REC does not work for RE
• This does not prove that RE is not closed under
  set complement
• Later, we will prove that RE is not closed under
  set complement

35
Other closure properties

• Unary Operations
• Language reversal
• Kleene Closure
• Binary operations
• union
• concatenation
• Not closed
• Set difference

36
Closure Property Applications

• How can we use closure properties to prove a
  language LT is r.e. or recursive?
• Unary operator op (e.g. complement)
• 1) Find a known r.e. or recursive language L
• 2) Show LT L op
• Binary operator op (e.g. intersection)
• 1) Find 2 known r.e or recursive languages L1 and
  L2
• 2) Show LT L1 op L2

37
Closure Property Applications

• How can we use closure properties to prove a
  language LT is not r.e. or recursive?
• Unary operator op (e.g. complement)
• 1) Find a known not r.e. or non-recursive
  language L
• 2) Show LT op L
• Binary operator op (e.g. intersection)
• 1) Find a known r.e. or recursive language L1
• 2) Find a known not r.e. or non-recursive
  language L2
• 2) Show L2 L1 op LT

38
Example

• Looping Problem
• Input
• Program P
• Input x for program P
• Yes/No Question
• Does P loop on x?
• Looping Problem is unsolvable
• Looping Problem complement H

39
Closure Property Applications

• Proving a new closure property
• Theorem Unsolvable languages are closed under
  set complement
• Let L be an arbitrary unsolvable language
• If Lc is solvable, then L is solvable
• (Lc)c L
• Solvable languages closed under complement
• However, we are assuming that L is unsolvable
• Therefore, we can conclude that Lc is unsolvable
• Thus, unsolvable languages are closed under
  complement

40
Pseudo Closure Property

• Lemma If L and Lc are half-solvable, then L is
  solvable.
• First-order logic?
• For all L in RE, (Lc in RE) --gt (L in REC)
• For all L, ((L in RE) and (Lc in RE)) --gt (L in
  REC)
• Question What about Lc?
• Also solvable because REC closed under set
  complement

41
High Level Proof

• Let L be an arbitrary language where L and Lc are
  both half-solvable
• Let P1 and P2 be the programs which half-solve L
  and Lc, respectively
• Construct program P3 from P1 and P2
• Argue P3 solves L
• L is solvable

42
Constructing P3

• Problem
• Both P1 and P2 may loop on some input strings,
  and we need P3 to halt on all input strings
• Key Observation
• On all input strings, one of P1 and P2 is
  guaranteed to halt. Why?
• Nature of complement operation

43
Illustration
S
44
Construction and Proof

• P3s Operation
• Run P1 and P2 in parallel on the input string x
  until one accepts x
• Guaranteed to occur given previous argument
• Also, only one program will accept any string x
• IF P1 is the accepting machine THEN yes ELSE no

45
P3 Illustration
Yes
P1
Yes
P2
46
Code for P3

• bool main(string y)
• parallel-execute(P1(y), P2(y)) until one returns
  yes
• if (P1(y)) return yes
• if (P2(Y)) return no
• bool P1(string y) / details unknown /
• bool P2(string y) / details unknown /

47
Question

• What if P2 rejects the input?
• Our description of P3 doesnt describe what we
  should do in this case.
• If P2 rejects the input, then the input must be
  in L
• This means P1 will eventually accept the input.
• This means P3 will eventually accept the input.

48
RE and REC
All Languages
RE
49
RE and REC
All Languages
RE
Are there any languages L in RE - REC?
