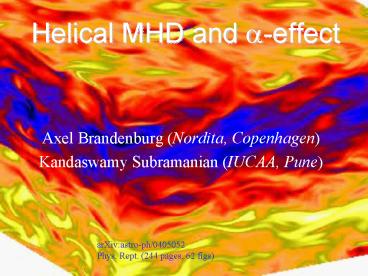

Helical MHD and a-effect

• Axel Brandenburg (Nordita, Copenhagen)
• Kandaswamy Subramanian (IUCAA, Pune)

arXivastro-ph/0405052 Phys. Rept. (244 pages, 62
figs)
2
MHD equations
Magn. Vector potential
Induction Equation
Momentum and Continuity eqns
Viscous force
3
Vector potential

• BcurlA, advantage divB0
• JcurlBcurl(curlA) curl2A
• Not a disadvantage consider Alfven waves

B-formulation
A-formulation
2nd der once is better than 1st der twice!
4
Pencil Code

• Started in Sept. 2001 with Wolfgang Dobler
• High order (6th order in space, 3rd order in
  time)
• Cache memory efficient
• MPI, can run PacxMPI (across countries!)
• Maintained/developed by many people (CVS!)
• Automatic validation (over night or any time)
• Max resolution so far 10243

5
Helical versus nonhelical
Kida et al. (1991) helical forcing, but no
inverse cascade
Inverse cascade only when scale separation
6
Allowing for scale separation
Position of the peak compatible with
No inverse cascade in kinematic regime
Decomposition in terms of Chandrasekhar-Kendall-Wa
leffe functions
7
Kazantsev spectrum (kinematic)
Opposite limit, no scale separation, forcing at
kf1-2
Kazantsev spectrum confirmed (even for n/h1)
Spectrum remains highly time-dependent
8
256 processor run at 10243
EM(k) not peaked at resistive scale, as
previously claimed instead kpeakRm,crit1/2 kf
6kf
9
Structure function exponents
agrees with She-Leveque
third moment
10
Bottleneck effect 1D vs 3D spectra
Compensated spectra (1D vs 3D)
11
Relation to laboratory 1D spectra
12
Bottleneck in the literature
Porter, Pouquet, Woodward (1998) using PPM,
10243 meshpoints
Kaneda et al. (2003) on the Earth simulator,
40963 meshpoints
13
Helical MHD turbulence

• Helically forced turbulence (cyclonic events)
• Small large scale field grows exponentially
• Past saturation slow evolution
• ? Explained by magnetic helicity equation

14
Animations
15
Effects of magnetic helicity conservation
Early times h0 important
Late times steady state
By the time a steady state is reached net
magnetic helicity is generated
16
Slow-down explained by magnetic helicity
conservation
molecular value!!
17
Connection with a effect writhe with internal
twist as by-product
clockwise tilt (right handed)
W
? left handed internal twist
Yousef Brandenburg AA 407, 7 (2003)
18
Internal twist as feedback on a (Pouquet, Frisch,
Leorat 1976)
How can this be used in practice?
Need a closure for ltj.bgt
19
Rm dependence of PFL formula
St t urms kf not suppressed in Rm dependent
fashion
a is suppressed in Rm dependent fashion
20
Revised nonlinear dynamo theory(originally due
to Kleeorin Ruzmaikin 1982)
Two-scale assumption
Production of large scale helicity comes at the
price of producing also small scale magnetic
helicity
21
Express in terms of a
? Dynamical a-quenching (Kleeorin Ruzmaikin
1982)
no additional free parameters
Steady limit consistent with VC92
(algebraic quenching)
22
Is ht quenched?can be in models with shear
Larger mean field
Slow growth but short cycles Depends
on assumption about ht-quenching!
23
Additional effect of shear
Negative shear
Positive shear
Consistent with g3 and
Kitchatinov et al (1996), Kleeorin Rogachevskii
(1999)
24
Effect of surface losses of current helicity

• Large scale (LS) field
• Drainage on LS dynamo
• Rm-dependent cutoff
• Shortens saturation time
• Small scale (SS) field
• Enhancement of LS dynamo

25
The need for small scale losses
initial slope
Numerical experiment remove field for kgt4 every
1-3 turnover times

• large scale losses
• lower saturation level

2) higher saturation level 3) still slow time
scale
26
How do magnetic helicity losses look like?
N-shaped (north) S-shaped (south)
(the whole loop corresponds to CME)
27
Sigmoidal filaments
(from S. Gibson)
28
Examples ofhelical structures
29
Simulating solar-like differential rotation
30
Results for current helicity flux
First order smoothing, and tau approximation
Vishniac Cho (2001
Expected to be finite on when there is shear
31
Conclusions

• Homogeneous dynamos saturate resistively
• Entirely magnetic helicity controlled
• Inhomogeneous dynamo
• Open surface, equator
• Still many issues to be addressed
• Current helicity flux important
• Finite if there is shear
• Avoid magnetic helicity, use current helicity
