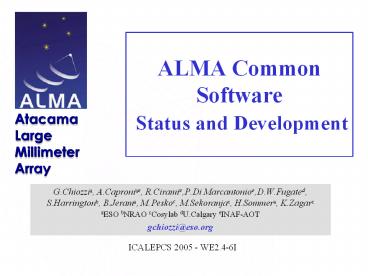

ALMA Common Software Status and Development

1
ALMA Common Software Status and Development

• G.Chiozzia, A.Caproniae, R.Ciramie,P.Di
  Marcantonioe,D.W.Fugated, S.Harringtonb,
  B.Jerama, M.Peskoc, M.Sekoranjac, H.Sommera,
  K.Zagarc aESO bNRAO cCosylab dU.Calgary
  eINAF-AOT
• gchiozzi_at_eso.org

2
Contents

• What is ACS?
• Where are we?
• Main features
• Platforms
• Highlights of the last two years
• Projects and community
• Conclusion

• Component/Container model
• Event Handling and Notification Channel
• Threading support
• Real time
• Bulk Data
• Simulation
• Alarm System
• Task and parameters
• GUIs
• Benchmarking

3
What is ACS?

• ACS is a software infrastructure for the
  development of distributed systems based on the
  Component/Container paradigm
• common application framework and design patterns,
  not just libraries
• well tested software that avoids duplication
• make upgrades and maintenance reasonable
• common development environment and tools

4
Where are we?

• Developed for ALMA and used by several other
  projects.
• ACS is based on a kernel of software contributed
  by cosylab and developed for ANKA. Our
  collaboration started in Trieste at ICALEPCS
  1999.
• ½ of allocated development effort spent until now
• Total allocated 25 man years additional
  external contribution (10).
• 9th release
• Extensively used in the field
• ALMA Test Interferometer and labs
• ALMA software integrations
• Other projects

5
Main Features

• ACS provides the basic services needed for object
  oriented distributed computing. Among these
• Transparent remote object invocation
• Object deployment and location based on a
  container/component model
• Distributed error and alarm handling
• Distributed logging
• Distributed events
• The ACS framework is based on CORBA and built on
  top of free CORBA implementations.

6
Supported Platforms

• Operating system Linux, RH-E other flavours
• Real-time RTAI and VxWorks
• Languages C, JAVA, Python
• CORBA middleware TAO ( ACE) (C), JacORB
  (Java), Omniorb (Python), CORBA services.
• Embedded ACS Container PC104, Debian, 300Mhz
  Geode, 256MB RAM, 256 MB flash (CosyLAB microIOC)

7
Policy and License LGPL

• The strategy to provide common features to our
  users is
• Use as much as possible open-source tools,
  instead of implementing things.
• Do not reinvent the wheel
• Do not pay for licenses
• Identify the best way to perform a certain task
  among the many possibilities
• Wrap with convenience and unify APIs
• ACS is distributed under LGPL license

8
Highlights of the Last Two Years

• New in ACS for
• developers to use in their code libraries,
  convenience classes, utilities to improve the
  quality of the code
• test/integration/administrators, transparently
  from application code (i.e. in principle
  transparent to Component developers)

9
Component Container Evolution/Cleanup
functional interface observe()
lifecycle interface init() cleanUp()

• Container Services
• Full separation between Container and Container
  Services
• Cleaner interfaces
• Easier to replace Container implementation
• The most important services provided now by the
  ContainerServices are
• Component life cycle
• Plain instantiation of Components not sufficient
• Standard lifecycle state machine introduced for
  the Container to manage Components

container service interface getComponent(CompB)
Logger getLogger()
10
Master Component

• ALMA subsystems interact with the Executive.
• Executive treat all in the same way.
• Lifecycle for subsystems, not only components
• Fits smoothly into acs concept
• each subsystem needs a mastercomponent
• it is a component with a specific interface
• ACS defines the underlying state machine

• Implementation
• a generator (using open-architectureware) maps
  UML to state machines
• generator creates convenience base classes
• state machine has been refined in a couple of
  design iterations
• The introduction of the Master Component has been
  very effective.
• Cost of prototype generator not higher than cost
  of developing the MasterComponent in code

11
Event Handling and Notification Channel

• Events are widely used in ALMA for
  synchronization and asynchronous, -to-
  communication.
• Decoupling of Consumers and Suppliers
• Very easy interface
• Supplier classes
• Consumer classes
• Contract based on IDL data structures.
• Strong naming conventions and checking tools
• Administrative interface
• Quality of service

12
Threading Support

• Many Components have a multi-threaded structure
• Management of threads was a source of problems
• Developed easy-to-use threading classes
• Override a run() method
• Use the thread manager
• Based on ACE Threads in C, concurrent library
  in Java

13
Real-time Support

• VxWorks ? TICS
• Entire LCU in real-time OS
• ACS provides complete Container/Component in
  real-time environment
• Support will probably remain for other projects
  (VLT)

• RTAI ? ALMA
• RT Kernel inside Linux
• Component not real-time ? small time-critical
  functions in Kernel.
• Less code in real-time, but more complex to debug
• ACS provides easy
• Communication with kernel modules
• Logging from kernel modules
• Kernel module management

14
Bulk Data Transfer

• Requirements from the correlator
• 64 MB (megabyte)/sec
• Based on CORBA A/V streaming service
• TAO C implementation
• Very easy interface, based on our use cases
• No CORBA A/V visible

See poster PO1.032-6
15
Simulation

• Why simulation?
• Distributed development
• Features or entire subsystems not yet available
• Test a subsystem in isolation
• Simulation of Components from IDL interface
  spec.
• Dumb default or intelligent simulation

See presentation WE4A.2-5O
16
ACS Alarm System Laser

• Feasibility prototype to re-use CERN Laser Alarm
  System (TH2.3-7O)

The challenge reuse a complete subsystem/service
in a verydifferent software infrastructure
17
Tasks and Parameters

• ACS is used in ALMA also as data reduction
  infrastructure framework
• Requirement data reduction to be started as a
  stand-alone process.A program which starts-up,
  performs processing and shuts down.
• Implementation
• Stand alone executable
• Static container
• Works with and without ACS suite
• Input parameters are complex data sets
• Parameter set definition (xml)
• Parameter set instantiation (xml)
• Validation
• Parsing

18
GUIs
Different projects and differentsubsystems have
different requirements!
19
Performance and Benchmarking

• ACS has performance requirements to satisfy
• Changes to code and upgrade of external libraries
  can affect performance
• Created performance measurements and reporting
  framework
• Performance of Component to Component
  communication, notification channel, logging
  system

http//www.eso.org/almamgr/AlmaAcs/Performance/Be
nchmarkDoc/
20
ACS installations and projects
21
The ACS community
22
ICALEPCS - 2nd ACS Workshop
23
Conclusion

• Core concepts very stable
• In use in ALMA and other projects we have been
  getting a lot of useful feedback
• A lot of work to do
• Most packages available, but features incomplete
• In particular scalability and performance issues.
  We know what to do.
• Make easier the life of developers abstract
  concepts, code generation (ACS code generation
  developed by community).

Having a users base in addition to our main
project has provided important feedback,
cross-fertilization of concepts and ideas and
contributed to software quality
24
Questions ( Answers)
http//www.eso.org/projects/alma/develop/acs
ICALEPCS Papers
MO2.2-1I The ALMA Computing Project Update and Management Approach
WE2.4-6I The ALMA Common Software ACS Status and Developments
WE3A.3-6O The ALMA Telescope Control System
WE4A.2-5O A generic software interface simulator for ALMA common software
PO1.032-6 Transmitting huge amounts of data design implementation and performance of the bulk data transfer mechanism in ALMA ACS
PO1.100-8 Migration from ACS 1.1 to ACS 4 at ANKA
PO2.067-4 ALMA Correlator Real-Time Data Processor
TH2.3-7O First Operational experience with Laser (K.Sigerud, CERN)
25
Reserve slides
26
Performance
Average C throughput 1500 event/s (100 bytes)
Average C throughput 3500 event/s (100 bytes)
