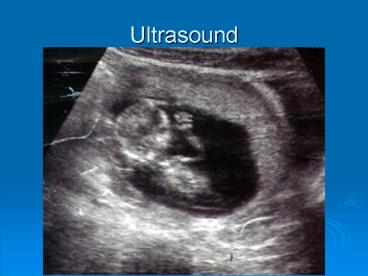

Ultrasound

1
Ultrasound
2
Ultrasound

• Ultrasound uses high frequency sound waves and
  their echoes.
• The ultrasound machine transmits high-frequency
  sound pulses.
• The sound waves hit a boundary between tissues
  (e.g. between fluid and soft tissue, soft tissue
  and bone).
• Some of the sound waves get reflected back to the
  probe, while some travel on further until they
  reach another boundary and get reflected.

3
Ultrasound

• The reflected waves are picked up by the
  transducer and relayed to the machine.
• The machine calculates the distance from the
  transducer to the tissue or organ (boundaries)
  using the speed of sound in tissue and the time
  of the each echo's return.
• The machine displays the distances and
  intensities of the echoes on the screen, forming
  a two dimensional image.

4
Ultrasound

• Transducer sends and receives high frequency
  sound waves
• Transducer must be in contact with structure
  being examined
• Ultrasound gel or obstetric lube used to make
  contact complete.

5
Transducers

• Crystals vibrate at high frequency producing
  sound waves
• The sound waves are transmitted and received by
  the transducer
• The transducer is identified by the crystal
  array.
• The array is the way in which the crystals are
  arranged
• Linear array
• Convex array
• Sector scanner

6
Linear array
7
Convex Array
8
Sector Scanner
9
Sound wave reflection
10
Ultrasound Wave Transmission
Transducer Sends and receives ultrasound waves
WATER
SOFT TISSUE
BONE / AIR / METAL
11
Wave length

• Higher frequency shorter wavelength
• Shorter wavelength better resolution
• Better resolution view smaller objects
  with more detail
• Shorter wavelength less penetration
• Less penetration view objects close to surface
• Rectal exams 5 mgHz transducer
• Transabdominal 3 mgHz transducer

12
Wave length

• Lower frequency Longer wavelength
• Longer wavelength less resolution
• Less resolution less detail
• Longer wavelength more penetration
• More penetration view deeper objects
• Rectal exams 5 mgHz transducer
• Transabdominal 3 mgHz transducer

13
7 mHz
5mHz
3mHz
14
Doppler Ultrasound

• Moving objects are scanned
• Objects moving away produce lower frequency
• Objects moving toward the transducer produce
  higher frequency
• Used to measure blood flow in heart and arteries

15
Doppler Ultrasound
16
3-D ultrasound

• Several two-dimensional images are acquired by
  moving the probes across the body surface or
  rotating inserted probes.
• The two-dimensional scans are then combined by
  specialized computer software to form 3D images.

17
3-D ultrasound
18
Use of ultrasound in mare reproduction

• Pregnancy as early as 10 days
• Twins
• Endometrial cysts
• Follicles
• Ovulation
• CL
• Ovarian tumors

19
Use of ultrasound in mare reproduction

• Uterine edema
• Uterine fluid
• Fetal heartbeat
• Fetal well being
• Fetal sexing
• Placental health
• Guided injection for aborting one twin

20
Day 11 twins
21
Ultrasound Images of Day 10 15 of Pregnancy
Ultrasonic Anatomy of Pregnancy
22
motile equine embryos
Day 12 Embryo Day 14 Embryo
23
Day 20 Embryo
24
Day 24 Embryo
25
Day 30 Embryo
26
Ultrasound Images of Day 15-45 of Pregnancy
27
Uterus
Estrus
Diestrus
28
Development of CL
29
Primary Corpus Luteum
30
Endometrial cyst
31
Granulosa cell tumor
32
Twin Reduction

• http//www.ivis.org/advances/Reproduction_Ball/fet
  al_reduction_ball/chapter_frm.asp?LA1
