Slajd 1

1

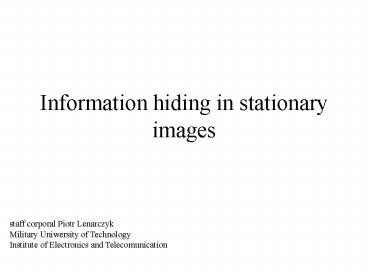

Information hiding in stationary images
staff corporal Piotr Lenarczyk Military
Uniwersity of Technology Institute of
Electronics and Telecomunication
2
Watermarking

• Digital image watermarking means embedding
  information into image in such a way that it is
  imperceptible to a human observer, but can be
  easily detected by special computer algorithm.
• Ingemar J. Cox

3
Applications of watermarking

• Owner Identification
• Proof of Ownership
• Copy Control
• Device Control
• Broadcast Monitoring
• Content Authentication

4
Method of changing Discrete Cosine Transform
coefficients in frueqency domain
5
2-Dimensional Discrete Cosine Transform DCT 2D
M,N 8 m,n discrete index of pixel
position k,l discrete index of DCT coefficient
6
DCT 2D Basis Functions
Q
Basis functions matrices of Discrete Cosine
Transform for block 8x8 pix
2 dimensional Discrete Cosine Transform
coefficients
Standard quantization matrix used in JPEG
algorithm
7
A
Matrix A represents block of 8 x 8 pixel values
Original image
0,55
23,55
B
Matrix B represents DCT 2D calculated on matrix
A
Watermarked image
8
Perceptual transparency
Data payload
Robustness
9
Original picture
Watermarked picture for scalling coefficient k23
Watermarked picture for scalling coefficient
k3000
10
BCH code influence on Bit Error Rate
11
(No Transcript)
12

• Thank you for your attention.
• Questions?
