Title: ANATOMY OF A NEURON


1

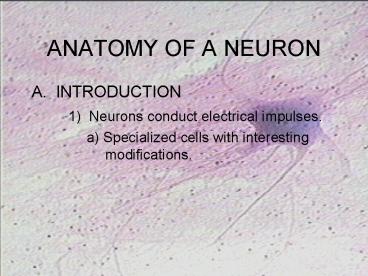

ANATOMY OF A NEURON
  • A. INTRODUCTION
  • 1) Neurons conduct electrical impulses.
  • a) Specialized cells with interesting
    modifications.

2
  • B) STRUCTURE
  • 1) Perikaryon - cell body of the neuron, gray.
  • 2) Dendrites - small branches which bring
    impulses to neuron (afferent).

3
  • 3) Axon - carry impulses away from neuron
    (efferent), white.
  • 4) Myelin sheath -insulating layer around
    axon
  • 5) Schwann cells - produce myelin sheath.
  • 6) Neurilemma - living layer of Schwann cell.

4
  • 7) Nodes of Ranvier - gaps between Schwann
    cells.
  • 8) Telodendria - branches at end of axon.
  • 9) Synaptic knobs - at end of telodendria
  • 10) Collateral branches - split off axon.

5
  • 11) Connective tissue around axon.
  • a) endoneurium around axon.
  • b) perineurium around fasiculus.
  • c) epineurium around multiple fasiculi.

epineurium
6
  • C) CLASSIFICATION OF NEURONS
  • 1) By structure - number of extensions from
    perikaryon.
  • a) multipolar - 1 axon, many dendrites.
  • b) bipolar - 1 axon, 1 dendrite
  • c) pseudounipolar - 1 axon, no dendrite (grew
    together)

7
  • 2) By function
  • a) sensory (afferent) -bring impulses towards
    CNS.
  • b) motor (efferent) - take impulses away from
    CNS.
  • c) internuncial - neurons in the CNS.

8
END
