Todd Bergland

1

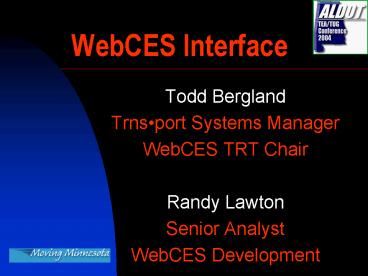

WebCES Interface

• Todd Bergland
• Trnsport Systems Manager
• WebCES TRT Chair
• Randy Lawton
• Senior Analyst
• WebCES Development

2

• Overview of WebCES
• WebCES System Setup
• WebCES in Minnesota
• WebCES templates
• Challenges of the Web
• WebCES Advantages

3
What is Parametric Estimation?

• Parametric Estimation is the technique of
  determining the approximate cost of a planned
  construction job using only the most general
  information currently known about the job.

Trnsport currently provides functionality for
parametric estimation via the CES module
4
What is WebCES?

• CES Web Interface for Parametric Estimation
• Built with the Microsoft .NET framework
• Uses Microsoft IIS 5.0 for Web Server
• Web-based - no client software required for end
  users
• Several sample jobs supplied as templates
  including resurfacing new roadway construction
• Easy to modify and create additional templates
• Shared template area being developed for
  Cloverleaf
• Not necessary to use CES for item estimation to
  take advantage of the parametric capability

5
System Setup

• What does an agency need to implement WebCES?
• Install CES (DB, Application, and Web Server)
• Install a client (to maintain the templates)
• Load sample templates and customize to fit
• Optional take advantage of CES features
• Validate/create new formulas
• Generate agency-specific bid histories
• Create new templates for your agency

6
WebCES for Minnesota

• First Step Quick Start
• Consider Pavement Determination
• Second Step Use as solution for Key Business
  Need
• Consider WebCES as candidate to replace MN/DOT
  LWD
• Third Step Leverage throughout agency
• Start with pilot project in Districts

7
Pavement Determination at MN

• Pavement determinations are performed to decide
  which would be cheapest, concrete or bituminous.
• Pavement Determinations are done about 5-6 times
  a year within the central office. The districts
  also perform their own pavement determinations.
• CES is used now to compute the bituminous items
  and spreadsheets are used to compute the concrete
  items.

8
Pavement Determination at MN

• Candidate for the WebCES interface?
• Review of Asphalt pricing
• Utilize detailed cost sheets with labor,
  equipment, and material
• Would not fit well as a CES parametric job
• Review of Concrete pricing
• Based on spreadsheets with basic formulas and
  table lookups
• Possible candidate for WebCES interface

9
Steps to create a template

• Determine what is used currently
• with respect to inputs (parameters), look-ups,
  calculations (formulas), constants, and etc.
• Also consider what is not really needed or used
• Transpose the spreadsheet to a single list
• Create a sample job in CES for review
• Validate layout, groupings, parameters, etc.
• Add help and determine what different versions of
  templates may be needed

10
Review Spreadsheet
11
Breakdown into Elements
12
Transpose into vertical list
13
Enter into CES using Client
14
Review from Web Interface
15
Result of evaluation

• Were excited about sample job because
• Decided to proceed and create a set of templates
• Enthusiasm about new feature
• Candidate for the WebCES interface

YES!
16
Notes on functionality

• Worked around some limitations
• Formulas restricted to 254 characters
• Consider enhancement to widen columns
• IF is statement functional but wordy for
  lookups
• Consider adding specific function for Case and/or
  LookUp functionality.

17
Replacement for MN/DOT LWD ?
18
Current LWD Screen
19
Current LWD Screen
20
Current LWD Screen
21
Pilot project in Districts

• Selected two districts to pilot Web CES for
  replacement of LWD
• Fully implement Web CES statewide

22
DEMO - SEARCH
23
DEMO - TEMPLATE
24
Challenges for Trnsport with the Web

• Inconsistencies between browsers
• Support of the Browsers Back button
• Trade-offs for browser vs. dedicated interfaces
• Lose the complete control of the interfaces
  display and functionality for each action
• Compare the capability for a near-instantaneous
  responsiveness of a local C/S client vs the ease
  of deployment, increased accessibility, and lower
  costs of the web.

25
What will WebCES do for you?

• Take advantage of the Web
• Provide an easy-to-use interface for CES
• Produce reliable and consistent conceptual
  estimates
• Support multiple levels of security
• Provide several types of calculations
• Simple look up, formulas, and historical bid
  pricing
• Support creation of a permanent record of the
  projects progress for Upper Management
• Snapshots can be taken at any time during the
  life of the project

26
Questions
