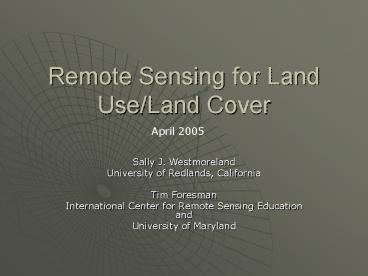

Title: Remote Sensing for Land UseLand Cover


1
Remote Sensing for Land Use/Land Cover
April 2005
  • Sally J. Westmoreland
  • University of Redlands, California
  • Tim Foresman
  • International Center for Remote Sensing Education
    and
  • University of Maryland

2
Land Cover
  • Biophysical physical skin of the planet
  • Vegetation type/community
  • Rock/Soil type
  • Water Condition includes snow and ice
  • Man-made concrete, asphalt, building materials,
    etc.
  • Dynamic condition in space and time
  • Seasonal
  • Human change
  • Other disturbance

3
Land Use
  • Functional/Anthropogenic Use
  • The human activities on the planets surface
  • Described by major uses
  • E.g., urban, agriculture, timber, transportation
  • Highly influenced by land cover
  • Dynamic in space and time

4
Conceptually, we may see land use as residing on
the land cover foundation
Land Use
Land Cover
Not a One-to-One Relationship
5
Grassland Land Cover Class Many Land Use
Classes Pasture Park Golf Course Lawn
6
Land Use and Land Cover Global to Local Scale
International Agencies must cooperate to create
geo-referenced data National and local agencies
and organizations help validate data
e.g. Land Use/Land Cover Demographics Global
Climate Sea Surface Temperature Digital Elevation
Global Scale
Regional Scale
e.g. Land Use/Land Cover Food and Fiber Disaster
Preparedness Biodiversity Coastal Sensitivity
e.g. Land Use/Land Cover Precision
Agriculture Hydrologic Modeling Transportation
Planning
National Scale
For All Nations Solve practical
problem Contribute to informed decision
making Communicate with citizens
e.g. Land Use/Land Cover Smart Growth Public
Health Disaster Response Weather
Local Scale
7
Mapping Land Use/Land Cover
  • Remote Sensing Instruments are efficient for
    capturing land cover/use
  • Large area coverage
  • Synoptic
  • Automated classification/visual interpretation
  • Geographic Information Systems
  • Capture, Store, Manage, Analyze results of land
    use/land cover mapping

8
Global Scale
  • Suitable for land cover
  • Based on seasonal patterns of vegetation
  • Limited use for land use, especially urban
  • Captures large area climate/physiographic
    patterns
  • Dynamic
  • MODIS/AVHRR sensors
  • Coarse spatial resolution 1 km
  • High temporal frequency daily

9
(No Transcript)
10
Regional Land Use/Land Cover
  • Distinguish general land use classes in addition
    to land cover
  • Urban
  • More discrimination of vegetation cover and type
    e.g., broad-leaf deciduous vs. conifer trees
  • While seasonally dynamic, land use tends to be
    less variable
  • Lower requirement for high temporal coverage

11
Regional Scale Sensors
  • Good archive of data and continuing collection
  • US Landsat
  • 30m resolution from 1982 to present
  • 80m resolution from 1972-1992
  • SPOT (French/European)
  • 10m/20m from 1986 to present
  • 5m introduced 2002
  • Indian Remote Sensing
  • Ranges from 72.5m originally to 5.8m now

12
Honduras North Coast
13
Honduras North CoastAutomated Land Use
Classification
14
Local Land Use/Land Cover
  • Detailed land use
  • Urban categories
  • Intensity of use
  • E.g., single family vs. multi-family residential
  • Agricultural practices
  • Generally low frequency requirement

15
Local Scale
  • Aerial Photography
  • High spatial resolution sensors launched
    beginning in 1999
  • IKONOS, QuickBird, OrbView3
  • Resolution
  • Panchromatic (black white) 0.62 to 1m
  • Multispectral (color) 2.7 to 4m
  • Source for Google Earth

16
(No Transcript)
17
(No Transcript)
18
Digital Orthophoto
  • Digitize land use
  • boundaries
  • Visual Interpretation
  • Heads-up digitizing

19
Digital Land Use File
20
Change
  • Compare image data or land use files from
    multiple dates
  • Change in associated cover may reflect change in
    use
  • Other applications
  • Storm damage
  • Disturbance (removal of cover)
  • Vegetation growth/condition

21
Rio San Juan/Lean North Coast
2001 vs. 2003
Red Vegetated in 2001, cleared 2003 Cyan
Clear in 2001, cover in 2003
22
2001 2003 Change
Change in North Coastal and Wetland Environment
23
Summary
  • Land use/Land Cover is Complex
  • Multiple scales and Driving Forces

Social Driving Forces
Biophysical Driving Forces
Proximate Agents and Processes
Global Regional National Sub-national Local
Global Regional National Sub-national Local
