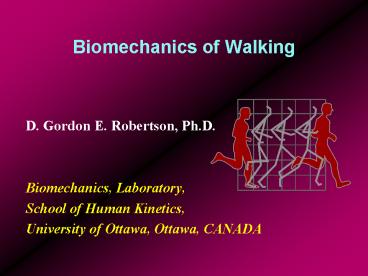

Biomechanics of Walking

1
Biomechanics of Walking

• D. Gordon E. Robertson, Ph.D.
• Biomechanics, Laboratory,
• School of Human Kinetics,
• University of Ottawa, Ottawa, CANADA

2
Quantitative Domains

• Temporal
• phases (stance/swing) and events (foot-strike,
  toe-off), stride rate
• Electromyography
• muscle activation patterns
• Kinematic (motion description)
• stride length, velocity, ranges of motion,
  acceleration
• Kinetic (causes of motion)
• ground reaction forces, pressure patterns, joint
  forces, moments of force, work, energy and power

3
Temporal Analysis

• Stride time (s)
• Stride rate 1/time (/s)
• Stride cadence 120 x rate (b/min)
• Instrumentation
• Photocells and timers
• Videography (1 frame
  1/30 second)
• Metronome

4
Stride Analysis

• Stride characteristics
• stride vs. step length
• stride velocity stride (length/rate)
• stride width
• single/double support
• swing/stance ratio

5
Electromyography
Noraxon system
Bortec system
Delsys electrodes
Mega system
6
Stride Analysis
7
Kinematic Analysis
Manual goniometer

• Linear position
• Ruler, tape measure, optical
• Angular position
• Protractor, inclinometer, goniometer
• Linear acceleration
• Accelerometry, videography
• Angular acceleration
• Videography

Miniature accelerometers
8
Motion Analysis

• Cinefilm, video or infrared video
• Subject is filmed and locations of joint centres
  are digitized

9
Computerized Digitizing Video (APAS)
10
Stick Figure Animation
11
Computerized Digitizing CCD (SIMI)
12
Real-time Digitizing CCD (Vicon or Motion
Analysis)
13
Full-body 3D Marker Set
14
Kinetic Analysis

• Causes of motion
• Forces and moments of force
• Work, energy and power
• Impulse and momentum
• Inverse Dynamics derives forces and moments from
  kinematics and body segment parameters (mass,
  centre of gravity, and moment of inertia)

15
Force Platforms
Kistler force platforms
16
Steps for Inverse Dynamics

• Space diagram of the lower extremity

17
Divide Body into Segments and Make Free-Body
Diagrams

• Make free-body diagrams of each segment

18
Add all Known Forces to FBD

• Weight (W)
• Ground reaction force (Fg)

19
Apply Newtons Laws of Motion to Terminal Segment

• Start analysis with terminal segment(s), e.g.,
  foot or hand

20
Apply Reactions of Terminal Segment to Distal End
of Next Segment in Kinematic Chain

• Continue to next link in the kinematic chain,
  e.g., leg or forearm

21
Repeat with Next segment in Chain or Begin with
Another Limb

• Repeat until all segments have been considered,
  e.g., thigh or arm

22
Normal Walking Example

• Female subject
• Laboratory walkway
• Speed was 1.77 m/s (fast)
• IFS ipsilateral foot-strike
• ITO ipsilateral toe-off
• CFS contralateral foot-strike
• CTO contralateral toe-off

23
Ankle angular velocity, moment of force and power
Dorsiflexion
Trial 2SFN3
Plantar flexion
Ang. velocity
Moment

• Dorsiflexors produce dorsiflexion during swing

Power
Dorsiflexors
Plantar flexors

• Plantar flexors control dorsiflexion

Concentric

• Large burst of power by plantar flexors for
  push-off

Eccentric
IFS
CTO
CFS
ITO
CFS
ITO
24
Knee angular velocity, moment of force and power
Extension
Trial 2SFN3
Flexion
Ang. velocity

• Negative work by flexors to control extension
  prior to foot-strike

Moment
Power
Extensors
Flexors

• Burst of power to cushion landing

Concentric

• Negative work by extensors to control flexion at
  push-off

Eccentric
IFS
CTO
CFS
ITO
CFS
ITO
25
Hip angular velocity, moment of force and power
10
Flexion
0
Trial 2SFN3
Extension
-10
Ang. velocity
Moment

• Positive work by flexors to swing leg

Power
100
Flexors
0
Power (W) Moment (N.m)
A ng. Vel. (rad/s)
Extensors

• Positive work by extensors to extend thigh

-100
Concentric
100
0

• Negative work by flexors to control extension

Eccentric
-100
IFS
CTO
CFS
ITO
CFS
ITO
-200
0.0
0.2
0.4
0.6
0.8
1.0
1.2
Time (s)
26
(No Transcript)
27
Motion Analysis

• Cinefilm, video or infrared video
• Athlete is filmed and locations of joint centres
  are digitized
• body is modeled as a system of connected segments

high-speed cine-camera
28
Stick Figure of Sprinter
29
Start Phase

• No motion permitted when gun sounds
• No force on blocks 0.10 seconds before gun sounds
• Gun fires and there is a delay before sprinter
  hears gun (unless blocks have speakers)
• Delay between when gun fires and force is applied
  to blocks (time for message to reach muscles at 6
  m/s)
• Taller sprinters take longer to start

30
Acceleration Phase

• Each athlete has his/her own rate of acceleration
• The whole race takes between 43 and 48 steps
• At maximum speed, stride length (1 stride 2
  steps) is over 4.5 metres long!
• Can last to 70 metres

31
Last 60 Metres of Race
32
Constant Velocity Phase

• athletes achieve maximum, constant velocity
  between 50 and 70 metres
• speed
• 9 12 metres / second
• 32 43 kilometres / hour
• foot achieves twice this velocity (86 km/h!)

33
Fastest Sprinter (in 1996)Johnson or Bailey?

• Johnsons 200 m record 19.32 s
• Each half 9.66 s?
• Baileys 100 m record 9.84 s
• US reporters claimed Johnson was faster?
• Johnson had running start for last 100 m
• At 12 m/s Bailey runs 100 m in 8.33 s, 200 m
  time could be 18.17 (new WR)!
• race in Toronto confirmed Bailey was Fastest Man
  in the World

34
Stride Analysis

• swing phase of one leg
• world-class male sprinter
• 50 m into 100 m competitive race (t 10.06 s)
• analysis of hip and knee only (ankle forces not
  significant during swing)

35

• Hip angular velocity power
• initial burst of power to create swing
• 3000-4000 W peak power by iliopsoas and rectus
  femoris
• latter burst to drive leg down
• 2800-3600 W peak power by gluteals

36

• Knee angular velocity power
• initial burst of power to stop flexion by muscle
  block not by knee muscles
• small burst for extension
• final burst to stop extension by eccentric
  contraction of hamstrings

37
Questions?
