Introduction to Bio-Inspired Models

1

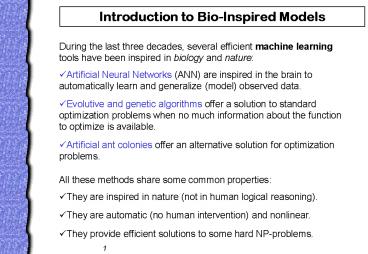

Introduction to Bio-Inspired Models

• During the last three decades, several efficient
  machine learning tools have been inspired in
  biology and nature
• Artificial Neural Networks (ANN) are inspired in
  the brain to automatically learn and generalize
  (model) observed data.
• Evolutive and genetic algorithms offer a solution
  to standard optimization problems when no much
  information about the function to optimize is
  available.
• Artificial ant colonies offer an alternative
  solution for optimization problems.

• All these methods share some common properties
• They are inspired in nature (not in human logical
  reasoning).
• They are automatic (no human intervention) and
  nonlinear.
• They provide efficient solutions to some hard
  NP-problems.

2
Introduction to Artificial Neural Networks
Artificial Neural Networks are inspired in the
structure and functioning of the brain, which is
a collection of interconnected neurons (the
simplest computing elements performing
information processing)

• Each neuron consists of a cell body, that
  contains a cell nucleus.
• There are number of fibers, called dendrites, and
  a single long fiber called axon branching out
  from the cell body.
• The axon connects one neuron to others (through
  the dendrites).
• The connecting junction is called synapse.

3
Functioning of a Neuron

• The synapses releases chemical transmitter
  substances.
• The chemical substances enter the dendrite,
  raising or lowering the electrical potential of
  the cell body.
• When the potential reaches a threshold, an
  electric pulse or action potential is sent down
  to the axon affecting other neurons.(Therefore,
  there is a nonlinear activation).
• Excitatory and inhibitory synapses.

weights ( or -, excitatory or inhibitory)
neuron potential mixed input of neighboring
neurons
(threshold)
nonlinear activation function
4
Multilayer perceptron. Backpropagation algorithm
1. Init the neural weight with random values2.
Select the input and output data and train it3.
Compute the error associate with the output
The neural activity (output) is given by a no
linear function.
4. Compute the error associate with the hidden
neurons
5. Compute
and update the neural weight according to these
values
5
Time Series Modeling and Forecast
Sometimes the chaotic time series have a
stochastic look difficult to predict An
example is Henon map
6
Example Supervised Fitting and Prediction
Given a time series with 2000 points (T20),
generated from a Lorenz system (chaotic
behavior). To check modeling power different
parameters are tested .
Three variables (x,y,z)
(xn,yn,zn) (xn1,yn1,zn1)
Continuous System Neural Network 3k3
7
Dynamical Behavior
363
A simple model doesnt capture the complete
structure of the system , then the dynamics of
the system is not reproduce.
A complex system its overfitting the problem and
the dynamics of the system is not reproduce
3153
Only a intermediate model with an appropriate
amount of parameters can model the functional
structure of the system and the dynamics
8
Time series from a infrared laser.
Infrared laser intensity is modeled using a
neural network. Only time lagged intensities are
used.
Net 6551
The Neural network reproduces laser behavior
The Neural Network can be synchronized with the
time series obtained from the laser.
9
Structural Learning Modular Neural Networks
With the aim of giving some flexibility to the
network topology, modular neural networks combine
different neural blocks into a global topology.
Fully-connected topology (too many parameters).
Combining several blocks (parameter reduction).
244441937 weights
Assigning different subnets to specific tasks we
can simplify the complexity of the model.
2(22)2(22)419 29 weights
In most of the cases, block division is a
heuristic task !!!
How to obtain an optimal block division for a
given problem ?
10
Functional Networks
Functional networks are a generalization of
neural networks which combine both qualitative
domain knowledge and data.
Qualitative knowledge
Initial Topology
Theorem. The simplest functional form is
Simplified Topology
This is the optimal block division for this
problem !!!
Data
(
x
,
x
,
x
),
i1,2,...
1
i
2
i
3
i
Learning (least squares)
f1, ..., fn
a1, ..., an
11
Some FN Architectures
Separable Model A simple topology.
Associative Model F(x,y) is an associative
operator.
Sliced-Conditioned Model
where f and y are covenient basis for the x- and
y-constant slices.
12
A First Example. Functional vs Neural
100 points of Training Data with Uniform Noise in
(-0.01,0.01).
25x25 points from the exact surface for
Validation.
Neural Network
2221 MLP
15 parameters
RMSE0.0074
2331 MLP
25 parameters
RMSE0.0031
Functional Network (separable model)
12 parameters
RMSE0.0024
F 1,x ,x2 ,x3
Knowledge of the network structure (separable).
Appropriate family of functions (polynomial).
Non-parametric approach to learn the neuron
functions !!!!
13
Functional Nets Modular Neural Nets
Advantages and shortcomings of
Black-box topology with no problem connection.
Neural Nets
Efficient non-parametric models for approximating
functions.
Parametric learning techniques (supply basis
functions).
Functional Nets
Model driven optimal topology.
The topology of the network is obtained from
the Functional network.
The neuron functions are Approximated using MLPs.
Hybrid functional-neural networks (Modular
networks)
14
Another example. Nonlinear Time Series
Nonlinear time series modeling is a difficult
task because
Time series modeling and forecasting is an
important problem with many practical
applications.
Sensitivity to initial conditions
Trajectories starting at very close initial
points split away after a few iterates.
Goal predicting the future using past values.
x1, x2,, xn xn1 ???
X10.8
X10.8 10-3
Modeling methods
X10.8 - 10-3
xn1 F(x1, x2,, xn)
Fractal geometry
There are many well-known techniques for linear
time series (ARMA, etc.).
Evolve in a irregular fractal space.
Nonlinear time series may exhibit complex
seemingly stochastic behavior.
Nonlinear Maps (the Lozi model)
15
Functional Models (separation)
500 training points 1000 validation points.
m11 (44 pars) RMSE5.3e-3
m7 (42 pars) RMSE1.5e-3
m7 (42 pars) RMSE4.0e-4
16
Minimum Description Length
Description Length for a model
The Minimum Description Length (MDL) algorithm
has proved to be simple and efficient in several
problems about Model Selection.
