Title: Module 3: Networking Media


1

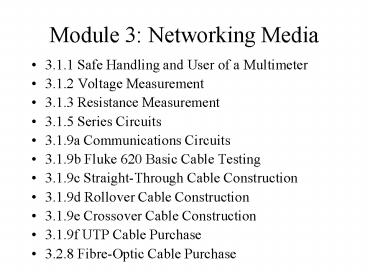

Module 3 Networking Media
  • 3.1.1 Safe Handling and User of a Multimeter
  • 3.1.2 Voltage Measurement
  • 3.1.3 Resistance Measurement
  • 3.1.5 Series Circuits
  • 3.1.9a Communications Circuits
  • 3.1.9b Fluke 620 Basic Cable Testing
  • 3.1.9c Straight-Through Cable Construction
  • 3.1.9d Rollover Cable Construction
  • 3.1.9e Crossover Cable Construction
  • 3.1.9f UTP Cable Purchase
  • 3.2.8 Fibre-Optic Cable Purchase

2
Module 4 Cabling Testing
  • 4.2.9a Fluke 620 Cable Tester Wire Map
  • 4.2.9b Fluke 620 Cable Tester Faults
  • 4.2.9c Fluke 620 Cable Tester Length
  • 4.2.9d Fluke LinkRunner LAN Tests
  • 4.2.9e Fluke LinkRunner Cable and NIC Tests

3
Module 5 Cabling LANs and WANs
  • 5.1.5 RJ-45 Jack Punch Down
  • 5.1.7 Hub and NIC Purchase
  • 5.1.10 Purchasing LAN Switches
  • 5.1.12 Building a Peer-to-Peer Network
  • 5.1.13a Building a Hub-based Network
  • 5.1.13b Building a Switch-based Network
  • 5.2.3a Connecting Router LAN Interfaces
  • 5.2.3b Building a Basic Routed WAN
  • 5.2.3c Troubleshooting Interconnected Devices
  • 5.2.7 Establishing a Console Connection to a
    Router or Switch

4
Cabling Equipment
  • Cable Cutter
  • Cable Crimpter
  • Fluke Cable Tester

5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Cable Building(3.1.9) and Testing (4.2.9)
  • As specified in the 568 standards, your cable may
    have a maximum length of 3m.
  • Cut a length of cable.
  • Strip off the jacket.
  • Separate out the 4 pairs of wires.
  • Untwist the wires.
  • Organize the wires according to the proper colour
    code and flatten the wires.
  • Maintain the colour order and flatness of the
    wires, then clip their length so that a maximum
    of 1.2 cm of untwisted wire is present.

9
Cable Building and Testing
  • Insert ordered wires into RJ-45 plug make sure
    jackets are inserted into plug.
  • Push the wires in firmly enough to make sure the
    conductors are all visible when you look at the
    plug from the end.
  • Inspect the colour code and jacket location to be
    sure they are correct.
  • Insert the plug firmly into the crimp tool and
    crimp down completely.
  • Inspect both ends visually and mechanically.
  • Use a cable tester to verify the quality of the
    cable.

10
UTP Cables
  • Straight-thr (PC-Hub/Switch)
  • Crossover (PC PC or Hub Hub)
  • Rollover (PC Switch/Router console)
  • Wire arrangements are as follows

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
