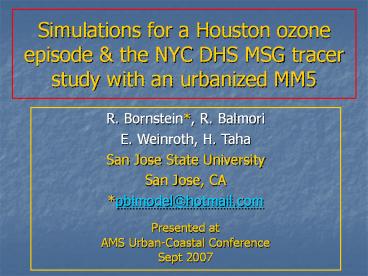

Simulations for a Houston ozone episode the NYC
DHS MSG tracer study with an urbanized MM5
  • R. Bornstein, R. Balmori
  • E. Weinroth, H. Taha
  • San Jose State University
  • San Jose, CA
  • pblmodel_at_hotmail.com
  • Presented at
  • AMS Urban-Coastal Conference
  • Sept 2007

2
Acknowledgements
  • Data
  • S. Burian, J. Ching
  • TCEQ, USFS
  • D. Byun
  • Urbanization scheme of
  • A. Martilli
  • S. Dupont
  • Funds
  • Past NSF, USAID, DHS
  • Pending DTRA

3
OUTLINE
  • Introduction
  • Current uMM5 Applications
  • Houston ozone
  • NYC tracer study
  • Future uWRF
  • Conclusion

4
Recent Meso-met Model Urbanization
  • Need to urbanize momentum, thermo , TKE
  • surface SfcBL diagnostic-Eqs.
  • PBL prognostic-Eqs.
  • Start veg-canopy model (Yamada 1982)
  • Veg-param replaced with GIS/RS urban-param/data
  • Brown and Williams (1998)
  • Masson (2000)
  • Martilli et al. (2001) in TVM/URBMET
  • Dupont, Ching, et al. (2003) in EPA/MM5
  • Taha et al. (2005), Balmori et al. (2006) in
    uMM5
  • detailed input urban-parameters as f(x,y) for
    our two applications

5
uMM5 for Houston
  • Goal Accurate urban/rural temps winds for Aug
    2000 O3 episode via
  • uMM5
  • Houston LU/LC urban morphology parameters from
    S. Burian
  • TexAQS2000 field-study data
  • USFS urban-reforestation scenarios ?
  • UHI O3 changes

6
uMM5 Simulation period 22-26 August 2000
  • Model configuration
  • 5 domains 108, 36, 12, 4, 1 km
  • (x, y) grid points
  • (43x53, 55x55, 100x100, 136x151, 133x141
  • full-s levels 29 in D 1-4 49 in D-5 lowest ½
    s-level7 m
  • 2-way feedback in D 1-4
  • Parameterizations/physics options
  • gt Grell cumulus (D 1-2) gt ETA or MRF PBL (D
    1-4)
  • gt Gayno-Seaman PBL (D-5) gt Simple ice
    moisture,
  • gt urbanization module NOAH LSM gt RRTM
    radiative cooling
  • Inputs
  • gt NNRP Reanalysis fields, ADP obs data
  • gt Burian morphology from LIDAR building-data
    in D-5
  • gt LU/LC modifications (from Byun)

7
D-5 UTC episode-day obs of meso O3
transport-patterns influences of sea breeze
UHI-convergence
  • GC influences small
  • Air-mass movement
  • First along-shore (to west) from flow along
  • N-edge of cold-core atm-low
  • Then Ship-Channel to Houston by
  • Bay Breeze UHI-convergence ? max O3
  • Finally to NW of Houston by Gulf Breeze

8
Episode-day Synoptics 8/25, 12 UTC (08 DST)
Surface
700 hPa
700 hPa sfc GC Hs at weakest (no gradient)
over Texas ? meso-scale forcing (sea breeze UHI
convergence) dominates
9
MM5 episode day, 3 PM ( all graphs flag 5
m/s)gt D1 reproduces weak GC p-grad flowgt
D-2 weak coastal-L gt D-3 well-formed L ?
along-shore V
10
Domain 4 (3 PM) cyclone off-Houston only on
O3-day (25th)
? Episode day
L
L
11
Urbanized Domain 5 near-sfc 3-PM V, 4-days
Hot
Cool
  • Episode
  • day

Cold-L
12
Along-shore flow, 8/25 (episode day) obs at 1500
UTC vs uMM5 (D-5) at 2000 UTC
D-5 (red box) uMM5 captured HGA obs of
along-shore flow (from SST- BC cold-low)
C
13
1 km uMM5 Houston UHI 8 PM, 21 Aug
  • Upper L MM5 UHI (2.0 K)
  • Upper R uMM5 UHI (3.5 K)
  • Lower L (uMM5-MM5) UHI

LU/LC error
14
8/23 Daytime 2-m UHI obs vs uMM5 (D-5)
H
15
UHI-Induced Convergence obs vs. uMM5
OBSERVED
uMM5
16
  • Base-case (current)
  • veg-cover (0.1s)
  • urban min (red)
  • rural max (green)

min
Modeled changes of veg-cover (0.01s) gt
Urban-reforestation (green) gt Rural-deforestation
(purple)
max increase
17
Run 12 (urban reforestation) minus Run 10 (base
case) 2-m ?T at 4 PMreforested central
urban-area cools surrounding deforested
rural-areas warm
18
DUHI(t) for Base-case minus Runs 15-18
  • UHI Average-T in urban-box minus that in
    rural-box
  • Runs 15-18 different urban re-forestation
    scenarios
  • DUHIRun-17 UHI minus Run-13 UHI (max effect)
  • Reduced UHI ? lower max-O3 (not shown) ?
  • EPA emission-reduction credits ? saved

19
uMM5 for NYC DHS MSG UDS
  • Goal Accurate urban/rural temps winds
  • for 9-15 March 05 tracer releases via
  • uMM5
  • NYC LU/LC urban morphology
  • parameters from S. Burian
  • DHS MSG UDS field-study data
  • met
  • tracer

20
Obs of UDS Tracer Periods
  • GC influences during tracer periods
  • Midtown weak, slow synoptic speed
  • MSG strong, fast synoptic speeds
  • Sea breeze UHI influences
  • Midtown strong, with UHI-convergence
  • MSG weak
  • Urban-barrier influences
  • Midtown weak
  • MSG strong, with urban barrier divergence
  • Modeling studies by
  • Midtown Pullen, Holt, Thompson at NRL
  • MSG This presentation

21
NYC uMM5 DHS UDS MSG 9-15 March 05
  • Model configuration
  • 4 domains 36, 12, 4, 1 km
  • (x, y) grid points
  • (110x85, 91x91, 91x91, 33x33)
  • full-s levels 29 in D 1-3 48 in D-4 lowest ½
    s-level7 m
  • 2-way feedback in D 1-3
  • Parameterizations/physics options
  • gt Grell cumulus (D 1-2) gt ETA or MRF PBL (D
    1-4)
  • gt Gayno-Seaman PBL (D-5) gt Simple ice
    moisture,
  • gt urbanization module NOAH LSM gt RRTM
    radiative cooling
  • Inputs
  • gt NNRP Reanalysis fields, ADP obs data
  • gt Burian morphology from LIDAR building-data
    in D-5
  • gt LU/LC modifications (from Byun)

22
D03
4 MM5 domains
D04
23
1900 UTC, 3/11/05, MM5 Domain 3 Sfc-T(K)
synoptic wave-cyclone V ( flag 5 m/s)
C
W
W
24
Concurrent Domain-4 uMM5 Streamlines z 60 m
AGL A-B is plane of following x-section
Downwind convergence
A
Slowing divergence
B
25
Concurrent Domain-4 uMM5 Streamlines Speed
(purple lines, m/s) at 60 (left) 700 (right) m
AGL Note z-cells from urban-induced con-
divergence
700 m
60 m
A
A
B
B
1000 m
26
Concurrent Domain 4 uMM5 Speed (m/s, where flag
5 m/s) at 60 (left) 700 (right) m AGL
slow
slow
fast
fast
Note large urban z0 ? speed-min downwind of
Manhattan Brooklyn (this is high-speed, non-UHI
period)
27
Concurrent domain 4 uMM5 Div (1/s) Wind (flag
5 m/s) at 60 (left) 700 (right) m AGL
D
C
D
C
D
D
Note convergence (C) over Manhattan, as roughness
slows wind Also compensating divergence (D)
around convergence area
28
Concurrent Domain4- uMM5 w (m/s) V (m/s) at
60 (left) and 700 (right) m AGL

-
-
-
-

Note up-motion () over Manhattan conv-area (of
previous fig) compensating down-motion (-) in
div-area around Manhattan
29
Pending uWRF
  • uWRF with NCAR (F. Chen) for DTRA
  • Martilli-Dupont urbanization
  • Burian lidar urban-parameters as f(x,y)
  • Taha stat-generalization of Burian
    urban-parameters for areas w/o lidar-obs
  • Freedman PBL-turbulence scheme
  • Zilitinkevich SfcBL stability-functions, zoh,
    etc.
  • Steyn diagnostic hi(x,y) scheme
  • SST (x,y,t) from J. Pullen

30
SJSU MM5 or uMM5 met output fields are available
  • for ozone (design-day cases) and/or
  • 4-D BCs for CFD /or quick ER models for
  • SFBA (MM5)
  • Houston (uMM5)
  • NYC (uMM5)
  • LA Basin (MM5)
  • Israel (RAMS MM5)

31
ThanksQuestions?
