Optimality%20Study%20of%20Logic%20Synthesis%20for%20LUT-Based%20FPGAs

1

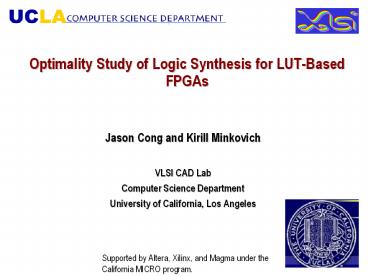

Optimality Study of Logic Synthesis for LUT-Based
FPGAs

• Jason Cong and Kirill Minkovich
• VLSI CAD Lab
• Computer Science Department
• University of California, Los Angeles

Supported by Altera, Xilinx, and Magma under the
California MICRO program.
2
Outline

• Motivation and background
• Current testcases hinted towards algorithms not
  having much room for improvement.
• LEKO
• Logic synthesis Examples with Known Optimals
• Creation, optimality, and results
• LEKU
• Logic synthesis Examples with Known Upper bounds
• Creation and results
• Conclusion

3
Goals of Paper

• Goal was to test the optimality of two design
  steps for logic synthesis
• Technology Mapping
• Logic Optimization combined with Technology
  Mapping
• Definitions
• Technology Mapping
• Logic Optimization
• Logic Synthesis Logic Optimization Technology
  Mapping

4
Motivation

• Logic synthesis is NP-hard in general
• Combining logic optimization mapping is much
  harder
• Academic tools mostly focus on mapping
• Problems with current test cases
• How far from optimal?
• Logic optimization?
• Decrease of FPGA synthesis papers
• Suggests fewer improvements possible
• Why there is a need for new ones
• Test specific properties of logic synthesis tools
• LEKO LEKU

5
Construction Overview (LEKO)

• First create a small core graph, G5, with a
  known optimal mapping (and possibly a logic
  synthesis) solution.
• G5 has to have the following properties
• 5 inputs (x1,x2,,x5)
• 5 outputs (y1,y2,,y5)
• yi f (x1,x2,,x5)
• Internal nodes have exactly two inputs.
• ? optimal (in terms of area/depth) mapping of

  G5 into a 4-LUT mapping solution with only
  has
  4-LUTs (no 3-LUTs or 2-LUTs).
• Why these properties?
• Simplest G5 for 4-LUT architecture
• Can be cascaded into larger structures

6
G5 example (optimal 7 4-LUTs)
7
Construction Overview (LEKO)

• Algorithm Steps
• Create a G5
• Then duplicate it and connect them together is
  such a way s.t. there is a unique traversal of
  G5s from PO to PI.
• This creates a new graph where we have the
  following properties
• There exists a known optimal mapping solution
• This also provides a tight upper-bound to the
  optimal logic synthesis solution
• By using different G5s we can construct different
  LEKO networks with any variety of properties.
• G5 can have different mapping and logic synthesis
  solutions
• G5 can be based on realistic designs
  (multipliers, adders, etc)

8
Construction Examples (LEKO)
G5
G5
G5
G5
G5
G5
G5
G5
G5
G5
9
Optimality

• Theorem The optimal mapping solution of an
  arbitrarily sized LEKO circuit without logic
  optimization is achieved when every G5 in the
  circuit is mapped optimally without overlapping
  any other G5.
• Proof Idea A LUT spanning two layers can will
  not reduce the area of the solution. This can be
  easily shown
  by looking at what would
  happen to G5
  at layer i and at layer i1
• Complete proof is in the paper

10
LEKO Examples

• LEKO Logic synthesis Examples with Known
  Optimals
• Naming
• G25 has 25 inputs and 25 outputs
• Gx has x inputs and x outputs
• Tools tested
• Alteras Quartus 5.0, Xilinxs ISE 7.1i, UCLAs
  DAOmap and Berkeleys ABC
• 4-LUT architecture
• Area optimization only (NP-hard)

Circuits Circuits Nodes Depth I/O Optimal Optimal
Circuits Circuits Nodes Depth I/O LUTs Depth
LEKO G25 305 13 50 70 4
LEKO G125 2350 20 225 525 6
LEKO G625 15,875 27 1250 3,500 8
11
Results (LEKO)

• Only mapping needed to produce optimal results.
• What do these mean?
• Scaled fairly well
• Average gap 15
• Why Quartus and ISE did so well
• Performed extra non-mapping steps

Circuits Circuits DAOmap ABC Quartus ISE Optimal
LEKO(G25) Area 83 80 72 80 70
LEKO(G25) Ratio 1.19 1.14 1.03 1.14 1
LEKO(G125) Area 650 609 561 588 525
LEKO(G125) Ratio 1.24 1.16 1.07 1.12 1
LEKO(G625) Area 4,435 4,072 3,737 3,974 3,500
LEKO(G625) Ratio 1.27 1.16 1.07 1.14 1
Average Ratio Average Ratio 1.23 1.16 1.05 1.13 1
12
Creating LEKU

• LEKU Logic synthesis Examples with Known Upper
  bounds
• Constructed from LEKO G25 (25 inputs and 25
  outputs)
• Collapse then decompose the graph
• Creates much larger graph that is logically
  equivalent to original
• LEKU-CD collapsed ? decomposed into AND/OR
  gates
• LEKU-CB collapsed ? balanced
• LEKU-CD
• LEKU-CD was too large for Xilinx as a single
  input
• Split LEKU-CD into 25 separate designs, one for
  each PO

Circuits Nodes Depth I/O Upper-Bound on Optimal Upper-Bound on Optimal
Circuits Nodes Depth I/O LUTs Depth
LEKU-CD(G25) 1,166,655 19 50 70 4
LEKU-CB(G25) 814 16 50 70 4
13
Results on LEKU

• Logic Optimization and Mapping were needed
• Academic tools were allowed to use preprocessing
  tools
• What does this mean?
• There exist designs on which these tool perform
  very badly
• Average gap 171x
• Suggest that all of these tools lack global
  minimization heuristics

Circuits Circuits DAOmap ABC Quartus ISE Upper Bounds
LEKU-CD(G25) Area 22,717 30,511 10,381 70
LEKU-CD(G25) Ratio 325 436 148 1
LEKU-CD(G25) Area 25,247 35,271 5,005 9,717 70
LEKU-CD(G25) Ratio 361 504 72 139 1
LEKU-CB(G25) Area 322 191 239 280 70
LEKU-CB(G25) Ratio 4.6 2.7 3.4 4 1
Average Ratio (last 2 designs) Average Ratio (last 2 designs) 183 255 38 72 1
Average Ratio (ALL) Average Ratio (ALL) 230 314 74 1
14
LEKO/LEKU vs Real Designs

• Limitations
• Whole circuit is combinational logic
• Contain highly repeated structures in the
  original circuits
• Doesnt mean tools are 70x away from optimal on
  real designs
• Different uses than real design
• LEKO
• Test mapping phase of algorithm
• Perform well on current LEKO benchmarks
• Will construct larger core graphs ? worse results
  ?
• LEKU
• Test logic optimization phase of algorithm
• Ability to reproduce original structure
• Duplication removal
• Logic Identification
• Other global heuristics

15
Conclusions

• Conclusions
• LEKO
• Only circuits that test optimality of technology
  mapping
• Have an optimal mapping solution
• LEKU
• Test global area minimizing heuristics
• Have a very tight upper bound on optimal
  solution
• These circuits address a need for specific method
  testing
• Current state of technology
• Technology Mapping
• Current tools do very well
• Overall Logic Synthesis
• Current tools just cant produce good solutions
  that require a global minimization heuristics.

16
Conclusions (continued)

• Download every testcases mentioned here
• http//cadlab.cs.ucla.edu/
• Click on Optimality Study
• Click on LEKO/LEKU
• Harder and Larger LEKO and LEKU circuits will be
  posted soon!
• Check out the article in EE Times
• Just search EE Times for kirill
• Thank you EE Times for your interest!
• http//eetimes.com/showArticle.jhtml?articleID180
  204087
• Questions?

17
Thanks !
18
Additional Slides
19
Construction Algorithm (LEKO)
20
Variations

• LEKO
• Using larger core graphs to create more complex
  designs
• Using commonly used cells as the core graphs
• Using collection of core graphs
• LEKU
• Using LEKO and adding in specific things to test
• Duplicating some specific parts
• Adding wires that will be removed when DONT
  CARES are computed

21
Interesting New Results

• After seeing the results we got several responses

• ABC
• Repeating
• map 4-LUTs ? dont care calculation
• let to 3x improvement on the largest LEKU
  example
• DAOMap
• Multiple iteration of
• map 5-LUTs ? simplify ? map 4-LUTs
• showed similar improvements on the LEKU
  examples
• Altera
• For the LEKO the following
• map 5-LUT ? map 4-LUT
• was able to achieve near optimal solutions
• This result wouldnt extend if we used a larger G5

22
Different G5s

• Assuming a K-LUT
• G5 has to have the following properties
• It has m inputs and m outputs.
• Every output is a function of all five inputs.
• Each internal node of G5 has exactly two inputs.
• There exists an optimal (in terms of area/depth)
  mapping of G5 into a K-LUT mapping solution,
  denoted M5, such that M5 only has K-LUTs.
• Where
• m K 1
• The larger the m the harder the G5 is to map
