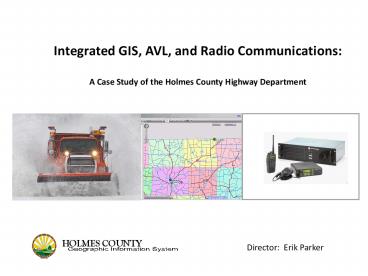

Integrated GIS, AVL, and Radio Communications
A Case Study of the Holmes County Highway
Department
Director Erik Parker
2

• GOAL
• Provide Holmes County GIS Consortium member
  (County Engineer) with an Automated Vehicle
  Location (AVL) system.

3

• Requirements
• No monthly recurring costs for service or
  wireless cards
• Able to track all vehicles regardless of
  conditions
• Provide limited access for Public to view
  snowplow/salt trucks
• Provide countywide coverage 422 sq. miles of
  Appalachia
• Access to historical GPS track data
• Must be inexpensive

4

• Challenges
• Cost all available options had service fees per
  vehicle starting at 25 per month. 35 vehicles x
  25 875 minimum per cost per month. Must
  build application in-house to meet goals.
• Transmission how to get GPS position data from
  vehicle to central server
• GIS Access what platform to build application
  on that would provide different levels of
  security access for Public and internal users?
• Archiving how best to archive data if necessary
  to develop the application in-house
• No Example considering all the restraints put
  on the project there was no known example to use
  as a guide for development

5

• Solution Components
• Motorola MOTOTRBO radio system
• ArcGIS Server Web Application
• Microsoft SQL 2005
• WebGIS Solutions custom web development
• neoTerra neoNytro software
• Custom Database Development

6
MOTOTRBO
Radio
WebGIS Solutions Customization
TCP/IP listener
Radio
XML output
SQL link
GPS
Radio
neoNytro server
SQL/ArcSDE server
ArcGIS server
Radio
INTERNET BROWSER
Radio
7
System Demonstration
MOTOROLA Case Study of Holmes County Engineer AVL
8

• Technical Challenges
• Separation of GPS data traffic from voice traffic
  to avoid noise on voice communications
• Configure digital frequency for local talk around
  channel necessary for always on GPS
  transmission
• Mechanism for listening on a port for GPS XML
  output
• Archiving data on regular basis in SQL to
  conserve space
• Display of GPS data and security on website

9

• Benefits
• Track not only all vehicles, but all portables if
  needed (35 mobile and 20 portable handhelds)
• Emergency locating
• Variable cadence to prioritize GPS traffic per
  project or seasonally not known to exist in pay
  services
• No monthly costs for AVL service
• Real-time public access to snowplow/salt truck
  locations
• Locate lost or stolen radios based on last
  recorded location
• Historic GPS recall accountability of employees
  and to public

10

• Future
• Integrate GPS data into Asset Management system
• Integrate third party controls in vehicles for
  enhanced in-car reporting (e.g. plow up/plow
  down, rate of salt spreading)
• Track mileage and compare to fuel consumption
• In-vehicle GIS tools using onboard GPS
• Route efficiency analysis
• Duplicate system in fire and EMS vehicles
  countywide with access to location data in E911
  Dispatch and stations
• Push data from central server to mobile data
  terminals using MOTOTRBO as a modem (e.g. 911
  call locations)

11

• Questions?
• Erik Parker, Director
