Title: GenChemOrganic Chemistry Laboratory


1

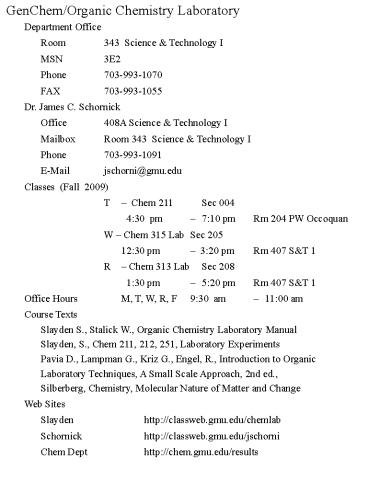

GenChem/Organic Chemistry Laboratory Department
Office Room 343 Science Technology I
MSN 3E2 Phone 703-993-1070 FAX 703-993-1055 Dr.
James C. Schornick Office 408A Science
Technology I Mailbox Room 343 Science
Technology I Phone 703-993-1091 E-Mail jschorni_at_
gmu.edu Classes (Fall 2009) T Chem 211 Sec
004 430 pm 710 pm Rm 204 PW Occoquan W
Chem 315 Lab Sec 205 1230 pm 320 pm Rm
407 ST 1 R Chem 313 Lab Sec 208 130
pm 520 pm Rm 407 ST 1 Office Hours M, T,
W, R, F 930 am 1100 am Course Texts Slayden
S., Stalick W., Organic Chemistry Laboratory
Manual Slayden, S., Chem 211, 212, 251,
Laboratory Experiments Pavia D., Lampman G., Kriz
G., Engel, R., Introduction to Organic Laboratory
Techniques, A Small Scale Approach, 2nd
ed., Silberberg, Chemistry, Molecular Nature of
Matter and Change Web Sites Slayden http//clas
sweb.gmu.edu/chemlab Schornick http//classweb.
gmu.edu/jschorni Chem Dept http//chem.gmu.edu/
results
2
Chemistry 315 - Organic I Laboratory Syllabus -
Fall 2009
3
Chemistry 318 - Organic II Laboratory Syllabus -
Spring 20010
4
Chemistry 315 - Organic I Laboratory Syllabus
Summer 2009 Session A
5
Chemistry 318 - Organic II Laboratory Syllabus
Summer 2009 Session C
6
Chemistry 312 Gen Chem Laboratory Syllabus
Fall 2009
Websites Lab Results http//chem.gmu.edu/results
(top of page) Handouts http//chem.gmu.edu/resul
ts (bottom of page) Web Lecture
Notes http//classweb.gmu.edu/jschorni/chem212lec
Web Lab Notes http//classweb.gmu.edu/jschorni/ch
em212lab
7
Objective The purpose of the Organic Chemistry
laboratory courses is to introduce the student to
basic techniques used in the lab to identify and
synthesize organic compounds. Experiments
Techniques
8
Objective The purpose of the Genchem 211/212
laboratory courses is to introduce the student to
basic techniques used in the lab to illustrate
typical reaction and measure the properties of
compounds Experiments
Techniques
9
  • Class Elements
  • Experiments (8 organic 10 genchem)
  • Laboratory Reports
  • Quizzes
  • Problem Set (Organic only
  • Final Exam (Organic only)
  • Safety procedures
  • Strictly Enforced
  • Goggles
  • Lab Coats
  • Gloves - Latex Non-latex (Nitrile)
    alternatives available)
  • Suggest old jeans shirts (chemical spills
    stains inevitable)
  • No Shorts, Flipflops, or Open-toed shoes
  • Safety Related Conduct
  • Honor Code
  • GMU operates on basis of an Honor Code.
  • All reports checked to ensure originality in lab
    report preparation.
  • Honor Code violations will be dealt with
    accordingly.

10
  • Class Elements (Cont)
  • Missed labs
  • There are very limited provisions for missed lab
    sessions, especially in the summer sessions.
  • Laboratory setup logistics severely limit
    provisions for making up missed lab sessions.
  • Students can sometimes make up a lab during the
    same week of the experiment (except in summer
    sessions).
  • It is the students responsibility to anticipate
    and make provisions for missed labs.
  • Missed laboratory sessions will receive a grade
    of zero for the report unless arrangements are
    made with the instructor for making up the lab
    work.
  • Missed Lab Reports
  • Laboratory reports not handed in will receive a
    grade of 0.
  • Late Lab Reports
  • Laboratory reports are due the week following the
    experiment.
  • One Week Late 10 points deduction
  • Two Weeks Late 25 points deduction
  • Three Weeks Late Grade of 0

11
  • Laboratory Process
  • Quizzes - Quizzes are given at the beginning of
    lab and last about 20 25 minutes.
  • Lab Lecture - (30-45 min))
  • Introduction to the next experiment
  • Review
  • Student Questions
  • Instructor Subjects
  • Detailed instructions for the Experiment
  • Pre-Lab Reports
  • Pre-lab reports containing Purpose, Approach,
    References, Procedure Descriptions, and proposed
    Data Presentation Templates are prepared using a
    supplied template. The pre-lab is due at the
    beginning of lab and will be checked by
    instructor during the Quiz.
  • Final Lab Report - The pre-lab reports are
    completed with experimental data, a data summary,
    and an analysis of the experimental results.
  • The final lab is submitted the week following the
    experimental work
  • The Lab Report is prepared according to the
    detailed guide lines described in this document
    utilizing a Microsoft Word lab report template
    obtained from the web site - http//classweb.gmu.
    edu/jschorni

12
  • Grades (Orgainc Labs)
  • Reports, quizzes, exams, etc. are graded on basis
    of 100 points.
  • Instructor defines curve for assigning letter
    grades.
  • Missed quizzes reports will receive a grade of
    0, if not submitted within 3 weeks of lab.
  • Quizzes / Problem Set (20 of Grade)
  • Quizzes will cover the background and theory of
    the experiment, reaction equations, procedural
    details, applicable computations.
  • Any quiz may have an additional question on
    Spectroscopy.
  • Problem Set (Counts as two (2) quizzes)
  • Lab Reports (60 of Grade)
  • The grade for each experiment is based on the
    laboratory report
  • Technical content
  • Procedure Descriptions
  • Results Observations
  • Analysis of Results, Conclusions
  • Completeness
  • Organization / logical structure
  • Presentation / Neatness
  • Final Exam (20 of Grade)

13
  • Grades (Genchem Labs)
  • Reports and quizzes are graded on basis of 100
    points.
  • Instructor normalizes grade point totals to a
    class medium value of 80
  • The normalized grade point percentage is
    submitted to Lecture Instructor for incorporation
    into final grade for course
  • Missed quizzes reports will receive a grade of
    0, if not submitted prior to final lab session.
  • The grade for each experiment is based on the
    laboratory report
  • Technical content
  • Purpose / Approach
  • Procedure Descriptions
  • Results Observations
  • Analysis of Results, Conclusions
  • Completeness
  • Grammar / Organization / logical structure
  • Presentation / Neatness

14
  • The Laboratory Report
  • The laboratory report plays the most important
    role in the presentation of Lab Course.
  • The primary focus of laboratory courses is to
    enhance the learning of laboratory techniques and
    evaluation of experimental results through a
    comprehensive laboratory report process.
  • The report process requires pre-lab planning,
    focused lab work, and a conscientious effort to
    effectively communicate the lab results to others
    in a clear, concise, grammatically and
    technically correct manner.
  • Continued improvement in neatness, technical
    content, organization, and readability dictate
    the grading process as the semester proceeds.
  • Final reports, including any charts and spectra
    for a given experiment, will be submitted not
    later than Friday of the week following the
    completion of the experimental data collection.
  • In some cases, final data collection, e.g.,
    melting points, etc., is done at the beginning of
    the next experimental lab session, in which case
    the report will be due the following week.

15
  • The Laboratory Report (Cont)
  • During summer sessions there are three (3) lab
    sessions per week. The lab reports for a summer
    session week are due no later than Friday of the
    week following the experiments of the previous
    week.
  • The Lab Report is graded on the basis of
  • logical Organization
  • Completeness
  • Brevity
  • Scientific Knowledge Correctness
  • Computational Accuracy
  • Neatness
  • Readability
  • Pre-lab Preparation The student uses a
    Microsoft Word report template (downloaded from
    the Instructors Website) to prepare a Pre-lab
    Report, which is checked at the beginning of the
    lab session.
  • The Pre-lab report then evolves to the Final
    Report as the student records the experimental
    observations and results in the Result
    Templates created in the Pre-lab report.

16
  • The Laboratory Report (Cont)
  • Results must be organized logically using a
    student designed data template for each
    procedure.
  • Ex. Label all data results, use aligned
    columns, insert and use MS Word tables
    as applicable.
  • The Results Summary section is a paragraph
    summarizing all of the results obtained in the
    experiment.
  • The Analysis Conclusions section is a logical
    development of a set of arguments, utilizing
    selected results from the experiment, to support
    of any conclusions arrived at as a result of the
    experimental process.
  • Emphasis is placed on correct grammar. Use as few
    words as possible, but use complete,
    grammatically correct, sentences.
  • Do not use First Person, i.e., I, me, my, our,
    etc.

17
  • The Pre-lab Report
  • The Pre-Lab is a template for the final report.
    It is created utilizing a Microsoft Word template
    down-loaded from the Instructors Website
  • http//classweb.gmu.edu/jschorni/labreporttemplate
    .doc
  • The Pre-lab contains all the elements of the
    final report except the experimental data, i.e.,
    the results, final computations, summary,
    analysis, conclusions.
  • The pre-lab report will be checked by the
    instructor during the lab session. The components
    of the pre-lab consist of the following
  • Note All information in the Pre-Lab Report is
    assumed known to the student prior to the lab
    session from the laboratory text resources and
    the Web Site notes provided by the Instructor.
  • Name, Date, Course Section No., Drawer No.,
    Partner(s), if any, entered into the Header Page
    of the report
  • Title of Experiment
  • Purpose
  • Approach (Overview of the steps to be used to
    conduct the experiment)
  • References (Formal citation format) both text
    resources compound resources.

18
  • Pre-lab Report Principal Components
  • Pre-Lab Report Components (Cont)
  • Procedures
  • Start each procedure on a new page
  • Materials Equipment (2 Columns)
  • Procedure Description
  • Equation Setup
  • Labeled Data Templates / Blank Tables

19
  • Final Report (The Pre-Lab report is
    completed)
  • Name (Must be on all pages of report)
  • Title (Must be on all pages of report)
  • Purpose
  • Approach
  • References
  • Procedure 1 Procedure Name (New Page)
  • Materials Apparatus (2 Columns)
  • Procedure Description, Equation Setup
  • Populated Data Templates Tables
  • Final Calculations
  • Procedure 2 Procedure Name (New Page)
  • Materials Apparatus (2 Columns)
  • Procedure Description, Equation Setup
  • Populated Data Templates Tables
  • Final Calculations
  • Procedure .
  • Summary Table of Results (optional)
  • Summary paragraph of Results (New Page)

20
  • Report Elements
  • Name, Date, Drawer, Experiment No., Partners,
    etc. on each Header page of the report
  • Title Short statement about the experiment,
    e.g., Nitration of Methyl Benzoate.
  • Purpose
  • Short, concise statement of what the experiment
    will accomplish.
  • The statement should include
  • The principle reaction involved
  • The instrumental technique that will be used.
  • Ex The purpose of this experiment is to
    synthesize a carboxylic acid
    utilizing an oxidation/reduction
    reaction between Chromic Acid and
    an Aldehyde.
  • Ex The purpose of this experiment is to
    synthesize the analgesic Aspirin
    (Acetylsalicylic Acid) in an
    Esterification reaction between
    Acetic Anhydride and Salicylic
    Acid.

21
  • Report Elements (Cont)
  • Approach
  • The Approach is a logical order listing, in
    paragraph form, of the procedures, including
    major steps within a procedure, that you will use
    to conduct the experiment.
  • The task here is to determine what constitutes a
    procedure. A procedure is a logical group of
    steps you take to produce a particular result
    within the experiment.
  • An element in the Approach would be a simple
    descriptive statement of the procedure to be
    used.
  • ex. Determine the Mass of Benzoic Acid by
    Weighing.
  • ex. Separate crude product from reaction
    solution by vacuum filtration.
  • Note Care must be taken not to include
    procedural details.
  • Note Calculations are considered to be
    procedures, and thus, would be
    elements in the Approach.

22
  • Report Elements (Cont)
  • Approach (Cont)
  • Example
  • Determine the Mass of the Ethanol from its volume
    and density. Compute the Moles of the Reagents.
    Setup the Stoichiometric Balanced reaction
    equation and determine the Molar Ratios.
    Determine the Limiting Reagent. Compute the
    Theoretical Yield. Extract (wash) the product
    with Distilled Water followed by 5 Sodium
    Bicarbonate. Dry the product with Anhydrous
    Sodium Sulfate. Determine the yield and yield
    of the product. Determine the Refractive Index
    corrected for room temperature. Obtain an IR
    Spectra.
  • Example
  • Determine the Mass of Formic Acid by weighing.
    Determine the Mass of Isobutyl Alcohol from its
    volume and density. Compute the Moles of the two
    reagents. Setup the Stoichiometric equation and
    determine the Molar ratios. Determine the
    Limiting Reagent. Calculate the Theoretical
    Yield. Mix the reagents together with the
    Sulfuric Acid catalyst. Wash/Extract the organic
    layer with Sodium Bicarbonate. Separate the
    Organic layer from the Aqueous layer in a
    Separatory funnel. Dry the product with Anhydrous
    Sodium Sulfate. Purify and determine the Boiling
    Point of the product using Simple Distillation.
    Determine the Mass of the purified product.
    Compute the Percent Yield of the product.
    Determine the Melting Point of the product.

23
  • Report Elements (Con't)
  • Reference Citations Text
  • A formal citation of the principal resources used
    to provide background information and procedural
    details for the experiment.
  • The following texts are normally cited in each
    Organic Lab report
  • Slayden, S., Stalick, W., 2005, Organic Chemistry
    Laboratory Manual, 2nd Edition Pearson Custom
    Publishing 126 p.
  • Pavia, D.L., Lampman, G.M., Kriz, G.S., Engel,
    .G.R., 2006, Introduction to Organic Laboratory
    Techniques, A Small Scale Approach, 2nd Edition,
    Brooks/Cole-Thompson Learning 1029 p.
  • Reference Citations Website URLs
  • http//riodb01.ibase.aist.go.jp/sdbs/cgi-bin/
    direct_frame_top.cgi
  • (The above site provides Mass, IR, Proton C-13
    NMR Spectra)
  • http//chemfinder.cambridgesoft.com
  • (The above site provides Synonyms, Physical
    Properties, Molecular Formulas, Structural
    Formulas)
  • http//www.chemexper.com
  • Other website URLs you might use.

24
  • Report Elements (Con't)
  • References (Cont) Compound Citations
  • In addition to the text references the report
    requires citations for the chemical compound(s)
    synthesized or identified in the experiment. The
    following sources can be used as references
  • CRC Handbook of Chemistry Physics, 84th
    Edition, Lide, D.R., Editor-in-chief, 2003-2004,
    CRC Press
  • Handbook of Data on Organic Compounds, Weast,
    R.C., Astle, M.J., 1985, CRC Press
  • The Merck Index, 13th Edition, 2001, ONeil, M.J.
    Senior Editor, Merck Co., Inc
  • The citation for a compound must include
  • Formal International Union of Pure Applied
    Chemistry (IUPAC) name
  • One Synonym (common name)
  • Chemical Abstracts Registry Number
  • Publication, Date, Edition
  • Author (Editor)
  • Page number where compound was found.
  • Item number of compound

25
  • Report Elements (Con't)
  • References (Cont) Compound Citations
  • Synonyms
  • In many cases organic compounds have several
    names in addition to the formal (IUPAC) name.
  • Use the following steps to find the formal name
  • Go to the http//chemfinder.cambridgesoft.com
    website.
  • This site is particularly rich in synonyms.
  • Type in the name of the compound that you are
    using the site is lenient on spelling.
  • The formal compound may not be the first name
    listed. See example page image on next slide.
  • Note the Chemical Abstract System (CAS)
    Registration No. (XXX-ZZ-Y) following the name on
    the first line.
  • The CAS number can be used to locate your
    compound in a variety of websites and printed
    resources that may have the compound listed by
    just a single or limited number of the various
    synonyms.

26
Typical page from chemfinder.com web site
containing Synonyms, CAS No., Molecular Formula,
Physical Properties, Structural Info.
(http//chemfinder.cambridgesoft.com)
27
  • Report Elements (Con't)
  • References (Cont) - Synonyms
  • Both the CRC Handbook and the Merck Index have
    cross-reference tables linking the CAS No. to the
    compound in the properties table.
  • In the CRC book, the item number
    cross-referenced from the CAS no. is in the
    first column followed by a Name column and a
    Synonym column.
  • The more formal name could be in either the 2nd
    column or the 3rd column.
  • In the Merck Index, the formal chemical name is
    usually the name in italics following the CAS No.
  • Ex. 1,4-dimethylbenzene (p-xylene) 106-42-3,
    CRC Handbook of Chemistry Physics, 2003, 84th
    ed.,Lide, D.R., Editor 4800, p. 3-256
  • 1,4-dimethylbenzene formal chemical name
  • p-xylene common name

28
  • Report Elements (Cont)
  • Procedures
  • In general, start each new procedure on a NEW
    page. Exceptions can be made when two (2) or more
    procedures and associated results can be placed
    on one page in their entirety without crowding.
  • The procedure description is placed in the left
    column of the procedure table in the template.
    Applicable results for a given procedure go in
    the column just to the right of the Procedure
    description.
  • Each procedure is setup as an individual numbered
    and named entity. It includes
  • Procedure No. Title
  • Materials, and Equipment (M E)
  • Use two (2) columns in list (bullet) format, one
    for Materials and one for Equipment.
  • The Materials column includes principal reagents
    and amounts used.
  • Apparatus setups need to include a detailed list
    of the major components.

29
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Setup (Cont)
  • Procedure Description
  • A short, concise, but complete, description of
    the experimental steps used to obtain a
    particular experiment result.
  • The procedure descriptions should be an
    abbreviated form of the detailed instructions
    from the lab text, lab manual, or Web Site Notes.
  • The student should use his/her own words, i.e.,
    DO NOT COPY THE BOOK.
  • The Procedure steps should be complete sentences
    put in list (bullet) format.
  • If the procedure involves a computation, the
    algorithm is setup as part of the procedure
    description. Variables must be defined.
  • The equation (derived as necessary) must be setup
    to represent the computational form of the
    algorithm.

30
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Scenarios
  • If the experiment is the identification of an
    unknown substance, the following initial
    procedures are applicable.
  • If the sample is a liquid the next procedure is
    to purify the sample and determine its boiling
    point by Simple Distillation.
  • The second procedure in the report is the
    description of the purified unknown sample
    solid, liquid, color, odor, etc.
  • The next procedure for a liquid is to determine
    its Refractive Index, followed by a sub-procedure
    to correct the Refractive Index for temperature.
  • ND20 ND RmTemp
    ?t (0.00045 / oC)
    ?t Room Temp - 20
  • If the unknown sample is a solid, the melting
    point is determined.
  • Determine the relative Solubility of the unknown
    in distilled water.
  • Determine the Density of the unknown relative to
    distilled water.
  • Obtain IR Spectrum and NMR Spectrum

31
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Scenarios (Cont)
  • If the experiment is the Synthesis of a compound,
    the first objective is to determine the
    Theoretical Yield.To do this you must determine
    the following in sequence
  • The Masses of the Reagents
  • The Moles of the Regents
  • The Stoichiometric Molar Ratios
  • The Limiting Reagent
  • The Theoretical Yield.
  • NOTE Each of the above items would be a
    separate procedure in the report.

32
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Scenarios (Cont)
  • Synthesis of Compound (Cont)If one or more of
    the reactants is a solid, the following
    considerations are applicable
  • Determine Mass of reactant A to the
    nearest 0.001 g. by weighing
  • Determine Mass of reactant B to the
    nearest 0.001 g. by weighingNote Since the 2
    steps above involve the same process
    to determine the mass of the
    reagents, only one (1) procedure is
    required.
  • Compute the Moles of reactants A B.Note This
    is a separate procedure

33
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Scenarios (Cont)
  • Synthesis of a Compound (Con't)If one or more
    of the reactants is a liquid the following
    considerations are applicable
  • If a reactant is an Inorganic liquid, e.g.,acid
    or base, use a Volumetric Pipet(volume precision
    is good to at least 0.001 ml).
  • This volume must be converted to Massusing the
    relationship between volume, density and mass
    Density Mass / Vol Mass
    Density x Vol
  • The Mass must be adjusted for the percentage
    content of the solute in the solution. For
    example, the Nitric Acid in conc Nitric acid
    is 70. Thus, the mass of HNO3 is 70 of the mass
    of the solution.
  • As an alternative, the relationship between
    Volume and Molarity can also be used to determine
    the number of moles being used.
    (Molarity Moles / Liter)

34
  • Report Elements (Cont)
  • Procedures (Cont)
  • Procedure Scenarios (Cont)
  • Synthesis of a Compound (Con't)
  • If one or more of the reactants is a organic
    liquid the following considerations are
    applicable
  • ? The density and percentage content are
    usually not applicable.
  • ? Organic liquids should be weighed
    directly to obtain the mass to the nearest
    0.001 g.
  • ? Once the mass is determined, it is
    converted to moles.
  • Once the Moles of Reactants have been determined,
    set up the Stoichiometric balanced equation and
    determine the Molar Ratios
  • Determine Limiting Reagent from the number of
    Moles actually used in the experiment and the
    Molar Ratio from the balanced equation.Note
    See example computations
  • Compute the Theoretical Yield

35
  • Report Elements (Cont)
  • Results
  • The results obtained from the experiment are
    reported on the Right side of the report page
    opposite the procedure description.
  • The format of each Results section must be
    carefully designed so that the data /
    observations / calculations are presented in a
    logical and clearly readable manner, i.e., NEAT.
    In other words, the student must design a
    template for presenting the results.

36
  • Download the Lab Report Template from the Web
    Site
  • Information is typed in the shaded blocks of the
    tables.
  • Procedure Descriptions, Materials, Equipment are
    Bulletized
  • Information for the Header table is entered as
    follows
  • Select Header Footer from the View Menu.
  • Enter the appropriate information into the shaded
    blocks.
  • Select Print View from the View Menu
  • The Header information will flow automatically to
    each page.

Typical Header Table
Typical Procedure Table
NOTE Each Shaded Block Will Expand As Necessary
To Accommodate Additional Lines Of
Information.
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
  • Summary Discussion
  • The summary/discussion is a listing in
    Paragraph format of the results obtained in the
    experiment, i.e., ALL RESULTS.
  • The results are not to be embellished or
    interpreted in any way. It is simply a summary
    listing of each result you obtained.
  • Analysis/Conclusions
  • A step by step presentation of arguments,
    utilizing selected results as applicable, to make
    a statement in support of any conclusions you
    have reached regarding the results of the
    experiment.
  • Ex. What sequence of results lead to your
    selection of the identity of the Unknown
    compound?
  • How did your yield compare to the
    calculated theoretical yield?
  • How does Gas Chromatography determination
    of Mole Percent in a mixture compare to the
    composition as determined by Fractional
    Distillation?
  • What functional groups were identified from
    the IR analysis and how did you decide on a
    particular compound structure?

43
(No Transcript)
44
Use table for Experimental Unknowns Synthesized
Compounds only. Use appropriate literature
resources to fill in Literature values, even if
experimental results are not available.
45
Chemistry Laboratory Report Grading Form
Name
Experiment
46
Laboratory Report Grading Codes
Lab Report (Pre-Lab Final) Code Comment a Re
port not done, late, incomplete b Report
Template not used, not typed c Header
Info missing, incomplete d References
missing, incomplete e Purpose/Approach
missing, incomplete, weak f Procedure Descrip
missing, incomplete, weak g Procedure Setup
disorganized, ambiguous h Procedure Setup
crowded, start on new page i Result Templates
missing, incomplete j Reactions/Equations
missing, incomplete Purpose Code Comment a Te
xt grammar, sentence structure b Text
wordy, overstated, superfluous c Text
originality, use your own words d Elements
omit background. approach items e Elements
principal reaction/equipment missing f Elements
missing, incomplete g Elements technically
weak, incorrect h Elements disorganized,
ambiguous Approach. Code Comment a Text not
in paragraph format b Text grammar, sentence
structure c Text wordy, overstated,
superfluous d Text originality, use your own
words e Elements each element in a separate
sentence f Elements omit background,
procedural details g Elements missing,
incomplete h Elements technically weak,
incorrect i Elements disorganized,
ambiguous Reference Citations Code Comment a R
eference Citation missing, incomplete b Referen
ce Citation incorrect c URL Citation
missing, incomplete d Compound Citation
missing, incomplete e Compound Citation
incorrect f Compound Citation page no., item
no., missing g Citation Source not citable
(website, catalog) Materials Equipment
(ME) Code Comment a Format not in
2-column bullet format b ME items missing,
incomplete c ME items mislabeled,
incorrect Procedures Code Comment a Procedure
No. missing, incorrect b Procedure Title
missing, incomplete, incorrect c Procedure
Title wordy, overstated d Procedures wrong
procedure e Procedures disorganized,
ambiguous f Procedures missing, incomplete
g Procedures need to be separated h Procedur
es need to be combined i Procedure Steps
not in Bullet format j Procedure Steps
missing, incomplete k Procedure Steps
disorganized, ambiguous l Procedure Text
technically weak, incorrect m Procedure Text
originality, use your own words n Procedure
Text grammar, sentence structure o Procedure
Text wordy, overstated, superfluous p Extraneou
s Info omit analysis conclusions
Theoretical Yield Code Comment a Reaction
Equation missing, incomplete,
incorrect b Molar Ratio missing,
incomplete, incorrect c Reaction Mechanism
missing, incomplete, incorrect d Limiting
Reagent missing, incomplete,
incorrect e Theoretical Yield missing,
incomplete, incorrect f Summary Table
missing, incomplete, incorrect Results (Includes
Tables, Charts IR/NMR spectra) Code Comment a
Template weak design, disorganized b Presentqt
ion messy, not typed c Results missing,
incomplete d Results incorrect,
ambiguous e Results redundant,
misplaced f Tables, Charts missing,
incomplete, incorrect g Spectra missing,
incomplete, incorrect h Spectra Labels
missing, incomplete, incorrect i Extraneous
Info omit background, procedure
items j Conclusions out of place, move to
analysis Computations Code Comment a Equation
Setup missing, incomplete, incorrect b Variab
les undefined, ambiguous c Data
Substitution missing, incomplete,
incorrect d Units missing, incomplete e Units
incorrect, ambiguous, incorrect f Computation
missing, incomplete, incorrect g Precision,
Sig Fig incorrect Summary of Results Code Comm
ent a Results missing, incomplete b Results
incorrect, dont match report c Results
disorganized, ambiguous d Results each result
in a separate sentence e Text not in paragraph
format f Text grammar, sentence
structure g Text wordy, overstated,
superfluous h Extraneous Info omit background,
procedural details i Conclusions out of
place, move to analysis Analysis, Significance of
Results, Conclusions Code Comment a Analysis
missing, incomplete b Analysis weak,
incorrect c Analysis disorganized, ambiguous
d Analysis arguments incomplete,
missing e Analysis arguments lack support
data f Analysis weak theory connection
g Results repeat of summary of
results h Text grammar, sentence
structure i Text wordy, overstated,
superfluous j Extraneous Info omit, purpose,
procedural details Literature Summary
Table Code Comment a Literatur
e Summary Table missing, incomplete b Unknown
No. missing, incorrect c Compound (IUPAC)
Name missing, incorrect d Compound Synonyms
missing, incorrect e Physical Properties
missing, incorrect f Molecular Formula
missing, incorrect g Structural Formula
missing, incorrect h Report Template do not
modify
47
  • There is NO separate Calculations section.
  • Each computation is placed in the report as a
  • NEW PROCEDURE
  • A Computation Procedure is created as soon
    as all pertinent information needed for the
    calculation becomes available through prior
    experimental results and/or other computed
    results.
  • Each computation is to be setup as a separate
    procedure. The equation is setup along with
    variable definitions in the procedure
    description. The data substitution and final
    calculations are presented in the results section
    across from the description section. Appropriate
    units must be presented and the calculations must
    be carried out with correct precision.
  • The student must plan and design the results
    section to accommodate all of the anticipated
    results measured, observed, or computed - for a
    given procedure. New procedures should not be
    started until the previous procedure and
    associated results are completed.
  • Computations using results from two or more
    procedures should be grouped and presented in a
    separately titled procedure as soon as all of the
    pertinent data for the new computation is
    available.

48
  • Computation Setup
  • In the Description box of the Procedure section
    provide a brief description of the equation and
    what it does.
  • Set up the equation in the Equation Setup box
    of the Procedure Section.
  • The equation setup should define the variables
    used in the equation and their logical
    relationship.
  • In the Results box of the Procedure section
    show the values of the variables used in the
    equation and then substitute the values in the
    equation and make the final calculation.
  • Show appropriate units.
  • Report results to appropriate accuracy, i.e.
    correct number of decimal places and significant
    figures.
  • Note When multiple computations are done using
    the same Equation only ONE procedure is
    needed.
  • If the equation changes then a NEW procedure
    is required.

49
  • Organic Chem Lab AlgorithmsMany of the Organic
    Laboratory Reports require the student to make
    computations for selected results.These include
  • Mass of a reagent from the weight of the vial
    containing the reagent and the mass of the vial
    empty.
  • Mass Vial Compound 9.234g
  • Mass Vial 6.528g
  • Mass Compound
    2.706g
  • Mass of a liquid reagent (generally inorganic
    acids or bases) from the volume, density, and
    composition.
  • Mass (g) Vol(mL) x Den(g/mL) x
    comp/100
  • Moles of reagents from the Mass and Molecular
    Weight.
  • moles mass / mol wgt.
  • The Moles of a reagent can also be computed
    directly from the Volume and Molarity of the
    reagent, e.g. the Molarity of concentrated HCL is
    12 moles/L moles Vol(L) x
    Molarity (moles/L)

50
  • Limiting Reagent Theoretical Yield
  • The Limiting Reagent is that reactant whose
    mass (on a molar equivalent basis) actually
    consumed in the reaction is less than the amount
    of the other reactant, i.e., the reactant in
    excess.
  • From the Stoichiometric balanced reaction
    equation determine the molar ratio among the
    reactants and products, i.e., how many moles of
    reagent A react with how many moles of reagent B
    to yield how many moles of product C, D, etc.
  • The moles of product(s) will be the same as the
    limiting Reagent on a molar equivalent basis.
  • If the ratio of moles of A to moles of B actually
    used is greater than the Stoichiometric molar
    ratio of A to B, then the A reagent is in
    Excess and the B reagent is Limiting.
  • If, however, the actual molar ratio of A to B
    used is less than the Stoichiometric molar ratio,
    then B is in excess and A is Limiting.
  • Example 1
  • A B ? C Molar Ratio AB
    1
  • Moles actually used A 0.345 B
    0.698
  • Ratio of moles actually used (A/B)
    0.345/0.698 0.498
  • 0.498 lt 1.0 ? B is in excess) A is
    Limiting
  • Theoretical Yield of C 0.345 moles

51
  • Limiting Reagent Theoretical Yield (Cont)
  • Example 2 - Molar Ratio 111
  • A B ? C
  • Stoichiometric Molar ratio AB 1 1
    1.0
  • Moles actually used A 0.20
    B 0.12
  • Ratio of Moles actually used (A/B)
  • 0.20 / 0.12 1.67
  • The ratio of AB is greater than 1.00
  • A is in excess and B is limiting.
  • Only 0.12 moles of the 0.2 moles of A would be
    required to react with the 0.12 moles of B.
  • The reaction would have a theoretical yield of
    0.12 moles of C (Molar Ratio of BC 1).
  • Example 3 Molar Ratio 121
  • A 2B ?
    C
  • Stoichiometric Molar ratio AB 1 2 0.5
  • Moles actually used A 0.0069
    B 0.023
  • Ratio of Moles actually used (A/B)
  • 0.0069 / 0.023 0.30 lt 0.5
    ? A is limiting
  • Only 0.0069 ? 2 0.0138 moles of the 0.023
    moles of B are required to react with 0.0069
    moles of A.

52
  • The Theoretical Yield Table (Cont)
  • The Theoretical Yield, in grams, is computed from
    the number of moles of the Limiting Reagent,
    the Stoichiometric Molar Ratio, and the Molecular
    Weight of the product.
  • Yield moles (Lim) x Molar Ratio x
    Mol Wgt
  • The Percent Yield of a product obtained in a
    Synthesis experiment is computed from the
    amount of product actually obtained in the
    experiment and the Theoretical Yield.
  • Yield Actual Yield /
    Theoretical Yield x 100
  • Note The yield values can be expressed in
    either grams or moles

53
  • Retention Time is the time from point of
    injection of a compound into a Gas Chromatograph
    to its elution from the column. For a given set
    of instrument conditions this time is constant
    for any given compound. Thus, it can be used to
    identify compounds in an unknown mixture when
    compared to a mixture of known compounds.
  • The retention time can be computed using the
    chart speed and the distance from the start point
    on the chromatogram to the mid-point of the peak.
  • Velocity Distance / Time Retention
    Time Distance / Chart Speed

54
  • Peak Area / Molar Content
  • The Area of a peak in a Gas Chromatogram is
    proportional to the Mole content of the mixture.
  • Thus, the ratio of the peak area of a given
    compound and the total area of all the peaks on
    the chromatogram gives the mole fraction of the
    compound.
  • The Peak Area can be computed by the
    Triangulation Method, which is the height of
    the peak multiplied by the Width of the peak at
    1/2 the height of the peak Area Peak
    Height x Width _at_ 1/2 peak height
  • The Mole Fraction is computed by dividing the
    individual peak areas by the sum of peak areas in
    the chromatogram.
  • Mole Fraction Peak Area / Total
    Peak Area
  • The Mole Percent is computed by multiplying the
    Mole Fraction values by 100.
  • Mole Mole Fraction x 100

55
  • Thermal Response Adjustments to GC Peak Areas
  • Mixtures of compounds will produce GC peak areas
    proportional to the molar content.
  • Thus, Equimolar mixtures of compounds should
    produce Gas Chromatography peaks of equal area.
  • Similarly, mixtures of any known molar content
    will produce peak areas in direct proportion to
    the molar content.
  • Compounds with different functional groups or
    widely varying molecular weights do not all have
    the same Thermal Conductivity. This causes the
    instrument to produce response variations, which
    result in peak areas that are not in direct
    proportion to the molar content.
  • The peak areas, or as we will see, the Mole
    Percent, of a mixture of unknown Molar content
    can be adjusted based on the peak areas obtained
    from a mixture of similar compounds with a known
    Molar content.

56
  • Thermal Response Adjustments (Cont)
  • Correction Factors (called Thermal Response
    Factors (TR) are computed as ratios of the area
    of one peak in the known mixture acting as the
    base peak to the area of each of the other
    peaks in the mixture.Where subscript s
    refers to the Base Peak and subscript i
    refers to each compound in the mixture.
  • Note There must be a least two compounds in the
    mixtures of interest. An unknown mixture of four
    (4) compounds must have access to Thermal
    Response data from a known mixture of the same
    compounds.
  • The relationship between the peak areas of a
    mixture of compounds, the Molar Content, and the
    Thermal Response factors can be expressed as
    follows
  • Since the Areas of the peaks in the unknown
    mixture can be obtained by measurement and the
    Thermal Response Factors are known from the known
    mixture, the new corrected molar ratios can be
    obtained by rearranging the above equation

57
  • Thermal Response Adjustments (Cont)
  • Each of the Molei / Moles values in the mixture
    is equivalent to the individual areas (now
    corrected for the Thermal Response effect) that
    were used to compute the Total Area of the
    peaks prior to computing the Mole Fraction and
    Mole Percent without the Thermal Response
    correction.
  • Therefore, by adding the Molei / Moles values to
    get a Total value, the new corrected Mole
    Fraction can be computed by dividing each of the
    Molei / Moles values by the Total value.
  • The new Mole Percent values are then computed by
    multiplying the new Mole Fractions times 100.
  • Example

58
  • Refractive Index
  • The measured value of Refractive Index must be
    corrected to a standard temperature (usually
    20oC)
  • The Index of Refraction (ND) decreases with
    increasing temperature, i.e., velocity of light
    in the medium increases as density decreases.
  • Measured values of (ND) are adjusted to 20oCFor
    measured temperatures gt20oC, the correction
    factor computed below is added to the measured
    value because the value at 20 oC would be greater
    than the value at the measured temperature.
  • Corrections for measured values lt20oC are
    subtracted from the measured value.
  • Temp Correction Factor
  • ?t 0.00045 (Room Temp 20)
    0.00045
  • The following equation automatically accounts for
    the measured temperature ND20 NDRm Temp
    ?t 0.00045
  • ND20 NDRm Temp (Room Temp
    20) 0.00045
  • Ex For an observed value of 1.5523 at
    16oC, the correction is
  • ND20 1.5523 (16 20)
    0.00045 1.5523
    ( 4 ) 0.00045
    1.5523 0.0018
    1.5505

59
  • The Problem Set is a Powerpoint document that
    will be E-Mailed to each student.
  • The problem answers are to be completed, i.e.,
    typed, in the shaded boxes provided.
  • Compound structures and materials not suitable
    for typing will be hand-entered in the shaded
    boxes.
  • Each problem consists of one or more parts, each
    of which has a shaded text box in which the
    student provides the required information.
  • In the Spectra problems, the student is expected
    to provide an analysis of the information
    provided for each part, i.e., Mass Spectrum,
    Partial Elemental Analysis, Ultraviolet/Visual
    Spectra, Infrared Spectra, 1H1 (proton) NMR
    Spectra, 6C13 (Carbon-13) NMR Spectra.
  • The above results are then pulled together in a
    logical set of arguments leading to the identity
    of the compound, its molecular formula, and its
    structure.
  • The problem set counts as two (2) quiz grades.
  • See the next three (3) pages for notes on the
    analysis process.
  • Also check the Web Site documents on the IR and
    NMR lecture material.
