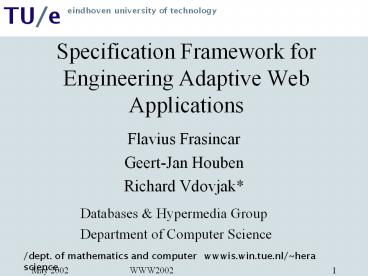

Title: Specification Framework for Engineering Adaptive Web Applications


1
Specification Framework for Engineering Adaptive
Web Applications
  • Flavius Frasincar
  • Geert-Jan Houben
  • Richard Vdovjak

Databases Hypermedia Group Department of
Computer Science
2
Overview
  • Introduction, Motivation and Goals
  • Hera Design Methodology
  • Conceptual Design
  • Application Design
  • Adaptation Design
  • Prototype/Rendering
  • Summary and Future Work

3
Introduction
1436 Printing Press (Johan Guttenberg) -
facilitated storing and exchange of
information/knowledge on a larger scale 1989
WWW (Tim Berners-Lee) - information/knowledge
exchange boost - everything is on the Web !?
- huge success vs. huge mess
4
Motivation
  • There are several methodologies for manual
    hypermedia presentation design but not so for
    automated design.
  • The need for presentation automation is justified
    by the fact that most WIS are data driven
  • There is an increasing need for presentation
    adaptation for different users/user platforms.

5
Goals
  • Develop a framework that supports automated
    hypermedia presentation design for WIS
  • Integrates heterogeneous data sources.
  • Facilitates presentation (server/client-side)
    adaptation
  • Network (T1, 128K, 56K etc.)
  • Display (PC, Palm, WAP Phone etc.)
  • User (preferences, interaction history etc.)
  • Enables semi-structured data queries.

6
Hera Design Methodology
  • Originates from RMM (Relationship Management
    Methodology).
  • Suggests a sequence of design steps to be taken
    when designing a web application.
  • Supports
  • integration of heterogeneous information
  • automated presentation design
  • user/platform adaptation

7
Design Methodology Steps, Models, and Processing
Engines
8
Conceptual Model (CM)
  • Provides a uniform semantic view over different
    data sources that are integrated within a given
    Web application.
  • Consists of hierarchies of concepts relevant
    within the given domain, their properties, and
    relations.
  • Encoded in RDF(S).

9
Conceptual Model Example
10
CM Example RDF(S) Syntax
11
Application Model (AM)
  • Describes hypermedia aspects of the presentation.
  • Captures the navigational view over the CM
  • Consists of (nested) slices and slice
    relationships
  • Slices - meaningful presentation units
  • Associated to concepts from the CM
  • Contain properties and possibly other slices
    (nesting)
  • Slice relationships
  • Aggregation relationships index, tour, indexed
    guided tour
  • Reference relationships link with an anchor
    specified.
  • Encoded in RDF(S).

12
Application Model Example

13
AM Example RDF(S) Syntax
14
Adaptation/User Model
  • Captures two kinds of adaptation
  • Adaptability takes into account the situation in
    which the user will use the presentation (e.g.
    the browsing platform).
  • Adaptivity means that the presentation changes
    itself according to the state of the users
    mind while being browsed.
  • Consists of
  • Device/User Profile captures static visual and
    platform preferences encoded in CC/PP.
  • User Session represents the dynamic users state,
    e.g. did the user visit (learn) this slice
    (concept).
  • Application and Update Rules describe the
    behavior of the presentation (e.g. conditional
    slices in AM) and keep the User Session
    up-to-date (AHAM rules).

15
Adaptation Model Example
16
Adaptation Model Syntax
  • Adaptability Condition
  • Adaptivity Condition

ltrdfsClass rdfIDSlice.painting.picture
sliceconditionprfImageCapableYe
sgt ltrdfsubClassOf rdfresourceSlice/gt lt/
rdfsClassgt
ltrdfsClass rdfIDSlice.painter.main
sliceconditionusBiography falsegt
ltrdfsubClassOf rdfresourceSlice/gt lt/rdfs
Classgt
17
Profile Example
  • Device/User Profile (CC/PP encoding)
  • Screen size 100x80, preferred language English

ltccppcomponentgt ltupUserPreferencesgt
ltupLanguagegtEnglishlt/upLanguagegt
lt/upUserPreferencesgt
lt/ccppcomponentgt lt/rdfDescriptiongt
ltrdfDescription rdfaboutProfilegt
ltccppcomponentgt ltprfHardwarePlatformgt
ltprfImageCapablegtNolt/prfImageCapablegt
ltprfScreenSizegt100x80lt/prfScreenSize
gt lt/prfHardwarePlatformgt
lt/ccppcomponentgt
18
Update Rule (AHA) Example
  • Update the Biography record in the User
    Session table to true after the user visited
    Slice.painter.main.

ltusSlice.painter.maingt ltahaupdatelistgt
ltahaSetOfConceptsgt
ltahaitemgtltusBiography ahaupdatetrue/gtlt/ahai
temgt lt/ahaSetOfConceptsgt
lt/ahaupdatelistgt lt/usSlice.painter.mai
ngt
US Value
us.Biography(Rembrandt) false
US Value
us.Biography(Rembrandt) true
19
Presentation Model
  • Based on the concept of region which contains
    attributes and possibly other regions.
  • Each region has a rectangular area associated.
  • Slices are translated to regions, one slice can
    be mapped to several regions.
  • Slice relationships are materialized with
  • Navigational relationships
  • Spatial relationships
  • Temporal relationships

20
Region Relationships
  • All region relationships can be guarded by a
    condition and/or an event.
  • Navigational relationships represent the
    classical hyperlinks. Possible events are
    mouse-click, mouse-over etc.
  • Temporal relationships have associated a timeout
    event (e.g. time based on a media play duration).
  • Spatial relationships specify a relative
    position (qualitative or quantitative) between
    two regions.

21
Presentation Model Example
22
Synchronization
  • Petri-net like notation for expressing
    synchronization (typical for multimedia data).
  • Temporal
  • Multidimensional

23
Prototype
  • XSLT code generation
  • Two code generators
  • HTML for PC Web browsers
  • WML code for WAP phone browsers

WML
XSL
HTML
XSL
ltxsltemplate matchslice-instancegt
ltTABLEgt ltxslapply-templates
select/gt lt/TABLEgt lt/xsltemplategt
ltxsltemplate matchslice-instancegt ltCARD
id_at_idgt ltxslapply-templates
select/gt lt/CARDgt lt/xsltemplategt
24
Rendering
25
Summary
  • Hera methodology originated from RMM suggests a
    sequence of design steps.
  • Our framework supports
  • integration of heterogeneous information (CM
    populated from several heterogeneous data
    sources)
  • automated presentation design AM serves as a
    presentation blue print from which a concrete
    presentation is derived (wrt. a query)
  • user/platform adaptation (adaptability and
    adaptivity)

26
Future Work
  • Adaptation in all design steps including the
    Conceptual Model and Integration Model.
  • Experiment with higher ontology languages (e.g.
    Oil) as the basis for the CM.
  • Further development of tools for presentation
    rendering.
  • Authoring tools that would help the designer to
    build specification models in all design steps.
