ATLAS: Automatically Tuned Linear Algebra Software

1

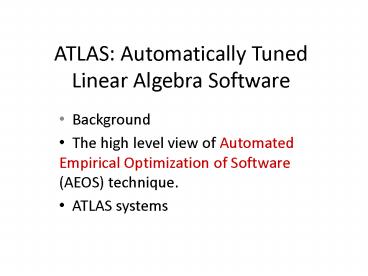

ATLAS Automatically Tuned Linear Algebra Software

• Background
• The high level view of Automated Empirical
  Optimization of Software (AEOS) technique.
• ATLAS systems

2
Background

• Computers are getting more complex
• Deeply pipelined
• Complicate memory hierarchy
• Many functional units
• How can the software keep up with the hardware?
• What to do if we really want our software to take
  full advantage of the hardware capacity
  (achieving near peak performance)?
• In many cases, performance is no longer important
• In other cases, performance is still important.
• One area is the kernel linear algebra routines,
  which are used in many HPC applications.

3
Basic linear algebra subprograms (BLAS)

• Identified by the community as important and the
  standard API is defined.
• Used in many high performance computing
  applications.
• Highly optimizable
• Highly tuned implementation can be 10 100 times
  faster than naïve implementations on a typical
  processor today.

4
How to achieve near peak performance?

• Historical approach
• The compiler approach
• The compilers promise the performance close to
  hand-crafted assembly.
• Many compiler optimizations to improve
  performance have been developed.
• Loop optimizations, Software pipelining,
  Instruction scheduling, Instruction selection.
• In theory, the compiler can do its job and
  generate efficient code.
• Practical issues efficient code will depend on
  MANY architectures parameters
• The number of caches, the cache size, the
  availability of special instructions, the number
  of functional units, the depth of pipeline stage
  in the functional unit, etc.
• The impact of the parameters and their
  interactions are NOT always well understood the
  compiler may not be able to make the best choice
  even if it knows all the parameters.
• Architectures evolve faster than the compilers.

5
How to achieve near peak performance?

• Historical approach
• Hand craft highly optimized BLAS libraries.
• This is still the current approach Intel has its
  own BLAS library.
• Doable with a lot of efforts.
• Need real experts
• The rate for processor evolution is difficult for
  programmers to keep up.

6
Challenges to achieve near peak performance

• Need to know the architecture features and used
  architecture specific optimizations
• The impacts of architecture features are usually
  unclear.
• accurate analytical modeling of systems is very
  difficult today.
• This is the major problem for the compiler
• Architectures evolve quickly.
• This is the major problem for the hand-craft
  approach.

7
AEOS approach

• Automated Empirical Optimization of Software
  (AEOS) a new paradigm
• Adaptive software
• Software package supports many implementations of
  each routine.
• In theory, it can include all architecture-specifi
  c optimizations for current generation
  processors.
• Likely have some optimizations that are
  important even for future generation hardware.
• Automatic selection of the best performing
  schemes
• Use the empirical measurement results for the
  selection.

8
AEOSs answer to the challenges

• Need to know the architecture features and used
  architecture specific optimizations.
• Architectures evolves quickly. But most of the
  time, it is still evolution, not revolution.
• Parameter changing rather than new features most
  of the time.
• In terms of important features, it is countable.
  This allows using a countable number of
  implementations to optimize for all features.

9
AEOSs answer to the challenges

• The impacts of architecture features are usually
  unclear (accurate analytical modeling of systems
  is very difficult today).
• This is the major problem for the compiler, but
  the empirical approach somewhat counters this.

10
AEOS requirement

• Isolation of performance-critical routines
• Different implementations for such routines that
  are optimized for different architecture
  features.
• A method of adapting software to different
  environments.
• Robust, context-sensitive timing mechanisms
• Appropriate search heuristics
• The importance of this depends on the number of
  different implementions.

11
AEOS software adaptation methods

• Needs a way to provide different implementations.
• Parameterized adaptation one copy of code with
  parameters.
• Source code adaptation
• multiple implementations
• Code generation use tools to automatically
  generated implementations.

12
AEOS timer requirements

• Timers are the center for any empirical approach.
• The fundamental issue is to make sure that the
  timing results reflect the actual performance.
• Cold cache/hot cache
• Highly loaded system/unload systems
• Wall time /CPU time
• Timer is even harder to design for distributed
  systems.

13
ATLAS

• Automatically tuned linear algebra software
• Mainly done by Clint Whaley at Univ. of Tenn.
• Clint got his PHD at FSU and is now at UTSA.
• ATLAS is one of the most successful application
  of the AEOS technique.
• Used in many systems such as MATLAB, MAPLE,
  Mathematica.
• Optimizing BLAS

14
More on BLAS

• Level 1 BLAS vector / vector operations
• Level 2 BLAS matrix /vector operations
• Level 3 BLAS matrix / matrix operations
• This paper focuses on the Level 3 BLAS (matrix
  multiply) that has the most optimization
  opportunities.

15
Level 3 BLAS support

• BLAS 3 level BLAS routines are all based on
  matrix multiply
• For (i1 iltN i)
• for (j1 jltN j)
• for(k1 kltN k)
• c(I, j) c(I, j) A(I, k)B(k, j)

16
ATLAS MM implementation

• Two levels
• L1 cache-contained MM (on-chip MM)
• Size and shapes are known
• General MM that is built on top of L1
  cache-contained MM

17
Optimizations in General MM

• May or may not copy A and B into block-major
  format all elements in each block in continuous
  memory.
• Block size is fixed N_B, depending on the L1
  cache size.
• Eliminates TLB problems, minimizes cache
  thrashing, and maximize cache line reuse.
• A is in transposed form in a block and B is in
  the non-transposed form.
• When to copy effectiveness depends on shapes and
  sizes of the array.
• Measure and compared.
• The paper only discusses the copied case.

18
Optimizations in General MM

• May or may not have a copy for C
• The result of L1 contained MM may write to C or a
  buffer C.
• With C
• Address alignment can be controlled (reduce cache
  interference)
• Data is contiguous, eliminate cache thrashing.
• Double the number of writes for C.
• Use a heuristic to decide whether to use C

19
Optimizations in General MM

• Two loop ordering
• I or J loop can be either be the outer loops.
• Choose the correct looping structure to fix L2
  cache.
• Blocking for higher level caches
• Needed only when panels of A and B overflow a
  particular level of cache.
• Memory footprint for computing one N_B x N_B
  section of C is 2KN_B N_B2.
• The number of variables is small enough, general
  MM does not require the use of routine generator.

20
L1 Cache-contained MM

• Obtained using code generator after the L1 cache
  size is determined.
• Once the cache size is determined, the shape and
  size of the MM can be decided.
• Register blocking for A, B, and, C can be
  decided.
• Reduce the loop overhead
• All iterations can be completed unrolled in
  theory. In ATLAS, only the K loop can be
  completely unrolled.

21
L1 Cache-contained MM

• Floating Point instructing ordering
• Cx cx aybz
• Some architecture has fused multiply/add unit ?
  this form will be ideal.
• Some architecture has pipelined floating point
  unit ? this form will be worst.
• Rearrange the order of instructions. Lots of
  followed by lots of or other unrelated
  instructions in between.

22
L1 Cache-contained MM

• Exposing parallelism
• Cx cx aybz
• Some architecture has multiple floating point
  functional units. Need to keep all functional
  units to maximize the performance.
• Feed the processor with more independent
  instruction streams unroll M and/or N loops.
• Finding the correct number of cache misses
• Modern processors has cache miss buffers
  allowing multiple outstanding cache miss before
  blocking the program. Should issue maximum number
  of cache miss in each cycle (or no cache miss).
• Only use M/N loop unrolling in ATLAS.

23
L1 Cache-contained MM code generator parameters

• On-chip MM is generated automatically too many
  options.
• A and/or B in standard or transposed form
• Loop unrolling factors (for M, N, and K)
• Choice of floating point instructions
• Choice of using generation time constant or
  run-time variables for loop dimensions
• Choice of use generation time contant or run-time
  variables for array indexing.

24
Put it all together

• Probing the system
• L1 cache size perform a fixed number of memory
  references and reduce the amount of memory
  addresses. A significant gap in timings is mark
  as the L1 cache size.
• Floating point units muladd or independent
  multiply and add pipeline (and pipeline depth)
  with simple register to register code.
• Number of Floating point registers
• Run code that requires more and more registers
  until the performance significantly drops.

25
Put it all together

• Generate on-chip MM
• With the probing, the algorithm search space is
  greatly reduced.
• Number of registers decides the feasibility of
  register blocking ? M/N blocking factor.
• Cache size determines the blocking factor of K
• Type of float-point unit further reduce the
  search space.
• ATLAS search through all possible M/N unrolling
  factors (for the number of registers), after
  that, all blocking factors and K-loop unrolling
  factor.
