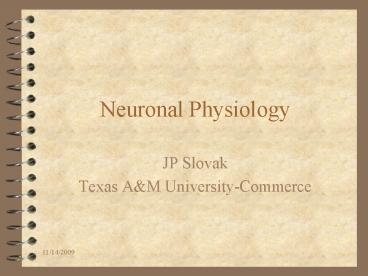

Title: Neuronal Physiology


1
Neuronal Physiology
  • JP Slovak
  • Texas AM University-Commerce

2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
  • Nerve and muscle cells utilize the membrane
    potential
  • Fluctuations take two forms
  • graded - short distance signals
  • action - serve over long distances
  • Nerve and muscle are considered excitable tissues

7
Graded potential
  • May change membrane potential by 10 mV
  • magnitude is related to the triggering event
  • Triggering event could be
  • stimulus
  • ligand-receptor interaction
  • spontaneous change in membrane potential

3
8
Graded potential
  • Current flows passively between active area and
    inactive area
  • direction of current movement of charges
  • visualize as a reversal of charges
  • the graded potential is decremental
  • can function only over short distances

4
9
(No Transcript)
10
Action potential
  • Spreads throughout membrane in non-decrementally
  • Polarization
  • Depolarization - moves toward 0 mV
  • Hyperpolarization - potential gt resting potential
  • Repolarization

5
11
(No Transcript)
12
Action potential
  • Threshold potential
  • 15 mV towards 0mV
  • Membrane Channels
  • voltage gated
  • chemical messenger gated
  • mechanically gated

6
13
Action potential
  • 1. Increase in Na permeability
  • 2. Inside becomes positive 30 mV
  • 3. K rushes out of cell
  • 4. Resting potential achieved
  • 5. Na-K pump restores normal ionic differences
    (Na outside, K inside)

7
14
Action potential
  • Neuron
  • cell body
  • dendrites
  • axon
  • collaterals
  • axon hillock
  • axon terminals

15
(No Transcript)
16
Action potential
  • Local current flow
  • inactive areas become depolarized
  • brings inactive area to threshold
  • Na channels are opened leading to action
    potential
  • original active area returns to resting potential
  • local current spreads to inactive area, causing
    it to become active

17
Action potential
  • Cycle repeats itself until the action potential
    spreads to the end of the axon
  • this occurs in unmyelinated fibers

18
Action potential
  • Saltatory conduction
  • Myelinated fibers
  • myelin composed of mainly lipds
  • ions cannot permeate the lipid barrier
  • myelin acts as insulator
  • oligodendrites - myelin forming cells in CNS
  • Schwann cells - myelin forming cells in PNS
  • nodes of Ranvier

19
(No Transcript)
20
(No Transcript)
21
Action potential
  • Diameter influences velocity
  • Refractory period -
  • Absolute refractory period - sodium channels must
    return to closed state, but capable of opening
  • relative refractory period - potassium channels
    are in a closed state.
  • refractory period insures unidirectional
    propagation

22
Neuronal integration
  • Synapse
  • presynaptic neuron
  • synaptic knob
  • synaptic vesicles
  • neurotransmitters
  • postsynaptic neuron
  • synaptic cleft

23
Neuronal integration
  • Synapse operate in one direction only
  • Ca channels in synaptic knob open in response to
    action potential
  • this causes exocytosis of neurotransmitter
  • interacts with receptor on postsynaptic neuron
  • this triggers ion channels in postsynaptic neuron

24
(No Transcript)
25
Neuronal integration
  • Excitatory synapse
  • inhibitory synapse
  • EPSP (excitatory postsynaptic potential)
  • IPSP (inhibitory postsynaptic potential)
  • synaptic delay
  • a synapse is either excitatory or inhibitory
  • neurotransmitters are quickly removed

26
Neuronal integration
  • Some neurotransmiiters use second messengers
  • GPSP (grand postsynaptic potential)
  • temporal summation - sum of EPSPs occuring close
    in time
  • spatial summation - sum of several inputs that
    spatially close
  • action potentials initiated at axon hillock - it
    has the lowest threshold
