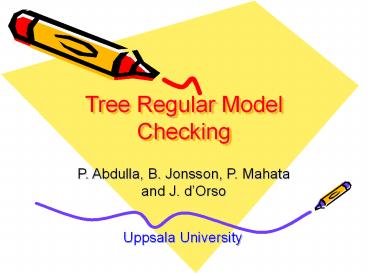

Tree Regular Model Checking

1
Tree Regular Model Checking

• P. Abdulla, B. Jonsson, P. Mahata and J. dOrso

Uppsala University
2
Presentation Overview

• Aim
• Regular model checking
• Trees, tree relations
• Transitive closures
• Results, conclusions

3
Aim
A uniform analysis framework for systems

• With counters
• With stacks
• With channels
• parameterized

These systems can be characterized by
finite-state automata.
4
Regular model checking
Most important operation computing
transitive closures.

• Why ? Because it allows many analysis
• Reachability
• safety properties
• fairness properties

5
Example
A simple token passing protocol
6
Example
A simple token passing protocol
7
Example
A simple token passing protocol
8
Example
A simple token passing protocol
9
Our Contribution
Regular Model Checking is nice, but
its only valid for linear or circular
topologies !
Idea extend to trees instead !
10
Trees
e
this node is called root
a
0
1
a
b
01
00
10
c
label
b
d
010
node
d
11
Tree Automata
input symbol
q1
q2
state
12
Tree Automata
Run
Input
13
Tree Automata
Run
Input
q1
q1
Transition
0
14
Tree Automata
Run
Input
q1
q2
q2
q2
Transition
1
15
Tree Automata
Run
Input
q2
q1
q2
q2
q1
q2
Transition
or
q2
16
Tree Automata
Run
Input
q2
q2
q1
q2
q2
q2
q2
Transition
and
q2
17
Tree Automata
Run
Input
q2
q2
q1
q2
q2
q2
Accept !
18
Tree Relations
d
e
f
19
Tree Relations
We represent a pair of similar trees by a tree
on an alphabet with pairs
d
(a,d)
e
f
(b,e)
(c,f)
20
History Automata
input
x
T
x
21
History Automata
input
intermediate
x
T
T
x
x
x
22
History Automata
input
output
intermediate
x
x
T
T
x
x
T
x
x
23
History Automata
In (word) regular model checking, concept of
columns
Transpose this to trees represent a sequence of
runs into single run.
input
output
intermediate
x
q1
x
q4
T
T
x
q2
q3
x
T
q5
q6
x
x
run 1
run 2
24
History Automata
In (word) regular model checking, concept of
columns
Transpose this to trees represent a sequence of
runs into single run.
input
output
x
x
T
x
x
T
run 12
25
Symbolic Automata
Property of H.A.s accept the transitive closure.
Problem infinite size !
Approach apply standard subset construction
(determinization)
Supporting data structure for sets regular
expressions.
26
Results
We have run a prototype tool on several examples

• Token-passing protocol (12 ways)
• percolate protocol (compute disjunctions)
• Tree arbiter (mutual exclusion)

Paper accepted at CAV02.
27
Future work

• Change underlying automata representation
  (matrices instead of BDDs)
• Expand to new types of systems (e.g. pushdown
  systems)
• Create a graphical interface
