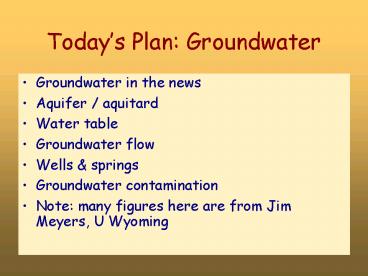

Todays Plan: Groundwater

1
Todays Plan Groundwater

• Groundwater in the news
• Aquifer / aquitard
• Water table
• Groundwater flow
• Wells springs
• Groundwater contamination
• Note many figures here are from Jim Meyers, U
  Wyoming

2
Groundwater in the News

• Russian mine flooded by underground lake
  (groundwater) (10/23)
• 46 miners trapped 44 rescued, one dead, one
  missing

3
The Hydrologic Cycle
4
Groundwater aquifers

• What is an aquifer?
• Any geologic unit through which water can move
  easily (i.e. its permeable)( high
  permeability)
• Porosity how much water a geologic material can
  hold

5
Opposite of an aquifer?

• Aquitard / aquiclude
• retards the flow of groundwater (its almost
  never really zero)

6
Groundwater aquifers

• What would be the properties (porosity/permeabilit
  y) of conglomerate?
• High porosity, high permeability

7
Groundwater aquifers

• What would be the properties (porosity/permeabilit
  y) of unfractured granite?
• Low porosity, low permeability

8
Groundwater aquifers

• Can you think of a rock/sediment with high
  porosity and low permeability?

9
Groundwater aquifers

• Can you think of a rock/sediment with low
  porosity and high permeability?

10
The Water Table
11
Water Table Topography
12
The Water Table
13
The Water Table
14
Groundwater Flow

• Groundwater velocity
• Depends on permeability and hydraulic gradient
  (slope of water table)
• Ranges from 100 m/day to mm/day
• A good round number 1 ft/day

15
(No Transcript)
16
(No Transcript)
17
How is this possible?
18
Gaining Stream
19
Losing Stream
20
Unconfined Aquifer
recharge area pollutable area!
21
Confined Aquifer
22
Potentiometric (Pressure) surface
23
Artesian Well
24
Artesian Well

• Well water rises above water table
• Flowing artesian well rises to surface of earth

25
Pumping Animation

• Go to animation at http//almandine.geol.wwu.edu/
  dave/courses/2003/spring/101/lectures/water_level
  .swf

26
Your WarmUp AnswersPart B Pumping wells

• That was a really cool animation but I just dont
  understand what is happening.
• Lets look at the situation again go!

27
Your WarmUp AnswersPart B Pumping wells

• In the low permeability case the water is pumped
  primarily from the area directly around the well,
  whereas with the higher permeability the water
  seems to be drawn from a more broad area
  surrounding the well "hole". Since permeability
  refers to the ability of a material to let a
  fluid move through it, the low permeability
  doesn't allow the water to venture far from the
  path of pressure change (the "hole" of the well).

28

• What happens when this well is heavily pumped?

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33

• What happens when a new well here is heavily
  pumped?

34
Flow direction can change
