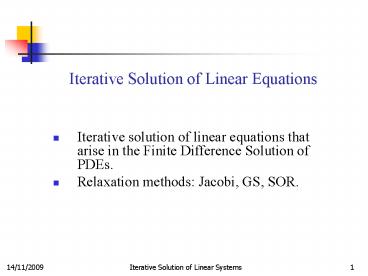

Iterative Solution of Linear Equations

1
Iterative Solution of Linear Equations

• Iterative solution of linear equations that arise
  in the Finite Difference Solution of PDEs.
• Relaxation methods Jacobi, GS, SOR.

2
General remarks on direct and iterative methods
for linear systems

• Until fairly recently, in many real applications,
  direct methods were often preferred to iterative
  methods because of their robustness and
  predictable behaviour.
• However the increasing need for solving very
  large sparse systems, together with substantial
  progress in developing new efficient iterative
  techniques, has led to a rapid shift towards
  iterative methods.

3
General remarks (continued)

• In the early days iterative methods were often
  specialised, built for a particular application.
• Their efficiency tended to rely on careful
  choices for a number of parameters.
• Recently iterative methods started to approach
  the quality and robustness of direct solvers.

4
General remarks (continued)

• In 3D (or large 2D) models iterative methods are
  inevitable.
• Both memory and computational requirements in
  such cases are serious challenges for the best
  direct solvers currently available.
• Iterative methods offer better prospects in both
  terms and are easier to implement on modern
  high-performance (parallel) architectures.

5
General remarks (continued)

• Iterative methods are based on computing a
  sequence of iterates, such that
• In practice, the iteration continues until the
  approximate solution reaches the true solution
  within some prescribed tolerance

6
Classification of iterative methods

• Relaxation methods (Stationary Iterations)
• Jacobi
• Gauss-Seidel
• SOR, SSOR
• ADI
• Non-stationary Iterations
• Projection (minimisation) methods (COMP60092).
• steepest descent.
• minimal residual.
• Krylov subspace methods (COMP60092).
• Multigrid method (COMP60092).

7
Relaxation Methods

• These were the first iterative techniques used
  for the solution of large sparse systems.
• Starting with a given initial solution, these
  methods modify one (or a few) components of the
  solution at a time until convergence is reached.
• Each of the modifications (relaxation steps)
  annihilates one (or a few) components of a
  residual vector.
• Relaxation methods are rarely used today as
  stand-alone methods they are often combined
  with more sophisticated iterative techniques
  (like Krylov iterative methods) to form very
  successful methods.

8
Relaxation Methods

• Iterative methods can be viewed as an attempt to
  approximate the inverse of the matrix A by the
  inverse of part of the matrix A that is easy to
  compute.
• Consider the matrix decomposition
• where Ddiag(A) is the diagonal part of A, E
  is the strictly lower triangular part of A, and
  F is the strictly upper triangular part of A

9
Jacobis Method

• Consider the system of linear equations
• The i-th equation is given by

10
Jacobis Method

• Determine the i-th component of the new
  approximation so as to annihilate the i-th
  component of the residual vector
• Repeat this step for all components of x

11
Jacobis Method Applied to Laplaces Equation

• Finite Difference Approximation to Laplaces
  equation
• Hence Jacobis method is

12
Vector Form of Jacobis Method

• Return to the general system of linear equations
• Jacobis method is given by
• This can be written in matrix-vector form as

13
Gauss-Seidel iteration

• Determine the i-th component of the new
  approximation so as to annihilate the i-th
  component of the residual vector (using the
  latest (most up-to-date) data to determine the
  residual)
• Repeat this step for all components of x

14
Gauss-Seidel iteration
15
Gauss Seidel Iteration Applied to Laplaces
Equation

• Finite Difference Approximation to Laplaces
  equation
• Hence the Gauss Seidel iteration is

16
Vector Form of Gauss Seidel Iteration

• Return to the general system of linear equations
• The Gauss Seidel iteration is given by
• This can be written in matrix-vector form as

17
Jacobi and Gauss-Seidel Iterations

• Both Jacobi and Gauss-Seidel iterations are of
  the form
• where A is a splitting of A.
• In Jacobis case we have
• In Gauss-Seidels case we have

18
SOR (Successive Over-Relaxation)

• The Gauss-Seidel iteration is attractive because
  of its simplicity. Unfortunately, if the
  spectral radius of
  is close to 1, the method can be prohibitively
  slow, because the error tends to 0 like
  . To rectify this slow convergence,
  consider the following modification of the
  Gauss-Seidel iteration

19
SOR Applied to Laplaces Equation

• Finite Difference Approximation to Laplaces
  equation
• Hence SOR is

20
SOR

• The SOR iteration can be viewed as taking a
  weighted average of the current iterate and the
  next Gauss-Seidel iterate
• Equivalently, SOR can be viewed as using the step
  to the next Gauss-Seidel iterate as a search
  direction along which to update the current
  approximation

21
SOR

• The previous formula defines Successive
  OverRelaxation (SOR). In matrix terms, the SOR
  iteration is given by
• where
• and

22
SOR

• Thus SOR can be written as

23
SOR

• For a few structured (but important) problems
  (like the discrete Poisson equation), the optimal
  value of the relaxation parameter is known.
  In more complicated problems, it is necessary to
  perform a fairly sophisticated eigenvalue
  analysis of the matrix in
  order to determine an appropriate value for .

24
Convergence of iterative methods

• Important questions
• Does our method converge to a true solution?
• How fast does our method converge?

25
Splittings and Convergence

• The Jacobi and Gauss-Seidel iterations are
  typical members of a large family of iterations
  of the form
• where
• is a so-called splitting of the matrix A.

26
Splittings and Convergence

• Whether or not the iteration () converges to
• depends on the eigenvalues of the iteration
  matrix
• Definition the spectral radius of the matrix A
  is given by

27
Splittings and Convergence

• Theorem
• Assume that A is non-singular so that
• is well-defined.
• If M is non-singular and the spectral radius of


28
Convergence of Jacobis method

• Jacobis method
• We can show that
• provided that the matrix A is strictly
  diagonally dominant by rows.
• In general, the more diagonally dominant A the
  more rapid the convergence, but there are
  counterexamples to this rule.

29
Convergence of Gauss Seidel iteration

• Gauss Seidel iteration
• We can show that, provided that A is symmetric
  and positive definite, then the Gauss-Seidel
  iteration converges for any starting vector

30
Convergence of SOR

• SOR iteration
• We can also show that, provided that A is
  symmetric and positive definite and
  then SOR converges for any starting
  vector

31
NonStationary Iterations

• A symmetric, positive definite,
• Conjugate Gradient (CG) Method,
• Preconditioned CG Method.
• A nonsymmetric or indefinite,
• GMRES, Generalized minimum residual method,
• QMR, Quasi-minimal residual method,
• CGS, Conjugate gradients squared method,
• BiCG, BiConjugate Gradient method,
• Bi-CGSTAB, BiConjugate gradients stabilized
  method.

32
References for further reading

• Y.Saad Iterative Methods for Sparse Linear
  Systems, PWS Publishing, Boston, 1995.
• G.H.Golub C.F.Van Loan Matrix Computations,
  Johns Hopkins University Press, 1996.
• I.K. Eriksson, D. Estep, P. Hansbo, C. Johnson
  Computational Differential Equations, Cambridge,
  1996.
