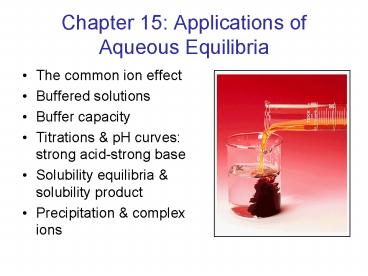

Chapter 15: Applications of Aqueous Equilibria

1
Chapter 15 Applications of Aqueous Equilibria

• The common ion effect
• Buffered solutions
• Buffer capacity
• Titrations pH curves strong acid-strong base
• Solubility equilibria solubility product
• Precipitation complex ions

2
The Common Ion Effect

• The shift in equilibrium that occurs because of
  the addition of an ion already involved in the
  equilibrium reaction.
• AgCl(s) ? Ag(aq) Cl?(aq)

• Concept test What happens if you add NaF(s) into
  a solution of HF?

3
The Common-Ion Effect

• Consider a solution of acetic acid
• If acetate ion is added to the solution, Le
  Châtelier says the equilibrium will shift to the
  ..?

4
The Common-Ion Effect

• The extent of ionization of a weak electrolyte
  is decreased by adding to the solution a strong
  electrolyte that has an ion in common with the
  weak electrolyte.

5
The Common-Ion Effect

• Calculate the fluoride ion concentration and pH
  of a solution that is 0.20 M in HF and 0.10 M in
  HCl.
• Ka for HF is 6.8 ? 10-4.

6
The Common-Ion Effect
Because HCl, a strong acid, is also present, the
initial H3O is not 0, but rather 0.10 M.
7
The Common-Ion Effect

• x
• 1.4 ? 10-3 x

• Therefore, F- x 1.4 ? 10-3
• H3O 0.10 x 1.01 1.4 ? 10-3 0.10 M
• So, pH -log (0.10)
• pH 1.00

8
A Buffered Solution

• ? Resists change in its pH when either H or OH?
  are added.
• Example 1.0 L of 0.50 M H3CCOOH
• 0.50 M H3CCOONa
• pH 4.74
• Adding 0.010 mol solid NaOH raises the pH of the
  solution to 4.76, a very minor change.
• Conceptual question Why solid NaOH?

9
A Buffered Solution
Most effective when balanced and relatively high
concentration of acid base conjugate pair.
10
Henderson-Hasselbalch Equation
Useful for calculating pH when the
A?/HA ratios are known.
Remember where this came from? Re-derive if
necessary
11
HendersonHasselbalch Equation
What is the pH of a buffer that is 0.12 M in
lactic acid, HC3H5O3, and 0.10 M in sodium
lactate? Ka for lactic acid is 1.4 ? 10-4.
12
HendersonHasselbalch Equation
pH 3.85 (-0.08) pH 3.77
Best to choose an acid with a pKa close to
desired pH
13
Characteristics of Buffer solutions

• Buffers contain relatively large amounts of weak
  acid and corresponding base.
• Added H reacts to completion with the weak base.
• Added OH? reacts to completion with the weak
  acid.
• The pH is determined by the ratio of the
  concentrations of the weak acid and weak base.
• Buffer capacity is represents the amount of H or
  OH? the buffer can absorb without a significant
  change in pH.

14
When Strong Acids or Bases Are Added to a Buffer

• safe to assume that all of the strong acid or
  base is consumed in the reaction.

15
Calculating pH Changes in Buffers

• A buffer is made by adding 0.300 mol HC2H3O2 and
  0.300 mol NaC2H3O2 to enough water to make 1.00 L
  of solution. The pH of the buffer is 4.74.
  Calculate the pH of this solution after 0.020 mol
  of NaOH is added.

16
Calculating pH Changes in Buffers

• Before the reaction, since
• mol HC2H3O2 mol C2H3O2-
• pH pKa -log (1.8 ? 10-5) 4.74

The 0.020 mol NaOH will react with 0.020 mol of
the acetic acid HC2H3O2(aq) OH-(aq) ???
C2H3O2-(aq) H2O(l)
17
Calculating pH Changes in Buffers
Now use the HendersonHasselbalch equation to
calculate the new pH
pH 4.74 0.06 pH 4.80
18
Buffered Solutions

• More practice,group problem solving
• See Handout

19
Titrations strong acid,strong base.

• A plot of pH of the solution being analyzed as a
  function of the amount of titrant added.
• Equivalence (stoichiometric) point Enough
  titrant has been added to react exactly with the
  solution being analyzed.

20
The pH curve for the titration of 100.0 mL of
0.50 M NaOH with 1.0 M HCl.
Strong base with a strong acid
21
Titration of a Weak Acid with a Strong Base
With weaker acids, the initial pH is higher and
pH changes near the equivalence point are more
subtle.
22
Titrations of Polyprotic Acids
In these cases there is an equivalence point for
each dissociation.
23
The Solubility Product
Ex The precipitation of bismuth sulfide.
24
The Solubility Product

• Solubility s concentration of Bi2S3
  that dissolves, which equals 1/2Bi3 and
  1/3S2?.
• Ksp is constant (at a given temp)
• s is variable (especially with a common ion
  present)
• Lets Practice

25
Factors that Affect Solubility

• Solubility and pH
• Again we apply Le Châteliers principle
• If the F- is removed, then the equilibrium shifts
  towards the decrease and CaF2 dissolves.
• F- can be removed by adding a strong acid
• As pH decreases, H increases and solubility
  increases.
• The effect of pH on solubility can be dramatic.

26
Factors Affecting Solubility

• The Common-Ion Effect
• If one of the ions in a solution equilibrium is
  already dissolved in the solution, the
  equilibrium will shift to the left and the
  solubility of the salt will decrease.

27
Factors Affecting Solubility

• pH
• If a substance has a basic anion, it will be more
  soluble in an acidic solution.
• Substances with acidic cations are more soluble
  in basic solutions.

28
Factors Affecting Solubility

• Complex Ions
• Metal ions can act as Lewis acids and form
  complex ions with Lewis bases in the solvent.

29
Factors Affecting Solubility

• Complex Ions
• The formation of these complex ions increases the
  solubility of these salts.

30
Factors that Affect Solubility

• Formation of Complex Ions Continued
• Consider the formation of Ag(NH3)2
• The equilibrium constant for the reaction is
  called the formation constant, Kf
• The stability of the complex ion can be judged by
  the size of the Kf

31
Factors that Affect Solubility
32
Equilibria Involving Complex Ions

• Complex Ion A charged species consisting of
  a metal ion surrounded by ligands
• (Lewis bases).
• Coordination Number Number of ligands
  attached to a metal ion.
• (Most common are 6 and 4.)
• Formation (Stability) Constants The
  equilibrium constants characterizing the
  stepwise addition of ligands to metal ions.

33
Factors Affecting Solubility

• Amphoterism
• Amphoteric metal oxides and hydroxides are
  soluble in strong acid or base, because they can
  act either as acids or bases.
• Examples of such cations are Al3, Zn2, and Sn2.

34
Will a Precipitate Form?

• In a solution,
• If Q Ksp, the system is at equilibrium and the
  solution is saturated.
• If Q lt Ksp, more solid will dissolve until Q
  Ksp.
• If Q gt Ksp, the salt will precipitate until Q
  Ksp.

35

• Qualitative analysis is designed to detect the
  presence of metal ions.
• Quantitative analysis is designed to determine
  how much metal ion is present.
