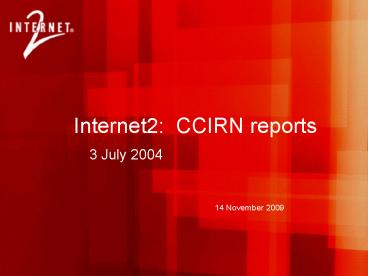

Internet2 CCIRN reports

• 3 July 2004

2
Internet2 E2E piPEs

• Project End-to-End Performance Initiative
  Performance Environment System (E2E piPEs)
• Approach Collaborative project combining the
  best work of many organizations, including
  DANTE/GEANT, Daresbury, EGEE, GGF NMWG,
  NLANR/DAST, UCL, Georgia Tech, etc.
• NSF-sponsored workshop http//e2epi.internet2.ed
  u/WK03/index.html

3
piPEs

• Enable end-users network operators to
• determine E2E performance capabilities
• locate E2E problems
• contact the right person to get an E2E problem
  resolved.
• Enable remote initiation of partial path
  performance tests
• Make partial path performance data publicly
  available
• Interoperable with other performance measurement
  frameworks

4
Measurement Infrastructure Components
5
Project Phases

• Phase 1 Tool Beacons
• BWCTL (Complete), http//e2epi.internet2.edu/bwctl

• OWAMP (Complete), http//e2epi.internet2.edu/owamp

• NDT (Complete), http//e2epi.internet2.edu/ndt
• Phase 2 Measurement Domain Support
• General Measurement Infrastructure (Prototype)
• Abilene Measurement Infrastructure Deployment
  (Complete), http//abilene.internet2.edu/observato
  ry
• Phase 3 Federation Support
• AA (Prototype optional AES key, policy file,
  limits file)
• Discovery (Measurement Nodes, Databases)
  (Prototype nearest NDT server, web page)
• Test Request/Response Schema Support (Prototype
  GGF NMWG Schema)

6
piPEs Deployment
7
American / European Collaboration Goals

• Awareness of ongoing Measurement Framework
  Efforts / Sharing of Ideas (Good / Not
  Sufficient)
• Interoperable Measurement Frameworks (Minimum)
• Common means of data extraction
• Partial path analysis possible along
  transatlantic paths
• Open Source Shared Development (Possibility, In
  Whole or In Part)
• End-to-end partial path analysis for
  transatlantic research communities
• VLBI Haystack, Mass. ?? Onsala, Sweden
• HENP Caltech, Calif. ?? CERN, Switzerland

8
Other ongoing collaborations

• US networks under aegis of JET
• Abilene ESnet deployment already
• Coordination/deployments for key user communities
• APAN deployment
• Tokyo, Fukuoka, Korea(?)
• Focus bwctl (scheduled tests)
• GGF NMWG
• Eric Boyd co-chair
• Work on creating and revising schemata for test
  requests and responses
• Beginning work on a model policy for
  authorization roles that can be used as a
  starting point for campuses/domains

9
Extending the research of RE networking

• Report on the April Workshop

10
Background

• Since Fall 2001, small BoF has met at Internet2
  member meetings
• Focus on sharing information about needs,
  activities regarding places not well connected to
  RE networks
• Geographical e.g. mountains of Chile, island
  territories of France
• Market/Economic sub-Saharan Africa
• Technical ocean floors, field researchers
• Fall 2003, proposal to host workshop focusing on
  development agencies and funding resources
• Held post Internet2 Spring Member Meeting,
  Arlington, VA

11
Synergies between NRENs and aid and funding
agencies

• Science, funding and aid agencies
• and you are? No or very little knowledge about
  NRENs and what it is that NRENs do or about
  programs
• duplication, costs, lack of coordination
• expressed interest in exploring actions or
  activities the group might undertake beyond
  simple information sharing on an ad hoc basis.
• Global research and education networking
  community and key science, funding and aid
  agencies How can get to know each other (and
  know about what we do)
• Overviews of agencies information and
  communication technology ICT programmatic areas
  and related programs
• The need for the global research and education
  community to also do outreach on what it is that
  what we do, what our members do and that
  illustrate real proof of concept instantiations,
• show that there are things we could do together

12
Workshop Goals

• get to know a bit about each other
• to have a a forum to explore ways in which we
  may work together to address the challenges in
  extending the reach of Internet infrastructure
  and networks in support of research, education
  and knowledge sharing
• what do you see as the gap areas the needs?
  Before and after the workshop

13
Steering Committee many thanks!

• Les Cottrell (SLAC)
• Curtis White (Allied Communications)
• Bob Dixon (Ohio State)
• Heather Boyles (Internet2)
• Peter Highnam (NIH)
• Lori Perine (NSF)
• Micah Beck (UT)
• Mary Kratz (Internet2)
• Steven Huter (NSRC, Univ. Oregon)
• Art St George (Univ. New Mexico)
• Dany Vandromme (RENATER)
• George McLaughlin (AARNet)
• Jim Williams (Indiana Univ)
• sharon Moskwiak (Internet2)
• Anil Srivastava, AcrossWorld
• Ana Preston (Internet2)

14
Expanding the reach of advanced networking

• Highlights
• 80 participants
• a keynote speech by Mohamed Muhsin,
  Vice-President and CIO of the World Bank
• presentations on programs from several science,
  funding and aid agencies including the National
  Science Foundation, National Institutes of
  Health, the Organization of American States, the
  World Bank, the Inter-American Development, USAID
  and other European and Australian agencies for
  international development.
• presentations from members of the global
  research and education community on approaches
  for expanding network access to resource limited
  settings and working with agencies

15
Notes from workshop

• roles of agencies
• Expect return on investment
• self-sustainability
• opportunities generated capabilities and tools

• training project learning plans
• road maps
• they want to work with our community and we want
  to work with them
• Sharing experiences
• solutions not just talk
• Internet as a leveling mechanism
• there are very compelling illustrations from the
  global NREN community that show that we can work
  together

16
Next steps

• working group yes
• defining scope charter? of the group
• Action proceedings mailing list and chair(s)
• Action continue dialogue/bridge with World Bank
  and all agencies represented here
• Action catalog possible projects and who may be
  able to lead/manage on behalf of group
• clearinghouse of info and regular communications

• Best practices and lessons learned
• Case studies that help drive approaches
• Issues (poverty, education)
• Pricing and policy
• What are the needs? We need to have the needs
  expressed by the ones that have the needs

17
Cont.

• working together to further articulate the role
  of NRENs (targeted to government and policy
  makers)
• Value of NRENs and what they bring to the table
  value that enables not just scientific and
  technological improvements but broader social and
  economical impact
• ROI targeted to Ministers of Finance
• Building Capacity
• Networks are an enabler
• PEOPLE!
• Projects that strategically benefit economies,
  health, environment

18

• http//international.internet2.edu/intl_connect/ag
  enda.html

19
Network Security, Middleware and Trust Federations
20

• Supported by Indiana University and through
  relationship with EDUCAUSE and Internet2.
• The REN-ISAC is an integral part of the higher-ed
  strategy to improve network security by providing
  timely warning and response to cyber threat and
  vulnerabilities, improving awareness, and
  improving communications.
• Supports efforts to protect national cyber
  infrastructure by participating in the formal
  U.S. ISAC infrastructure.
• Receives, analyzes, and disseminates network
  security operational, threat, warning, and attack
  information within higher education.
• Information is gathered from instrumentation,
  constituents, network engineers, DHS, other
  sector ISACs, other network security
  organizations, and vendors.
• 24 x 7 Watch Desk, ren-isac_at_iu.edu, 1 (317)
  278-6630
• http//www.ren-isac.net
• http//www.terena.nl/tech/task-forces/tf-csirt/mee
  ting11/RENISAC-Pearson.pdf

21
REN-ISACInformation is derived from

• Network instrumentation
• Abilene NetFlow data
• Abilene router ACL counters
• Arbor PeakFlow analysis of NetFlow data
• Abilene NOC operational monitoring systems
• Constituents related to incidents on local
  networks
• Network engineers related to national RE
  backbones

22
REN-ISACInformation is derived from

• DHS sources include
• IAIP Daily Open Source Report
• http//www.nipc.gov/dailyreports/dailyindex.htm
• Advisories
• Regular conference calls
• Other sectors ISACs
• Other network security organizations
• Vendors

23
Current and Planned Activities

• Relationships and outreach to complimentary
  organizations and efforts
• REN-ISAC Registry
• Watch Desk, 24 x 7
• Regular information sharing with DHS, ISACs,
  others
• Abilene NetFlow analysis
• Abilene router ACL statistics
• Arbor PeakFlow analysis
• Per-host threat reports to member institutions
• Policy and privacy statements and agreements

24
International Coordination

• TF-CSIRT
• Doug Pearson made presentation on REN-ISAC in
  January 2004
• GEANT
• Revisit network security coordination week after
  next at meeting in Cambridge
• Coordinate with GN2 security activities

25
Middleware and security

• Internet2 Middleware Initiative launched 1999
• Focus on enterprise/campus
• Focus on core middleware (that supports upperware
  e.g. grid middleware)
• Focus on inter-institutional authentication and
  authorization supporting collaboration, access
  to digital resources, virtual organizations
• eduPerson attributes
• Shibboleth authentication transport software
• National Trust Federation (InCommon) initially
  built on institutions using Shibboleth

26
Shibboleth Status

• http//shibboleth.internet2.edu/
• Open source, privacy preserving federating
  software
• Being very widely deployed in US and
  international universities
• SWITCH (Switzerland has adopted)
• JISC (UK) is adopting funding development of
  complementary pieces
• Growing development activities in several
  countries, providing resource manager tools,
  digital rights management, listprocs, etc.

27
InCommon federation

• Federation operations Internet2
• Federating software Shibboleth 1.1 and above
• Federation data schema - eduPerson200210 or later
  and eduOrg200210 or later
• Became operational April 5, with several early
  entrants to help shape the policy issues.
• Precursor federation, InQueue, has been in
  operation for about six months and will feed into
  InCommon
• http//incommon.internet2.edu

28
International federation peering

• Shibboleth-based federations being established in
  the UK, Netherlands, Finland, Switzerland,
  Australia, Spain, and others
• International peering meeting slated for October
  14-15 in Upper Slaughter, England
• Issues include agreeing on policy framework,
  comparing policies, correlating app usage to
  trust level, aligning privacy needs, working with
  multinational service providers, scaling the WAYF
  function

29
Security at Line Speed (SALSA)

• Ken Klingenstein heading both middleware and
  security efforts
• NSF-funded workshop Security at Line Speed
• http//apps.internet2.edu/sals/
• Network authentication, authorization
• SALSA net-auth working group
• Leverage Middleware work Shibboleth, InCommon,
  international peering
• Relationship to mobility work of TERENA, GN2

30
Abilene and HOPI national infrastructures
Abilene and NLR Fiber Footprints
31
Hybrid Optical Packet Infrastructure (HOPI)

• Since last CCIRN
• HOPI Design team formed
• White Paper released http//hopi.internet2.edu
• Comments sought!
• Moving forward with initial 3 node deployment
  September 2004
• Dependent on NLR buildout
