Title: Rolling Stock Wot, no DMUs


1

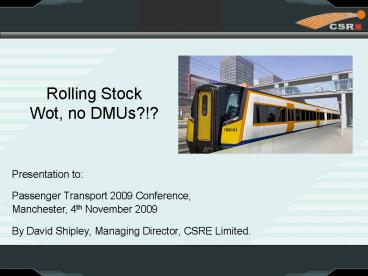

Rolling StockWot, no DMUs?!?
  • Presentation to
  • Passenger Transport 2009 Conference,
  • Manchester, 4th November 2009
  • By David Shipley, Managing Director, CSRE Limited.

2
Background to CSRE
  • Established 2006, to promote introduction of
    Chinese rolling stock to Europe
  • David Shipley represented CSR Ziyang Locomotive
    Co., Ltd. since 2004
  • Company now represents three CSR and CNR
    factories, with combined ability to produce -
  • 350 diesel electric locomotives
  • 26,000 freight wagons and
  • 1,250 passenger cars (coaches / EMU / DMU)
  • per annum.

3
Capabilities of CSRE
  • Procurement
  • Vehicles and components from China
  • Services from Europe to support manufacturers
    and
  • Maintenance services on behalf of end-user
  • Project Management
  • Arrangement of Finance
  • Delivery into Service
  • After-Sales Support
  • Creating Partnerships and Making Marriages.

4
  • Current Projects

5
DMUs and EMUs for the UK (1)
  • Developed product brand Pacemaker
  • Shortlisted for two projects
  • 202 DMU cars for UK Department for Transport
  • Project superseded continuing to talk to
    operators and possibility of small prototype
    build to start process
  • 76 EMU cars for London Midland Franchise
  • Planning for introduction 2012-2013.

6
DMUs and EMUs for the UK (2)
  • DMUs - 2, 3 and 4 car units
  • MAN under-floor engines on all cars
  • Voith hydro-mechanical transmission
  • low, medium high density seating options
  • 160 km / hr maximum speed
  • Euro Stage 3a emission control (3b from 2012).

7
DMUs and EMUs for the UK (3)
  • EMUs - 4 car units
  • 25 kV ac overhead electric supply
  • ac three phase traction motors
  • medium density seating, with First Class
    compartment
  • 160 km / hr maximum speed.

8
DMUs and EMUs for the UK (4)
9
DMUs and EMUs for the UK (5)
10
DMUs and EMUs for the UK (6)
11
DMUs and EMUs for the UK (7)
12
EMUs recently delivered to Georgia
Chinese trains in Europe!
13
High Speed Hybrid EMU for the UK (1)
  • Developed product brand Polaris
  • Attracted serious interest from several existing
    and potential open access operators
  • Ready to step in with an affordable product,
    should current negotiations with Agility for the
    Inter City Express project, not be successfully
    concluded.

14
The Polaris Product (1)
  • 225 km / hr maximum speed, available with or
    without tilt
  • Concentrated power / distributed drive
    configuration
  • Typically configured as 2 6 train sets, with
    capacity for 334 seated passengers
  • First Class, Standard Class, catering, disabled
    and luggage facilities all provided on board the
    train.

15
The Polaris Product (2)
Each power car fitted with two x 765 kW diesel
engines one x 3 MW traction system Each train
set fitted with eight motor bogies eight
trailer bogies
16
The Polaris Product (3)
PANTOGRAPH
PANTOGRAPH
GPSRECEIVER
DRIVER INTERFACE
1. Route data from Driver Interface 2. Train
position from GPS Receiver
Power Demand Calculation
Engines Started / Stopped as required
17
The Polaris Product (4)
18
The Polaris Product (5)
19
The Polaris Product (6)
20
Metro Cars for Europe
  • Developed product brand Pulsar
  • Currently tendering for Stockholm and Helsinki
    Metros
  • Expressions of interest lodged for Bucharest,
    Warsaw and Sofia Metros
  • Building on success of 43 market share within
    the Chinese domestic market.

21
The Pulsar Product (1)
  • Integrated with traction systems from four
    different global suppliers Siemens, Bombardier,
    Alstom and Mitsubishi
  • Highly reliable up to 100,000 km / casualty
  • Highly energy efficient best in class
    electrical systems, with regeneration
  • Over 1,200 vehicles supplied, with automatic
    train operation (ATO).

22
The Pulsar Product (2)
23
The Pulsar Product (3)
24
Strategy for a Win-Win Situation
  • Chinese manufacturers are seen as a threat by EU
    rolling stock groups
  • Essential to -
  • Highlight advantages to stakeholders
  • Build relationships with local companies
  • Consultants
  • Suppliers
  • After Sales Support organisations
  • Maximize the opportunities for localisation
  • Introduce finance solutions.

25
Localisation of Final Assembly
  • China gains advantage on labour intensive and
    highly automated processes
  • Advantageous to carry out certain final assembly
    work in end-user territory
  • Desire to establish facilities in Western
    Eastern Europe
  • Good access to deep sea port and main line
    railway connection critical
  • Exploring all options.

26
Electrification and DMUs (1)
  • HLOS DMU Project superseded following
    electrification announcement
  • New DfT Rolling Stock Plan expected before the
    end of the year
  • Class 319 EMUs to be cascaded to free up DMUs for
    further cascade
  • In theory, everything cascades down, with Pacers
    falling out of the bottom
  • Too little, too late!

27
Electrification and DMUs (2)
  • Recent thinking has involved bringing stock in at
    top of food chain and cascading down
  • Superseded HLOS DMU project highlights that this
    concept is flawed nobody able to make a
    satisfactory business case
  • Necessary to introduce new stock at the bottom of
    the food chain, firstly superseding Pacers and
    later Sprinters, enabling upward cascade to
    infill where overcrowding exists.

28
Electrification and DMUs (3)
  • Pacers need to be replaced now, not in 2016
  • Offset capital cost against -
  • lower maintenance cost
  • better reliability
  • much lower fuel consumption and
  • lower emissions
  • Cost neutral over ten years
  • But rolling stock must be low cost to purchase
    and to maintain.

29
Electrification and DMUs (4)
  • Network Rail says -
  • Electrics 50 cheaper to run
  • Electrics 33 cheaper to maintain
  • Electrics 90 more reliable
  • Electrics emit up to 30 less CO2
  • But -
  • Diesels need no OHLE maintenance
  • Diesels dont depend on OHLE reliability
  • CO2 statement relies on green energy.

30
Green diesels
  • Partnership with Voith Turbo, Germany
  • Voith Eco Excellence to deliver optimum life
    cycle cost, including fuel economy
  • Three stage process -
  • Software tools to evaluate optimum life cycle
    cost in the design of the train
  • Services to optimise the operation of the train,
    using driver training and simulation aids
  • On-board equipment to assist fuel efficient
    driving.

31
Software Tools for Green Diesels
GPS based track analysis
Operating data logging
Comparison of drive concepts
Calculation of fuel consumption
Calculation of LCC
32
Services for Green Diesels
  • Best practice training, comprising-
  • Training course for supervisors and drivers to
    achieve fuel efficient and reliable driving
  • Lessons to understand the basics of the power
    transmission system
  • On-the-job training with a driving simulator or
    on the vehicle
  • Final exam and certificate for the participants.

Driving simulator with drivers desk and active
driver assistance EcoScout
33
Equipment for Green Diesels (1)
  • Active driver assistance
  • GPS based system
  • Interface to electronic train plan
  • Real time updates to anticipate delays
  • Display of fuel consumption and savings
  • Provides information to enable fuel consumption
    based bonus system for drivers.

Display of the Voith EcoScout
34
Equipment for Green Diesels (2)
  • KEC Technology
  • (Kinetic Energy Capture)
  • Enables regenerative braking on DMUs
  • Enables silent starting from stations
  • Eliminates diesel fumes from stations
  • Further reduces fuel consumption
  • Reduces CO2 emissions

DIWA Hybrid Super Capacitors
35
Summary
  • Electrification is a good thing, but will not
    provide the whole solution
  • Bottom up DMU replacement required, starting with
    superseding Pacers
  • Low product cost through realistic specification
    and low cost manufacturing
  • Low life cycle cost through innovative tools,
    services and equipment.

36
Rolling StockWot, no DMUs?!?
  • Thank you for listening.
