KIFEE: Hybrid power production systems

1

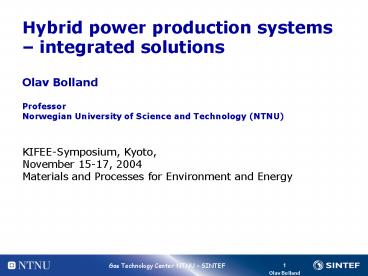

Hybrid power production systems integrated
solutionsOlav BollandProfessorNorwegian
University of Science and Technology
(NTNU)KIFEE-Symposium, Kyoto, November
15-17, 2004Materials and Processes for
Environment and Energy
2
Power production in Norway

• National grid 99.5 hydropower
• 27000 MW - 120 TWh/a
• Per capita 6 kW - 27000 kWh/a
• Offshore oil/gas mechanical power and local
  grids
• 3000 MW gas turbine power - 10 TWh/a
• Future
• Wind power 2002-2010 3 TWh/a
• More hydropower potential YES
• acceptance NO
• Natural gas power potential YES
• problem is CO2
• CO2 is a hot issue!!
• Dependence on import of coal nuclear power?

3
Power related research at NTNU

• Grid and production optimisation Scandinavian
  electricity market
• Hydropower technology 1) pumping turbines 2)
  small-scale turbines
• Wind power
• PV material technology
• Fuel cells PEM and SOFC
• Biomass gasification combined with gas engines
  and SOFC
• Natural gas
• optimal operation of gas turbines (oil/gas
  production)
• NOx emissions
• CO2 capture and storage

4
Hybrid power production systems integrated
solutions

• Solid Oxide Fuel Cell (SOFC) integrated with a
  Gas Turbine
• Potential for very high fuel-to-electricity
  efficiency
• Cogeneration of Hydrogen and Power, with CO2
  capture
• using hydrogen-permeable membrane
• Power generation with CO2 capture
• using oxygen-transport membrane

Examples where advanced material technology is
the key to improved energy conversion technologies
5
SOFC/GTSolid Oxide Fuel Cell integrated in Gas
TurbinePart-load and off-design
performanceControl strategiesDynamic performance
EXHAUST
Natural gas
RECIRCULATION
PreReformer
SOFC
AIR
Anode
REMAINING FUEL
Generator
Afterburner
DC/ AC
AIR
Cathode
Turbine
Air Compressor
AIR
6
SOFC model
7
Modelling of the Temperature Distribution

• Gas streams are modelled in 1D
• Solid is modelled in 2D

8
Mass balance and reaction kinetics
9
Electrochemistry and losses
10
Overall system model
Heat exchange between prereformer and anode
surface
Prereformer is modelled as a Gibbs reactor
EXHAUST
Natural gas
Thermal inertia and gas residence times included
in the heat exchanger models
RECIRCULATION
PreReformer
SOFC
AIR
Anode
REMAINING FUEL
Generator
Afterburner
DC/ AC
AIR
Cathode
Turbine
Air Compressor
AIR
Map-based turbine model
High-frequency generator
Shaft mass inertia accounted for
Map-based compressor model
11
Performance maps with optimised line of
operationaccording to a given criteria
Line of operation for load change
12
Dynamic performance of SOFC/GT
Air delivery tube
Air inlet
Air outlet
Cathode air
Cathode, Electrolyte, Anode
Fuel inlet
13
(No Transcript)
14
CO2 capture and storagewhat are the
possibilities?
Source Draft IPCC report CO2 capture and
storage
15
Membrane reforming reactorIdea
16
Membrane reforming reactorprinciple
Hot exhaust
Exhaust
Heat transfer surface
Q
high pressure
Hydrogen lean gas out (H2O, CO2, CO, CH4, H2)
CH4H2O ? CO3H2
Feed CH4, H2O
COH2O ? CO2H2
Membrane
permeate
H2
Q
Sweep gas (H2O)
Sweep gas H2 (CO2, CO, CH4)
low pressure
17
Membrane reforming reactorin a Combined Cycle
with CO2-captureProducts Power and Hydrogen
800 C
CO2/steam turbine
CO2 to compression
Q
SF
67 bar
MSR-H2
Condenser
H2
H2O
PRE
HRSG
Exhaust
H2 as GT fuel
C
1328 C
H2 for external use
ST
Air
Gas Turbine
Generator
NG
Source Kvamsdal, Maurstad, Jordal, and Bolland,
"Benchmarking of gas-turbine cycles with CO2
capture", GHGT-7, 2004
18
High-temperature membrane foroxygen production
Compression
Heat exchange
Cryogenic Distillation
N2
N2
O2
O2
Air
Air
Air
Oxygen transport membrane
O2
Air
Oxygen depleted air
19
Membrane technology application in GT with CO2
capture Ion-transport membrane (O2) in
reformer H2 selective membrane in water/gas-shift
reactor
20
