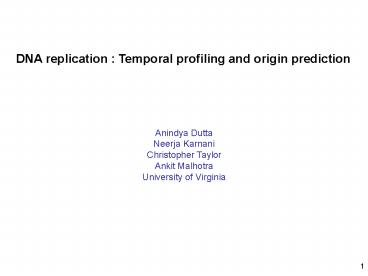

DNA replication : Temporal profiling and origin prediction

1
DNA replication Temporal profiling and origin
prediction
Anindya Dutta Neerja Karnani Christopher
Taylor Ankit Malhotra University of Virginia
2
Methodology adopted
Label newly synthesized DNA with BrdU at every
2 hrs of S-phase
Purification of BrdU labeled DNA by CsCl banding
3
Data verification two biological and two
technical replicates
4
Replication Profile for the Entire ENCODE region
52 of the ENCODE region finishes replication by
first four hours of S-phase
5
Examples of replication patterns over individual
ENCODE regions

• Slide 6 - Early
• Slide 7 Late
• Slide 8 - panS

Temporally monophasic (significant signal
enrichment at a specific time interval of S
phase)
Asynchronous firing of replication (significant
signal enrichment at more than one time
interval of S phase)
6
Examples of early replicating ENCODE regions
7
Examples of late replicating ENCODE regions
8
Examples of panS pattern of replication across
ENCODE regions
9
Temporal profile of Replication for ENCODE in
HeLa adherent
Temporal profile of Replication for Chromosome
21/22 in HeLa adherent (Jeon et al.PNAS
2005,1026419-24)
10
Time of replication confirmed by interphase FISH
Replicated
Unreplicated
11
Temporally monophasic pattern of replication
Pan-S pattern of replication
Jeon et al.PNAS 2005,1026419-24
12
FISH analyses for an early replicating region on
Chromosome 22
FISH analyses for two regions of chromosome 22
showing panS pattern of replication
Jeon et al.PNAS 2005,1026419-24
13
Origin Predictions

• For each probe calculate a TR50 by linearly
  interpolating the point at which cumulative
  signal reaches 50 of total from 0-2, 2-4, 4-6,
  6-8, 8-10 time points
• Throw out non-specific probes where at least half
  of the total replication signal did not occur in
  1 time point.
• Smooth the remaining TR50 data (5 window) to
  generate TR50 profile curves.
• Repeat the above procedure for each replicate set
  of chips.
• Construct confidence intervals where troughs in
  the replicate sets TR50 profile coincide.
• Average the replicate sets TR50 curves to
  generate average TR50 and pinpoint troughs to
  make origin predictions.
• Examine the predictions to verify that they fell
  into the confidence intervals from step 5.

Time (hrs)
Chromosome position
14
Sequence features of known metazoan replicators
IR
IR
IR
IR
IR
IR
15
Beta Globin Locus - Temporal Profile of
Replication
A
B
C
D
E
F
Biological Rep1(BR1)
Technical replicate of BR1
Biological Rep2 (BR2)
Technical replicate of BR2
16
Conf. Start Conf. End Difference Avg. Pred.
A 5,065,180 5,092,935 27,755
5,082,768 B 5,178,000 5,219,000
41,000 5,178,000 -5,219,000
C 5,263,570 5,292,750 29,180 5,271,110 D 5,36
6,290 5,460,645 94,355 5,399,952 E 5,543,905 5
,568,880 24,975 5,558,825 F 5,650,750 5,681,275
30,525 5,667,011
A
B
C
D
E
F
17
LCR
18
A monophasic early replicating area from Chr
21/ENCODE
19
ENm005 - Temporal Profile of Replication
ENm005 Replicates with Possible origins
A
B
E
F
C
D
G
H
K
L
I
J
20
Conf. Start Conf. End Difference Avg.
Pred. 32,747,964 (1) A 32,864,590 32,885,
852 21,262 32,880,930 (2) B 32,953,565 32,965
,162 11,597 32,946,436 (3) C
32,997,380 33,017,952 20,572 33,011,238 (4) D
33,090,291 33,114,205 23,914 E
33,289,804 33,314,720 24,916 33,291,808 (5) F
33,549,703 33,564,305 14,602 33,553,742 (6) G
33,688,134 33,697,728 9,594 33,700,005
(7) H 33,756,830 33,788,695 31,865 33,83
9,972 (8) I 33,867,360 33,872,982
5,622 33,870,203 (9) J 34,087,453 34,112,618
25,165 34,103,224 (10) K 34,157,799 34,176,347
18,548 34,168,048 (11) L 34,242,782 34,266,6
29 23,847 34,255,806 (12)
1
2
5
3
4
6
7
10
8
9
12
21
(No Transcript)
22
QUESTION
Any explanation for why some segments replicate
early and others replicate late?
( slide 23-28 Chr. 21 and 22 data)
23
Low exon density in late replicating segments
Jeon et al.PNAS 2005,1026419-24
24
Chromosomal segments replicated after 3 hrs of
S phase exhibit a acute decline in gene density
Jeon et al.PNAS 2005,1026419-24
25
AT rich segments enriched around ori sites that
replicate in late S-phase
Chromosome 21
Chromosome 22
Density of AT islands of stated
Density of AT islands of stated
Jeon et al.PNAS 2005,1026419-24
26
Gene expression levels decrease with increasing
replication time
Jeon et al.PNAS 2005,1026419-24
27
1Mb bin resolution of replication timing data
across chromosome 21 centromeric regions show
late replication
Jeon et al.PNAS 2005,1026419-24
28
1Mb bin resolution of replication timing data
across chromosome 22 centromeric regions show
late replication
Jeon et al.PNAS 2005,1026419-24
29
Replication profile vs Gene Density for random
picks under ENCODE region
30
Euchromatin is associated with early replication
and sensitivity to DNaseI
31
(No Transcript)
