THE EXTRACELLULAR MATRIX

1

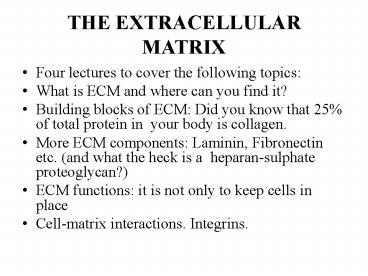

THE EXTRACELLULARMATRIX

• Four lectures to cover the following topics
• What is ECM and where can you find it?
• Building blocks of ECM Did you know that 25 of
  total protein in your body is collagen.
• More ECM components Laminin, Fibronectin etc.
  (and what the heck is a heparan-sulphate
  proteoglycan?)
• ECM functions it is not only to keep cells in
  place
• Cell-matrix interactions. Integrins.

2
WHAT IS THE EXTRACELLULAR MATRIX

• Complex arrangements of molecules filling in
  spaces between the cells.
• Not an amorphous jelly or glue but highly
  organised structure.
• Mostly found in connective tissues, such as
  tendon, cartilage, bone or dermis of the skin.
• Diverse structures created by different amounts
  and organisation of ECM components
• ECM is a local product for local cells. Cells
  secrete ECM that is finally assembled outside the
  cell.

3
SOME FUNCTIONS OF ECM
4
MAJOR TYPES OF ECM MOLECULES

• Glycosaminoglycans polysaccharide chains usually
  found attached to proteins to form proteoglycans
• Fibrillar proteins such as collagens (mainly
  structural role) or fibronectin (adhesive
  glycoprotein)

5
CONNECTIVE TISSUES
6
EXAMPLES OF ORGANISATION OF ECM- DERMIS
7
EXAMPLES OF ORGANISATION OF ECM- CARTILAGE
8
EXAMPLES OF ORGANISATION OF ECM- BASEMENT
MEMBRANE
9
THE COLLAGEN FAMILY

• Triple helical domain
• Repeated Gly - X - Y amino acid sequence, where X
  is often proline and Y hydroxyproline
• 19 different collagen types ( possibly 4 more)
  containing polypeptides encoded by at least 38
  genes

10
COLLAGENS -examples out 19 different types
11
Collagens assemble to diverse structures
12
COMMON THEMES IN ECM SYNTHESIS

• Extensive post-translational modification
• Route ER - Golgi - Secretory vesicles
• During this journey protein are glycosylated or
  decorated with long GAG chains
• Amino acid recidues can be modified (in collagens
  proline -gt hydroxyproline

13
Collagen Biosynthesis - intracellular steps
14
COLLAGEN
15
Collagen Biosynthesis - extracellular steps
16
Collagen Biosynthesis - extracellular assembly
17
Collagen Biosynthesis - extracellular assembly
18
Non-collagenous domains

• Triple-helical collagen rods are not the only
  functional domains
• Example Type XVIII collagen that is found in
  many tissues associated with basal lamina.
• Endostatin is a 22kDa polypeptide that is
  proteolytically cleaved from the C-terminus of
  type XVIII collagen
• Endostatin found in blood vessel walls and
  basement membranes
• Endostatin is a potent inhibitor of angiogenesis
  and tumour growth !!!
• Endostatin is currently being tested in clinical
  trials
• Similar domains in other collagen family members

19
Collagens in disease

• Inherited diseases with mutations in collagen
  genes
• Osteogenesis Imperfecta
• Fibrotic diseases with accumulation of ECM
• Liver Chirrosis
• Lung Fibrosis

20
Collagens in disease

• Osteogenesis Imperfecta - Brittle bone disease
  (not to be confused with osteoporosis)
• Variable from mild to embryonic lethal
• Often a point mutation in one of type I collagen
  genes can cause disease
• Glycine substitutions to another amino acid more
  severe than mutations of X or Y in Gly - X - Y
  triplet. Why?
• Dominant negative effect of some mutations.
• Predisposing mutations (e.g. Type II collagen in
  osteoarthrosis)

21
Collagens in disease

• Fibrotic diseases such as liver chirrosis are
  characterised by accumulation of ECM
• Collagen synthesis is mainly regulated by the
  level of gene activity.
• Some growth factors such as TGF-b signal to
  increase collagen synthesis.
• Enzymes in the collagen synthesis are
  investigated as drug targets to treat fibrotic
  diseases

22
Collagens a summary

• All collagens contain a repeating Gly-X-Y
  sequence and fold into a characteristic
  triple-helical structure
• Collagens assemble to fibrils or networks
• Procollagen chains are modified in ER where they
  also assemble into a triple helix
• Type I collagen is the most abundant type it is
  a major structural protein of bone, tendon and
  dermis
• Mutations in collagen chaisn can render the
  fibrils unstable

23
Fibronectin

• Large extracellular glycoprotein
• Name fibro nectere (to bind)
• Multiple domains with different binding sites for
  other ECM proteins or for receptors on cell
  surface
• Present in tissues and in blood plasma

24
Fibronectin structure
25
Fibronectin structure domains and interactions
26
Plasma Fibronectin
27
Fibronectin binds cell surfaces by an RGD sequence
28
Fibronectin is essential for embryonic development

• Gene targeting gt complete lack of fibronectin
• Embryonic lethal.
• Gross malformations, notchord and somites
  missing, heart malformation
• Problems in cell adhesion, migration and
  differentiation

29
Proteoglycans have long sugar chains attached to
a core protein
30
Proteoglycan biosynthesis

• Signal peptide directs the nascent polypeptide to
  ER
• Protein modifications starts in late ER. GAG side
  chains elongation and modification takes place in
  Golgi.
• Several specific enzymes to add disaccharide
  units and to modify them (e.g. sulphation). For
  example over 30 enzymes are needed in synthesis
  of aggrecan, a cartilage matrix proteoglycan.

31
Cell-surface proteoglycans
32
Syndecans and glypicans

• Syndecans are transmembrane proteins. Four family
  members. Short cytoplasmic tail contains highly
  conserved sequences that bind to adaptor
  proteins. Variable part of syndecan-4 cytoplasmic
  domain binds protein kinase C and affect cell
  signalling
• Glypicans (6 known family members) are lipid
  anchored to plasma membrane. GPI
  glycosylphosphatidylinositol.
• Both families individual family members have
  distinct expression patterns e.g. syndecan-1 in
  epithelia and syndecan-3 in neural cells

33
Sugar sequence in GAG chains is functionally
important
34
Sugar sequence in GAG chains is functionally
important
35
Proteoglycans modulate growth factor activity
36
Proteoglycans modulate growth factor activity

• Matrix associated PG sequestration
• Membrane-bound PG presentation
• Certain sugar sequences promote FGF signalling
  and others inhibit
• Membrane-bound PGs can be cleaved from cell
  surface into matrix
• Sugar chains can be cleaved by heparanase enzymes
  to oligosaccharides.

37
Heparin binding proteins

• Certain growth factors, especially Fibroblast
  Growth Factor family (FGF)
• Enzymes and their inhibitors, e.g. proteases
• Blood coagulation factors
• ECM proteins
• Note proteoglycans can bind several proteins at
  the same time

38
Proteoglycans can modulate cell adhesion to ECM
proteins
39
More functions for proteoglycans- syndecan-3
regulates appetite

• Serendipitous discovery in transgenic mice
  over-expressing syndecan-1 under a viral promoter
  gt maturity-onset obesity.
• Heparan-sulphate sugar cahins potentiate
  signalling in hypothalamus that induces
  over-eating.
• In normal mice syndecan-3 is present in
  hypothalamus (in addition to other neural
  tissues). Food deprivation induces syndecan-3
  expression several fold and triggers reflex
  hyperphagia.

40
Aggrecan Example of Matrix Proteoglycans
41
Proteoglycans in human diseases
42
Hyaluronic acid
43
Hyaluronic acid
44
CD44

• Adhesive glycoprotein
• Numerous isoforms from alternative splicing
• Originally found as a homing receptor in
  T-lymphocytes
• Some splice isoforms suggested to play a role in
  tumour metastasis
• Cytoplasmic tail of CD44 binds to ERM proteins
  (ezrin-radixin-moiesin family) that can regulate
  dynamics of actin cytoskeleton

45
Basement membrane

• Also known as basal lamina
• Thin sheetlike network
• Epithelial, endothelial, muscle and Schwann cells
• Physical support, developmental control,
  filtering functions
• Major constituents laminins, collagen type IV,
  perlecan (a proteoglycan)

46
Basement membrane
47
Laminins
48
Laminins

• Molecular composition of basement membranes is
  tissue-specific
• Laminins at least 11 heterotrimers
• Five alternative alpha chains,
• Three alternative beta chains
• Two alternative gamma chains
• For example in skin in the BM between epidermis
  and dermis, Laminin-5 (a3b3g2) is the predominant
  laminin isoform.

49
Interactions of laminins
50
Type IV collagen
51
More Basal Lamina Proteins

• Perlecan a large heparan sulfate proteoglycan.
  HS chains bind other BM components and contribute
  to filtering functions
• Entactin interacts with laminin and type IV
  collagen
• Nidogen, a laminin binding protein

52
Hemidesmosome a cell - basement membrane
adhesion site

• In some epithelia epidermis, bladder, trachea,
  breast and amnion
• Shares some ultrastructural features with
  desmosomes both display dense,
  membrane-associated cytoplasmic plaques that are
  connected to intermediate fialments. But
  molecular composition is different.
• Transmembrane glycoproteins connect basement
  membrane to intracellular plaque

53
Hemidesmosomes and basement membrane-
ultrastructural view
54
Hemidesmosomes and basement membrane- molecular
composition
55
Basal lamina functions-structural support
56
Basal lamina functions-filter
57
Basal lamina functions-developmental guidance

• Early embryo keeps 4 and 8 cell stages together
• Differentiation of epithelial organs epithelial
  - mesenchymal interactions
• Neurite outgrowth guidance of axon growth by ECM
  containing laminin sububits

58
Basal lamina functions-developmental guidance
59
ECM Turnover - MMPs

• Matrix metalloproteinases are enzymes that cleave
  components of ECM
• Over 20 different enzymes with differenrt
  specificities.
• Common theme expressed as an inactive proenzyme
• Also other substrates than ECM proteins
• TIMPs tissue inhibitors of MMPs

60
MMPs - some examples

• Old names collagenases, gelatinases and
  stromelysisn replaced by numbers (e.g. MMP-1)
• MMP-1 (collagenase-1) cuts triple helical
  collagens
• MMP-9, (Gelatinase-B) chops e.g. type IV collagen
  and laminins
• MT-MMPs are membrane-bound enzymes

61
MMPs - some functions

• Regulate amount of ECM - degradation and
  remodelling
• Cell migration, wound healing, angiogenesis
• Activate other MMPs
• Release or activate growth factors and other
  bioactive molecules

62
MMPs in diseases

• Extensive matrix degradation in e.g. in
  periodontitis, rheumatoid arthritis
• Tumour cell invasion and metastasis
• Carcinoma breaks basement membrane and invades
  surrounding stroma.
• MMP inhibitors tested for therapeutic use

63
Integrins
64
Integrins

• At least 24 different heterodimers from 9 b
  subunits and 18 a subunits.
• Variable pairing b1 integrin can have 11
  different a partners.
• Overlapping ECM binding e.g. 8 different
  integrins can bind fibronectin
• An integrin can bind one or several ECM proteins

65
Integrins and cell behaviour

• Clustering of integrins (velcro effect in
  adhesion)
• Responses to cell adhesion include spreading,
  cytoskeletal re-organisation, polarisation,
  migration, proliferation, activation of specific
  genes
• Cell survival epithelial cells that are detached
  commit suicide (this type of apoptosis is called
  anoikis).
• Also, inside out signalling integrins can have
  inactive conformation that does not bind matrix
  unless first activated.

66
Integrins - variety in functions
67
SUMMARY

• Collagens Triple helical rod and non-collagenous
  domains. Important structural role. Extensive
  post-translational modifications
• Fibronectin adhesive glycoprotein in matrix and
  plasma
• Proteoglycans GAG-chains attached to core
  protein.
• Laminins major components of basement membranes
• Matrix metalloproteinases degrade and re-model
  matrix
• Integrins heterodimeric proteins that mediate
  cell adhesion to extracellular matrix.
• Cell-matrix interactions important regulator of
  cell behaviour

68
SUMMARYFUNCTIONS OF ECM
