Title: The Pierre Auger Project

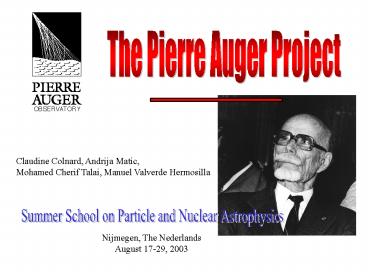

1
The Pierre Auger Project
Claudine Colnard, Andrija Matic, Mohamed Cherif
Talai, Manuel Valverde Hermosilla
Summer School on Particle and Nuclear Astrophysics
Nijmegen, The Nederlands August 17-29, 2003
2
What we "know" about Ultra High Energy cosmic Rays

Observed spectrum above eV
Doug Bergman - ICHEP2002


Evidence for Utra High Energy Cosmic Rays gt GZK
cut-off ?
3
What we do not know (but would like to )
  • Where does the spectrum end?
  • Primary nature (composition)?
  • Nucleus, proton?
  • Are there gamma rays or neutrinos?
  • What is the source of UHECR?
  • Bottom-Up or Top-Down scenario?

Pierre Auger Observatory
A Study of The Highest Energy Cosmic Rays 1019 -
1021 eV Energy Spectrum - Direction - Composition
4
Auger Philosophy
Uniform sky coverage 2 sites located in each
hemisphere Argentina, USA need high
statistics large detection surface 2?3000
km² Hybrid detector - fluorescence detector -
surface array (water Cerenkov tanks)
Good energy and direction resolution Good
sensitivity to composition
5
Auger Southern Site
  • Argentina Pampa Amarilla, Mendoza
  • 35o S latitude
  • 69o W longitude
  • 1.4 km altitude
  • 875 g/cm2
  • Low population density (lt 0.1 / km2)
  • Favorable atmospheric conditions (clouds, rain,
    light, aerosol, temperature)
  • Site relatively level (mean slope lt 1)
  • Suitable infrastructure and local support

6
The Observatory
3000 km2 covered aperture 7400 km2 .sr
Fluorescence detectors 4 peripheral eyes (6
telescopes each) 11000 PMTs
Surface detectors 1600 Cerenkov tanks 1.5 Km
spacing 4800 PMTs

Wireless RF Communication system
65 km
7
Why a hybrid detector?
The same cosmic ray shower is measured by two
independent detector systems
Cross calibration - complementary measure of the
energy and direction of the primary - allows for
redundancy cheks of interesting events - allows
to study (and reduce) systematics Increase
composition sensitivity Uniform
exposure Hadronic cascades - muon and
electromagnetic densities combined with the
longitudinal profile put constraints on the
hadronic interaction models Cost - cost per
event is lower than a stereo fluorescence
detector design
8
The hybrid detector
300- 400 nm light from fluorescence of
atmospheric nitrogen
  • Fluorescence Detector
  • Intensity E
  • Longitudinal development direction
  • Duty cycle 10-15
  • (moonless and cloudless nights)
  • Surface Detector
  • Shower size E
  • Time direction
  • Duty cycle 100


9
The Auger Surface Detector
Water Cerenkov tank Polyethylene tank 10 m2 x
1.2 m of purified water, diffusing walls 3 PMTs
Photonis 9 Autonomous unit solar
panelbattery, GPS timing, communication
antenna modest power consumption (10 W)
Commantenna
Solar panel and electronic box
GPSantenna
Three 8 PM Tubes
Battery box
White light diffusing liner
12 m2 of de-ionized water
Plastic tank
10
The FD telescope
  • Schmidt optics (eliminates coma) Spherical
    mirror Rcurv 3.4 m
    2.2 m diameter diaphragm, corrector ring,
  • 30o x 30o aperture spot size
    from spherical aberration 15 mm
  • Focal surface 20 x 22 hexagonal
    PMT (Photonis XP3062) Pixel angular size
    1.5o (45 mm)

Diaphragm, UV Filter, Corrector ring
Spherical mirror
PMT camera
11
Performances
1019 eV 1020 eV
12
High statisitcs
1 Auger year 30 AGASA, 10 Hires years
5000 events/year E gt 1019 eV 500
events/year E gt 5x1019 eV 50
- 100 events/year E gt 1020 eV
Expected rates
Sky above after 3 years
Spectrum after 20 months
15 sources of equal densities randomly distributed
Efficiency gt 90 (Egt10 Eev)
13
The Auger Collaboration
  • Argentina Italy
  • Australia Mexico
  • Bolivia Poland
  • Brazil Russia
  • Czech Republic Slovenia
  • Peoples Republic of China Spain
  • France United Kingdom
  • Germany USA
  • Greece Vietnam
  • 50 Institutions, gt250 Scientists

14
Costs and Funding
  • South 54M US
  • North 46M US
  • Total 100M US
  • In kind contributions 80
  • Detector Components
  • Infrastructure (host countries)
  • Common Fund 20
  • Photomultiplier tubes
  • Site buildings

15
Status
  • The Auger southern site is now under
    construction.
  • 40 surface detectors over 40 km2
  • 2 fluorescence telescopes (Los Leones,
    Coihueco)
  • In 2003 installation and commissioning of 12 FD
    telescopes and 500 additional tanks
  • Southern site to be completed by 2005
  • Construction of the Auger northern detector will
    begin in 2 to 3 years.

16
First giant airshower
hit 20 out of the 30 active surface detectors on
May 23rd 2002
17
Summary
  • Auger Project has some exciting science.
  • Strong collaboration organized.
  • Thirty of the surface detectors equipped with
    electronics have worked under stable conditions
    since January 2002
  • More than 70 air showers detected in hybrid mode
  • A few hundreds of events with estimated energies
    above 1 EeV (1018 eV) observed by the surface
    array alone.

Jim Cronin
