Performance Monitoring of Java Web Service-based Applications

1

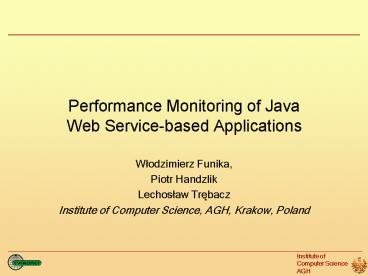

Performance Monitoring of Java Web Service-based
Applications

• Wlodzimierz Funika,
• Piotr Handzlik
• Lechoslaw Trebacz
• Institute of Computer Science, AGH, Krakow, Poland

2
Agenda

• Review of existing monitoring systems
• JIMS (JMX)
• Lemon (CERN)
• Mercury
• Concept of a system monitoring WebServices
• idea (J-OMIS, OCM-G)
• metrics
• feasibility study
• architecture

3
Monitoring System Funcionality

• Monitoring of application is observing, analyzing
  and manipulating the execution of the
  application, which gives information about
  threads, CPU usage, memory usage, informations
  about methods and classes.
• A particular case is monitoring of distributed
  applications where an additional issue is the
  performance analysis of nodes.

4
Functional requirements

• Goals
• monitoring Web Services
• distinguishing which objects are interface of WS
• accessing information about Web Services on a
  node
• Communication related performance data
• size of SOAP message
• time of communication
• time of parsing a SOAP message
• Events
• receive request
• start/end of creating/parsing SOAP message
• Basis
• use the J-OMIS interface
• hold the existing functionality of J-OCM
• make use of experience with extending OMIS/OCM
  for parallel applications, grid computing and
  Java distributed programming.

5
JMX Infrastructure Monitoring System

• JIMS is a monitoring service for GRIDs, exposing
  the following parameters to the outside world
• CPU load,
• Number of processes,
• Memory usage,
• Network interface utilization.
• It uses Java Native Interface, Java Management
  Extension, Dynamic Discovery Service and Web
  Services

6
JIMS Architecture
Cluster
JIMS
Node
RMI
JIMS
Node
RMI
SOAP Gateway
SOAP
User
RMI
JIMS
Node
7
LEMON (CERN)

• Lemon is a scalable and flexible fabric
  monitoring system. Distributed clients launch and
  control local sensors, schedule measurements,
  collect data and send them to one or several
  repositories. The system provides sensors for
  common performance and exception monitoring.
• Main parts of Lemon are
• Monitoring Sensor measures data
• Monitoring Sensor Agent exists on all nodes and
  provides transport to MR
• Monitoring Repository (MR) with backend to
  Oracle, MySQL, flat file,
• Alarm Broker daemon for handling exceptions and
  communication between alarm GUI and MR
• Round Robin Database is used to store and to
  manipulate data

8
Lemon architecture
Alarm GUI
Monitoring repository backend
Alarm Broker
Monitoring repository
RRD Tool Framework
Node
Monitoring Sensor Agent
USERS
Monitoring Sensor
Monitoring Sensor
9
Lemon - Performance Monitoring

• In Lemon there are several types of data
• Performance metrics
• CPU usage, load averages, memory usage, disk
  usage/performance, sockets, network,
• Exceptions
• High load, swap usage over 90, service down,
• Status information
• Uptime, boot time, kernel version,
• Heartbeat
• Data is gathered with different frequencies from
  60s to 1 day/on boot

10
Mercury (GridLab)

• The architecture of Mercury Monitor is based on
  the Grid Monitoring Architecture proposed by
  Global Grid Forum (GGF), and implemented in a
  modular way.
• The Mercury Monitor provides
• monitoring data as metrics,
• pull and push model,
• performance monitoring and steering,
• monitoring of grid entities such as resources and
  applications,
• emphasis on simplicity, efficiency, portability
  and low intrusiveness.

11
Mercury (GridLab)

• The input of the monitoring system consists of
  measurements generated by sensors.
• Sensors are implemented as shared objects that
  are dynamically loaded at run-time depending on
  configuration and incoming requests for different
  measurements.
• Local monitor employs a set of sensors,
  implemented as loadable modules, to collect
  information about the local node, including host
  status, applications, etc., and sends it to the
  main monitor.
• The monitoring service sends requests to local
  monitors.

12
Mercury architecture
Tool
MM
node 2
node 1
LM
LM
Sensor
Sensor
Sensor
Sensor
13
Idea

• Our monitoring system will be based on J-OMIS
  interface and its implementation, J-OCM.
• The work dates back to 1995 when OMIS, a
  monitor/tool interface specification was
  released.
• Java-bound OMIS is a monitor extension to OMIS
  for Java applications intended to support the
  development of Java distributed applications with
  on-line tools.
• J-OMIS specifies three types of services
• information (providing information about an
  object)
• manipulation (allowing to change the state of an
  object)
• event (trigger arbitrary actions whenever a
  matching event takes place)

14
J-OCM architecture
Tool 1
Tool 2
Node Distribution Unit
Node
Node
Local Monitor (RMI Ext, JVM Ext)
Local Monitor (RMI Ext, JVM Ext)
agent
JVM
agent
JVM
agent
JVM
agent
JVM
15
J-OCM

• Node Distribution Unit is part, which is still
  responsible for distributing requests and
  assembling replies.
• Local Monitor is a monitor process. LMs
  extension provides new services defined by
  J-OMIS, which control Java Virtual Machine via
  agent. LM stores information about the target
  Java applications object, such as JVMs, threads,
  classes, interfaces, objects, methods, etc.,
  referred to by tokens.
• Agent uses JVM native interfaces such as JVM
  Profiler Interface, JVM Debugging Interface, Java
  Native Interface to access low-level mechanism
  for interactive monitoring of JVM.

16
Grid-enabled OMIS-based Monitor

• The OCM-G is a decentralized, distributed system,
  consists of two types of components
• Service Managers (SM)
• Local Monitors (LM)
• SMs reside permanently, one on each site of the
  Grid, where are application processes to be
  monitored.
• LMs execute OMIS request accepted from SMs and
  send the results back. LMs handle only objects
  which are on the same host. The LMs use OS
  mechanisms to control the application processes.

17
OCM-G Monitoring Services

• The OCM-G provides
• Debugging services (services for
  suspending/continuing process, reading/writing
  processes memory, etc.)
• Performance analysis services, for example
• services for detecting the beginnings and ends of
  function calls,
• services for handling probes, which are used by
  the user to define and detect arbitrary events in
  an application,
• services for the creation and management of
  counters and integrators - efficient data
  structures which allow to buffer and preprocess
  monitoring information in the context of the
  application.

18
Components of our system

• It contains three kinds of components
• application monitor (AM),
• node's local monitor (LM),
• service monitor (SM).
• AM is embedded into the application (in our case
  Web Service or application, which use Web
  Services). It is used to perform monitoring
  activities in the context of the application. It
  uses JVM Tool Interface, starting with JDK 1.5,
  for monitoring JVM.
• Node's local monitor is created on each node,
  where there are Web Services to be monitored. LM
  receives requests from Service monitor and
  transfers this request to AM. LM sends a reply
  from AM to SM.
• Service Monitor resides permanently and exposes
  the monitoring services to tools.

19
Metrics

• Our monitoring system have two types of metrics
• static for WebServices, intended for
  observation and analysis of SOAP messages sended
  to and from a Web Service (requests and
  responses)
• number of WebServices on a node
• request time, transport time, cache access time,
  response time, SOAP create/parsing time,
  computing time
• size of SOAP message (sent, received)
• usage (node resources)
• dynamic oriented towards applications which use
  WebServices
• function call, service invocation
• number of exceptions (errors)

20
Feasibility study

• To build the Web Service we use Jakarta Tomcat
  and Apache Axis.
• Jakarta Tomcat is the servlet container
• open source,
• reference platform,
• simplicity of use,
• universal tool for deploying web applications.
• Apache Axis is an implementation of the SOAP
  protocol and enables creation of web services on
  Tomcat.
• J-OCM will be a low-level layer of the
  architecture extended by a special extension for
  web services.

21
Architecture
Tools
WebService
Service monitor
Service monitor
Node
Node
node's local monitor
node's local monitor
AM

AM

AM

AM

WebService TomcatAxis
WebService TomcatAxis
WebService TomcatAxis
WebService TomcatAxis
22

• Thank You !
