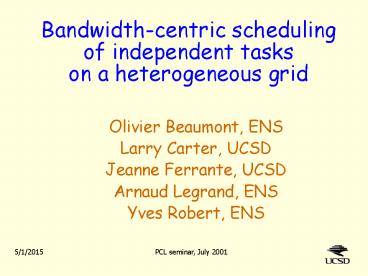

Bandwidth-centric scheduling of independent tasks on a heterogeneous grid

1
Bandwidth-centric schedulingof independent
taskson a heterogeneous grid

• Olivier Beaumont, ENS
• Larry Carter, UCSD
• Jeanne Ferrante, UCSD
• Arnaud Legrand, ENS
• Yves Robert, ENS

2
Grid Computing

• Distributed heterogeneous computing
• Large number of independent tasks
• Data begins and ends at specific site
• Examples
• SETI _at_ home
• Factoring numbers
• Animated films
• Drug screening

3
Computational grid
My computer
Intermediate nodes can compute too
Data starts here
Internet Gateway
Cluster Host
Partner site
Super- computer



Participating PCs and workstations
4
Base Model Node

• Processor takes W0 time to do one task
• Takes C-1 time to receive task from parent
• Takes Ci time to send task to i-th child
• These 3 activities can be done concurrently
• but only one send at a time

5
Example
A is the root of the tree all tasks start at A
3
A
Time for sending one task from A to B
1
2
Time for computing one task in C
2
6
B
C
1
2
D
Examples assume no communication of results back
to root
6
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
7
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
8
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
9
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
10
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
11
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
12
Example
3
A
1
2
2
6
B
C
A compute
1
A send
2
D
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Time?
13
Steady-state
3
A
1
2
Repeated pattern
6
2
C
B
Startup
Clean-up
1
A compute
2
D
A send
B receive
B compute
C receive
C compute
C send
D receive
D compute
1
2
3
Steady-state 7 tasks every 6 time units
Total time 16 tasks in 16 time units
14
Steady State Problem
w0

• One-level fork graph node k leaves
• Concurrent activities
• w0 time to execute task
• ci time to send to i-th child (only one at a
  time)
• Let Ri denote steady-state rates
• R0 tasks/second executed in node
• Ri tasks/second sent to and done by child i
• Constraints
• ? Ri ci 1
• Ri 1/wi for i 0, ..., k

Ck
C1
...
wk
w1
15
Solution

• Sort by communication times c1 c2 ...
• Find largest p such that ? ci/wi 1
• For i 1, ..., p, set Ri 1/wi
• keep the first p children busy
• note that ? Ri ci 1 so far
• Set Rp1 e/cp1, where e 1- ? Ri ci
• give the (p1)-st child any leftover work
• Set R0 1/w0
• Keep the roots processor busy

w0
Ck
C1
...
wk
w1
Constraints Ri 1/wi i 0 ... k ? Ri
ci 1
16
New law of efficient management

• Delegate work to whomever it takes you the least
  time to explain the problem to!
• Provided workers desk isnt overloaded.
• It doesnt matter if that person is a slow
  worker.
• Of course, slow workers will have full desktops
  more often.

17
With communication from above

• Three concurrent activities
• W0 time to execute task
• C-1 time to receive task from parent
• Ci time to send to i-th child
• New constraints
• R-1 ? Ri and R-1 c-1 1, where R-1 receive
  rate
• Solution
• R-1 min (1/c-1, 1/wo ? 1/wi e/c p1)

C-1
w0
Ck
C1
...
wk
w1
solution for one-level tree
18
Steady-state for tree
Process root last
My computer
Internet Gateway
Cluster Host
Partner site
Super- computer



Reduce fork graphs to single node
19
Steady-state for tree
Process root last
My computer
Internet Gateway
Cluster Host
Summary node
Super- computer



Reduce fork graphs to single node
20
Steady-state for tree
Process root last
My computer
Internet Summary
Cluster Summary
Reduce fork graphs to single node
21
Example
3
A
1
2
First find equivalent work-time for subtree
2
6
B
C
1
2
D
Subtrees rate is 1/6 1/2 2/3, equivalent to
node with w 3/2
22
Example
3
A
1
2
Replace subtree with equivalent node
2
1.5
B
C
Subtrees rate is 1/6 1/2 2/3, equivalent to
node with w 3/2
23
Example
3
A
1
2
2
1.5
B
C
Solve root tree Keep C busy (i.e. RC
1/1.5) e 1-1/1.5 1/3 RB e/2 1/6 rate
1/3 1/1.5 1/6 7/6
24
Base Model Notation

• Three concurrent activities
• W0 time to do one task
• C-1 time to receive task from parent
• Ci time to send to i-th child (only one at a time)

c-1
to parent
receive
things stacked vertically can be done concurrently
w0
nodes processor
send
c1
ck
...
wk
w1
children
25
Concurrent receive model

• Two concurrent activities
• Receive task from parent.
• EITHER send to i-th child OR execute one task

c-1
receive
w0
send
c1
ck
...
w1
wk
26
Reduce to previous model

• Replace nodes processor by a new child.

c-1
c-1
receive
receive
8
w0
send
send
c1
ck
w0
ck
c1
w1
wk
w0
wk
w1
base model
concurrent receive model
27
Concurrent work model

• 2 concurrent activities execute and one
  communication

c-1
c-1
receive
w0
8
receive
send
send
c1
ck
c-1
c-1ck
c-1c1
w1
wk
wk
w1
w0
base model
concurrent receive model
28
Other models have similar reductions
w0
receive
send
receive
w0

• Fully sequential model

send
send
send
w0
receive
Fully parallel model
send
Concurrent send model
29
Revised law of efficient management(if you cant
work and delegate at the same time)

• Delegate work to whomever it takes you the least
  time to explain the problem to!
• Provided workers desk isnt overloaded.
• Do it yourself only if thats faster than
  explaining it to any available worker.
• And fire anyone who isnt working when you are!
• Or reassign them to a better communicating or
  slower-working manager

30
OGO model of communication

• Recall LogP model Latency Overhead Gap
• Latency is irrelevant to steady-state
• We allow different Overheads at each end
• OGO model
• channel can send one task every G time units
• nodes processor is interrupted for time O
• Easy to extend our methods
• use no-concurrency model with Os
• take min with 1/G

31
Flaky example

• Communicate with Alice via fax
• takes me 5 minutes to send message
• ties up the fax machine for 2 minutes
• Communicate with Bob via US mail
• takes me 1 minute to address letter
• doesnt reach him for 3 days
• Communicate with Carol via courier
• takes me 30 seconds to summon courier
• can only deliver two tasks per day

32
Bandwidth-centric scheduling

• Prioritize children by communication times
• Request tasks from parent
• initially, request enough to fill your buffers
• make more requests as you delegate execute
• On receiving a task
• execute locally if idle
• satisfy childrens request according to
  priorities
• Occasionally re-adjust priorities

33
Simulations

• 100 randomly-generated trees
• up to 5 children per node
• up to 10 non-leaf nodes
• Three strategies
• All children equal priority (first-come,
  first-serve)
• Theorems subset equal priority
• Theorems subset low priority to last child
• Buffer for one task per node (buffer starts full)
• Buffer four tasks per node

34
Start-up issues

• Bandwidth-centric is optimal within an additive
  constant
• Can execute N tasks in N/w-1 k time
• Bound on start-up and clean-up time
• tree depth x longest nodes steady-state period
• Bound on period
• lcm(w0, w1, ..., wp, c-1, cp1)

35
Start-up
4
A
2
1
8
2
Steady- State
C
B
Startup
8
D
2
A compute
A send
B receive
B compute
C receive
C compute
C send
D receive
D compute
Steady-state 8 tasks every 8 time units
36
Modeling networks as trees

• Leiserson Fat Trees
• recursively partition graph into 2 parts.
• Alpern, Carter, Ferrante PMH model
• group nodes connected with fast links as a new
  node with original ones children.
• successively relax definition of fast.
• Shao ENV model
• measure bandwidth to you group ones similar
  speeds.

37
Summary

• Explicit solution to steady-state throughput
• heterogeneous speeds
• heterogeneous models
• Simple computation
• uniform tasks
• no dependences
• Suggests simple dynamic scheduling

38
Current work

• Application model
• Bag of tasks
• Performance model
• Applications workflow
• Type of schedule
• Application
• Grid model
• Very heterogeneous tree

39
Future work

• Application model
• Bag of tasks -gt parallel pipeline unequal
  sizes
• Performance model
• Applications workflow -gt total execution time
• Type of schedule
• Application
• Grid model
• Very heterogeneous tree -gt memory latency
