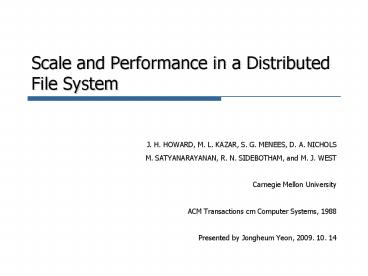

Scale and Performance in a Distributed File System

1
Scale and Performance in a Distributed File System

• J. H. HOWARD, M. L. KAZAR, S. G. MENEES, D. A.
  NICHOLS
• M. SATYANARAYANAN, R. N. SIDEBOTHAM, and M. J.
  WEST
• Carnegie Mellon University
• ACM Transactions cm Computer Systems, 1988
• Presented by Jongheum Yeon, 2009. 10. 14

2
Outline

• Motivation
• Andrew File System
• Prototype
• Improvements to the Prototype
• Comparison with Remote Open
• Operability of Improved System
• Conclusion

3
Andrew File System(AFS) History

• 1980 task force at CMU
• August 12, 1981 IBM launched the PC ? Sneaker
  Net
• 1982 Carnegie Mellon IBM ? Information
  Technology Center (ITC) , personal computing
• 1983, Multi-platform network operating system
  (NOS), Novell NetWare
• August 1983, 4.2BSD release with TCP/IP
• 1989 founded Transarc ? commercial product
• 1994 IBM acquired Transarc
• 16 Aug 2000 IBM announces Open AFS
• July 15, 2005 IBM withdrawn marketing effort
• Researches are still going on (280 references)
  Coda, GFS, IVY,

4
Motivation

• DFS Architectural Challenges
• Fault tolerant
• Highly available
• Recoverable
• Consistent
• Scalable
• Predictable performance
• Secure
• To build a distributed, scalable file system
• The file system should be able to scale to serve
  a large number of users with out too much
  degradation of performance
• Should support simplified security model
• Should simplify system administration

5
Andrew File System

• Developed at Carnegie Mellon University
• Distributed file system by considerations of
  scale
• Locality of file references
• Present a homogeneous, location-transparent file
  name space to all the client workstations
• Use 4.2BSD
• Server
• A set of trusted servers - Vice
• Clients
• User level processes Venus
• File system call hooking
• Contact with servers only on opens and closes for
  a whole-file transfer
• Caches files from Vice
• Store modified copies of files back on the servers

6
System Overview
7
Operation Flow

• Open/Read/Write/Close
• Workstation1 does not have readme.txt in cache,
  Workstation2 has it.

8
Prototype

• Venus on the client with a dedicated
• Persistent process on the server
• Dedicated lock server process
• Each server stored the directory hierarchy
• Mirroring the structure of the Vice files
• .admin directory Vice file status info (e.g.
  access list)
• Stub directory location database
• Vice-Venus interface by their full pathname
• Theres no notion of a low-level name such as
  inode
• Before using a cached file, Venus verifies its
  timestamp
• Each open of a file thus resulted in at least one
  interaction with a server, even if the file were
  already in the cache and up to date

9
Qualitative Observations of the Prototype

• stat primitive
• To test for the presence of files
• To obtain status information before opening files
• Each stat call involved a cache validity check
• Increase total running time and the load on
  servers
• Dedicated Process
• Virtue of simplicity / Robust system
• Excessive context switching overhead
• Critical resource limits excess
• High virtual memory paging demands

10
Qualitative Observations of the Prototype(contd)

• Remote Procedure Call (RPC)
• Simplification of implementation
• Network related resources in the kernel to be
  exceeded
• Location Database
• Difficult to move users directories between
  servers
• etc.
• Use Vice file without recompilation or relinking

11
Limitation of the Prototype

• Too much stat call degraded performance
• This was solved by reducing the cache lookup
• Sever side overload due to too many processes
• Network resources in the kernel frequently
  exhausted
• Since location information was stored in each
  server, moving files across servers became
  difficult.
• Was not possible to implement Disk Quotas

12
Benchmark of the Prototype

• Benchmark
• Command scripts that operates on a collection of
  files
• 70files (source code of an application program)
• 200kb
• Stand-alone Benchmark and 5 phases

13
Benchmark of the Prototype (contd)

• Skewed distribution of Vice calls
• TestAuth
• Validate cache entries
• GetFileStat
• Obtain status information about files absent from
  the cache

14
Benchmark of the Prototype (contd)

• 510 maximum server load
• Load unit
• Load placed on a server by a single client
  workstation running this benchmark
• A load unit
• 5 Andrew users

15
Benchmark of the Prototype (contd)

• CPU/disk utilization profiling
• Performance bottleneck is CPU
• Frequently context switches
• The time spent by the servers in traversing full
  pathnames

16
Improvements to the Prototype

• Cache management
• Previous Cache Management
• Status(in virtual memory)/Data(in local disk)
  cache
• Interception only opening/closing operations
• Modifications to a cached files are reflected
  back to Vice when the file is closed
• Callback
• the server promises to notify it before allowing
  a modification
• This reduces cache validation traffic
• Each should maintain callback state information
  (Restricted)
• There is a potential for inconsistency

17
Improvements to the Prototype (contd)

• Name resolution
• Previous Name Resolution
• inode - unique, fixed-length
• pathname one or more, variable-length
• namei routine maps a pathname to an inode
• CPU overhead on the servers
• Each Vice pathname involves implicit namei
  operation.
• fid unique, fixed-length
• Map a component of a pathname to a fid
• Each 32 bit- Volume number, Vnode number,
  Uniquifuier
• Volume number Identifying a Volume on one
  server
• Vnode number Index into an file storage info.
  Array
• Uniquifuier Allowing Reuse of Vnode number
• Moving files does not invalidate the contents of
  directories cached on workstation

18
Improvements to the Prototype (contd)

• Communication and server process structure
• Using LWP instead of a single process
• An LWP is bound to a particular client only for
  the duration of a single server operation.
• Using RPC mechanism
• Low-level storage representation
• Access files by their inodes
• vnode on the servers
• inode on the clients

19
Improvements to the Prototype (contd)

• Consistency Semantics
• No dirty read writes to an open file by a
  process are private to the workstation
• Commit on closed
• changes are now visible to new opens, open
  instances do not see the changes
• Other file operation
• visible immediately
• No implicit locking
• application have to cooperate and manage it

20
Improved System Overview

• Server
• VICE (Vast Integrated Computing Environment file
  system )
• Client
• Venus ? VIRTUE (Virtue is Reached Through Unix
  and Emacs)

21
Improved System Overview (contd)

• Case of remote file access
• Access pathname P on workstation
• Kernel(workstation) detects P is Vice file
• Kernel passes it to Venus
• LWP uses the cache to examine each directory
  component D of P
• If D is in the cache and has a callback on it, it
  is used without any network communication
• D is in the cache but has no callback on it, the
  appropriate server is contacted, a new copy of D
  is fetched if it has been updated, and a callback
  is established on it
• D is not in the cache, it is fetched from the
  appropriate server, and a callback is established
  on it

22
Performance of Improved System

• Scalability
• 19 slower than stand-alone workstation
• Prototype is 70 slower

23
Performance of Improved System (contd)

• Scalability

24
Performance of Improved System (contd)

• General Observations

25
Comparison with Remote Open

• Remote Open
• The data in a file are not fetched en mass
• Instead the remote site potentially participates
  in each individual read and write operation
• File is actually opened on the remote site rather
  than the local site
• NFS

26
Comparison with Remote Open (contd)
27
Comparison with Remote Open (contd)

• Advantage of remote-open file system
• Low latency

28
Operability of Improved System

• Volumes
• Volume Movement
• Quotas
• Read-Only Replication
• Backup

29
Conclusion

• AFS Local File, NFS Remote File
• Having an combined approach to achieve best of
  both world
• The first access to the file will be remote
  access
• The file will then downloaded on a low priority
• Partial download of the file, the server need not
  know how much file is downloaded by the client
• Subsequent operation can work on the local file
• Transfer only Changes back to the server
