Digital Archive Policies and Trusted Digital Repositories

1

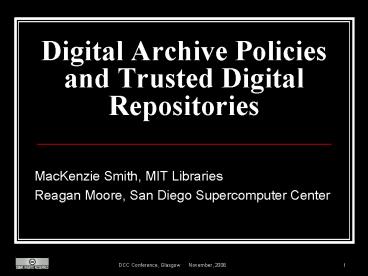

Digital Archive Policies and Trusted Digital
Repositories

• MacKenzie Smith, MIT Libraries
• Reagan Moore, San Diego Supercomputer Center

2
What is the Problem?

• Need to extract local collection management
  policies from software to be more discoverable,
  configurable
• Need to standardize ILM policies for sharing
  across systems within a preservation environment
• Need to define metadata to audit ILM operations
  and achieve trust in a scalable, automated way

3
(No Transcript)
4
Local Repository Policy/Rule Types

• Enterprise specification of assertions
• Archive a-periodic, deferred consistency rules
• Collection periodic rules
• Item periodic or atomic rules

5
Policy Framework

• Based on the NARA/RLG TDR checklist categories
• Organization, environment and legal policies
• Community and usability policies
• Process and Procedure policies
• Technology and Infrastructure policies

6
Policy Framework

• Abstract policy (high-level)
• Example
• repository stipulates the number and location of
  copies of all digital objects. Number of copies
  to be made, and which specific location(s),
  business rules, preferences for order of
  replication use. Repository has mechanisms in
  place to insure any/multiple copies of digital
  objects are synchronized.

7
Policy Framework

• Concrete policy (local policy and metadata)
• Example
• Specific number of copies of digital objects
• Locations of copies of digital objects
• Order of preference for digital object copies
• Location of business rules for copies (e.g.
  contract with 3rd party archives for remote
  copies)

8
Policy Encoding

• Looked at lots of schemas and approaches
• XACML and RuleML, BPEL too limited
• Single purpose (access control, rights
  management, workflow, etc.)
• Ponder and KAoS too risky
• Research projects that are no longer active
• Using Rei (N3) RDF ontology

9
Policy Exchange

• DSpace DIPs
• based on METS (also looked at XFDU, IMS CP,
  others)
• encapsulates content files, metadata, provenance,
  and policies
• iRODS
• enforces policies based on local rules
• produces state information (metadata) that can be
  audited by the DSpace repository over time

10
Example Functional Requirements

• The ERA list defines 854 key capabilities
  (functional requirements) needed for
  preservation. These can be loosely organized
  into categories related to
• Management of disposition agreements describing
  record retention and disposition actions
• Accession, the formal acceptance of records into
  the data management system
• Arrangement, the organization of the records to
  preserve a required structure (implemented as a
  collection/sub-collection hierarchy)
• Description, the management of descriptive
  metadata as well as text indexing
• Preservation, the generation of Archival
  Information Packages
• Access, the generation of Dissemination
  Information Packages
• Subscription, the specification of services that
  a user picks for execution
• Notification, the delivery of notices on service
  execution results
• Queuing of large scale tasks through interaction
  with workflow systems
• System performance and failure reports. Of
  particular interest is the identification of all
  failures within the data management system and
  the recovery procedures that were invoked.
• Transformative migration, the ability to convert
  specified data formats to new standards. In this
  case, each new encoding format is managed as a
  version of the original record.
• Display transformation, the ability to reformat a
  file for presentation.
• Automated client specification, the ability to
  pick the appropriate client for each user.

11
Rule Definition

• Based on assessment criteria / preservation
  policies / preservation functional capabilities
• Implemented as
• Rules controlling micro-services with associated
  persistent state information

12
Case Study

• SRB/iRODS virtualized storage environment
• Provides 3rd party preservation services
• Rules derived from local policy, preservation
  requirements
• Provides metadata to allow monitoring for trust

• DSpace_at_MIT institutional repository
• Defines local collection management policies
• Consumes 3rd party preservation services (e.g.
  iRODS)
• Provides provenance/audit (History) to monitor
  trust

13
DSpace Event System

• Archivist defines TDR-level abstract policies,
  System curator defines ILM events of interest,
  based on policies
• e.g. ingest, modification, preservation
  migration, new edition, change in access rules,
  etc.
• System detects and acts on events, records them
  in the local History (provenance audit)
• e.g. iRODS deposit
• History/provenance uses ABC Harmony ontology for
  ILM (RDF)
• System curator monitors
• iRODS state information
• DSpace History subsystem (via standard RDF
  browsing tools)

14
iRODS Rule-based System

• Quantify the management policies
• Automate the application of the policies
• Track the outcomes from application of the
  policies
• First release of the software is this month

15
iRODS - Infrastructure Independence

• Six logical name spaces required to manage
  preservation properties
• Records
• Persons
• Storage resources
• Rules
• Micro-services
• Persistent state information

16
Example Archivist Policies

• Authenticity
• Are required provenance metadata provided with
  record? - Submission requirement
• Is the chain of custody properly documented?
• - Management requirement
• Integrity
• Are the bits protected against natural disasters?
  - Management requirement for replication and
  distribution
• Are the bits preserved without corruption? -
  Future assertion

17
Example Archivist Policies

• Infrastructure independence
• Management of preservation properties
  independently of choice of hardware and software
  infrastructure
• Management policies are needed for assertions
  about the properties of the records (authenticity
  and integrity) and the properties of the
  preservation environment (infrastructure
  independence)

18
Example of Complete Process of Rule Derivation
from Preservation Criteria

• Assessment Criteria
• Integrity of records is preserved
• Management policy
• Integrity will be verified every 6 months
• Preservation capabilities
• Replication of records
• Checksum on each record
• Synchronization between replicas
• Federation between archives

19
Rule-based Preservation Policies

• Generated Rules
• Event-condition-(set of micro-service or other
  rules)
• Each micro-service corresponds to operations on a
  record at a remote storage location
• Each micro-service has a recovery procedure to
  handle remote system failure or unavailability
• Persistent state information is saved to track
  the outcome from applying the rule

20
Rule ExampleValidate Record Integrity

• Check permissions (requires archivist or proxy)
• Operations on specified record
• Access remote site
• Compute the checksum and compare with archived
  value
• If checksum is not correct
• Access a replica, compute checksum, and verify is
  correct
• Replace bad replica with a good replica
• Update audit list to track the replacement
• Update persistent state to record date of
  checksum verification

21
Additional Implied Assessment Criteria

• Are there any orphaned records present in the
  archive with no preservation metadata?
• Are the replicas distributed across independent
  administrative domains on different types of
  storage systems?
• Is the observed error rate a factor of four lower
  than the validation rate?
• Have all records been validated within the
  required time period?

22
Self-consistency and Closure

• For every required preservation attribute
  (authenticity and integrity) are their assessment
  criteria?
• For every assessment criterion, does there exist
  preservation metadata?
• Are the properties of the preservation
  environment also preserved?
