Data Mining

1

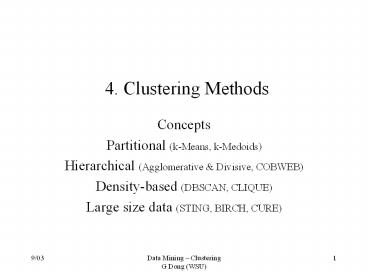

4. Clustering Methods

• Concepts
• Partitional (k-Means, k-Medoids)
• Hierarchical (Agglomerative Divisive, COBWEB)
• Density-based (DBSCAN, CLIQUE)
• Large size data (STING, BIRCH, CURE)

2
The Clustering Problem

• The clustering problem is about grouping a set of
  data tuples into a number of clusters. Data in
  the same cluster are highly similar to each other
  and data in different clusters are highly
  different from each other.
• About clusters
• Inter-clusters distance ? maximization
• Intra-clusters distance ? minimization
• Clustering vs. classification
• Which one is more difficult? Why?
• Various possible ways of clustering, which way is
  the best?

3
Different ways of representing clusters

• Division with boundaries
• Venn diagram or spheres
• Probabilistic
• Dendrograms
• Trees
• Rules

1 2 3
I1 I2 In
0.5 0.2 0.3
4
Major Categories of Algorithms

• Partitioning Divide into k partitions (k fixed)
  regroup to get better clustering.
• Hierarchical Divide into different number of
  partitions in layers - merge (bottom-up) or
  divide (top-down).
• Density-based Continue to grow a cluster as long
  as the density of the cluster exceeds a threshold
• Grid-based First divide space into grids, then
  perform clustering on the grids.

5
k-Means

• Algorithm
• Given k
• Randomly pick k instances as the initial centers
• Assign the rest instances to closest one of k
  clusters
• Recalculate the mean of each cluster
• Repeat 3 4 until means dont change
• How good the clusters are
• Initial and final clusters
• Within-cluster variation ?diff(x,mean)2
• Why dont we consider inter-cluster distance?

6
Example

• For simplicity, 1 dimensional objects and k2.
• Objects 1, 2, 5, 6,7
• K-means
• Randomly select 5 and 6 as initial centroids
• gt Two clusters 1,2,5 and 6,7 meanC18/3,
  meanC26.5
• gt 1,2, 5,6,7 meanC11.5, meanC26
• gt no change.
• Aggregate dissimilarity 0.52 0.52 12
  12 2.5

7
Discussions

• Limitations
• Means cannot be defined for categorical
  attributes
• Choice of k
• Sensitive to outliers
• Crisp clustering
• Variants of k-means exist
• Using modes to deal with categorical attributes
• How about distance measures
• Is it similar to or different from k-NN?
• With and without learning

8
k-Medoids

• k-Means algorithm is sensitive to outliers
• Is this true? How to prove it?
• Medoid the most centrally located point in a
  cluster, as a representative point of the
  cluster.
• In contrast, a centroid is not necessarily in a
  cluster.
• An example

Initial Medoids
9
Partition Around Medoids

• PAM
• Given k
• Randomly pick k instances as initial medoids
• Assign each instance to the nearest medoid
• Calculate the objective function
• the sum of dissimilarities of all instances to
  their nearest medoids
• Randomly select an instance y
• Swap some medoid x by y if the swap reduces the
  objective function
• Repeat (3-6) until no change

10
k-Means and k-Medoids

• The key difference lies in how they update means
  or medoids
• Both require distance calculation and
  reassignment of instances
• Time complexity
• Which one is more costly?
• Dealing with outliers

Outlier (100 unit away)
11
EM (Expectation Maximization)

• Moving away from crisp clusters as in k-Means by
  allowing an instance to belong to several
  clusters
• Finite mixtures a statistical clustering model
• A mixture is a set of k probability
  distributions, representing k clusters
• The simplest finite mixture one feature with a
  Gaussian
• When k2, we need to estimate 5 parameters 2
  pairs of µ, 2 pairs of s, and pA, where pB 1-
  pA
• EM
• Estimate using instances
• Maximize the overall likelihood that data came
  from this data set

12
Agglomerative

• Each object is viewed as a cluster (bottom up).
• Repeat until the number of clusters is small
  enough
• Choose a closest pair of clusters
• Merge the two into one
• Defining closest Centroid (mean of cluster)
  distance, (average) sum of pairwise distance,
• Refer to the Evaluation part
• A dendrogram is a tree that shows clustering
  process.

13
Dendrogram

• Cluster 1, 2, 4, 5, 6, 7 into two clusters
  (centriod distance)
• 1
• 2
• 4
• 5
• 6
• 7

14
An example to show different Links

• Single link
• Merge the nearest clusters measured by the
  shortest edge between the two
• (((A B) (C D)) E)
• Complete link
• Merge the nearest clusters measured by the
  longest edge between the two
• (((A B) E) (C D))
• Average link
• Merge the nearest clusters measured by the
  average edge length between the two
• (((A B) (C D)) E)

A B C D E
A 0 1 2 2 3
B 1 0 2 4 3
C 2 2 0 1 5
D 2 4 1 0 3
E 3 3 5 3 0
B
A
E
C
D
15
Divisive

• All instances belong to one cluster (top-down)
• To find an optimal division at each layer
  (especially the top one) is computationally
  prohibitive.
• One heuristic method is based on the Minimum
  Spanning Tree (MST) algorithm
• Connecting all instances with MST (O(N2))
• Repeatedly cut out the longest edges at each
  iteration until some stopping criterion is met or
  until one instance remains in each cluster.

16
COBWEB

• Building a conceptual hierarchy incrementally
• Each cluster has a probabilistic description
• Category Utility
• ?k?i?jP(fivij)P(fivijck)P(ckfivij)
• All categories ck, all features fi, all feature
  values vij
• It attempts to maximize both the probability that
  two objects in the same category have values in
  common and the probability that objects in
  different categories will have different property
  values

17
A tree of clusters produced by COBWEB
18

• Processing one instance at a time by choosing
  best among
• Placing the instance in the best existing
  category
• Adding a new category containing only the
  instance
• Merging of two existing categories into a new one
  and adding the instance to that category
• Splitting of an existing category into two and
  placing the instance in the best new resulting
  category

Grandparent
Grandparent
Split
Parent
Child 2
Child 1
Merge
Child 2
Child 1
19
Cobweb Demo http//kiew.cs.uni-dortmund.de8001/m
lnet/instances/81d91eaae317b2bebb
20
Density-based

• DBSCAN Density-Based Clustering of Applications
  with Noise
• It grows regions with sufficiently high density
  into clusters and can discover clusters of
  arbitrary shape in spatial databases with noise.
• Many existing clustering algorithms find
  spherical shapes of clusters
• DBSCAN defines a cluster as a maximal set of
  density-connected points.

21

• Defining density and connection
• ?-neighborhood of an object x (core object) (M,
  P, Q)
• MinPts of objects within ?-neighborhood (say, 3)
• directly density-reachable (Q from M, M from P)
• density-reachable (Q from P, P not from Q)
  asymmetric
• density-connected (O, R, S) symmetric ltfor
  border pointsgt
• What is the relationship between DR and DC?

22

• Clustering with DBSCAN
• Search for clusters by checking the
  ?-neighborhood of each instance x
• If the ?-neighborhood of x contains more than
  MinPts, create a new cluster with x as a core
  object
• Iteratively collect directly density-reachable
  objects from these core object and merge
  density-reachable clusters
• Terminate when no new point can be add to any
  cluster
• DBSCAN is sensitive to the thresholds of density,
  but it is many folds faster than CLARANS
• Time complexity O(N log N) if a spatial index is
  used, O(N2) otherwise

23
Dealing with Large Data

• Key ideas
• Reducing the number of instances to be
  maintained, and yet to maintain the distribution
• Identifying relevant subspaces where clusters
  possibly exist
• Using summarized information to avoid repeated
  data access
• Sampling
• CLARA (Clustering LARge Applications) working on
  samples instead of the whole data
• CLARANS (Clustering Large Applications based on
  RANdomized Search)

24

• Grid STING (STatistical INformation Grid)
• Statistical parameters of higher-level cells can
  easily be computed from those of lower-level
  cells
• Attribute-independent count
• Attribute-dependent mean, standard deviation,
  min, max
• Type of distribution normal, uniform,
  exponential, or unknown
• Irrelevant cells can be removed

25
Representatives

• BIRCH using Clustering Feature (CF) and CF tree
• A cluster feature is a triplet about sub-clusters
  of instances (N, LS, SS)
• N - the number of instances, LS linear sum, SS
  square sum
• Two thresholds branching factor (the max number
  of children per non-leaf node) and diameter
  threshold
• Two phases
• Build an initial in-memory CF tree
• Apply a clustering algorithm to cluster the leaf
  nodes in CF tree
• CURE (Clustering Using REpresentitives) is
  another example

26
CF Tree
B Branching factor L Threshold max diameter of
subclusters at leaf nodes
Root
B 7 L 6
Non-leaf node
CF1
CF3
CF2
CF5
child1
child3
child2
child5
Leaf node
Leaf node
CF1
CF2
CF6
prev
next
CF1
CF2
CF4
prev
next
27

• Taking advantage of the property of density
• If its dense in higher dimensional subspaces, it
  should be dense in some lower dimensional
  subspaces
• CLIQUE (CLustering In QUEst)
• With high dimensional data, there are many void
  subspaces
• Using the property identified, we can start with
  dense lower dimensional data
• CLIQUE is a density-based method that can
  automatically find subspaces of the highest
  dimensionality such that high-density clusters
  exist in those subspaces

28
Drawbacks of Distance-Based Method

• Drawbacks of square-error based clustering method

• Consider only one point as representative of a
  cluster
• Good only for convex shaped, similar size and
  density, and if k can be reasonably estimated

29
Chameleon

• A hierarchical Clustering Algorithm Using Dynamic
  Modeling
• Observations on the weakness of pure distance
  based methods
• Basic steps
• Build K nearest neighbor graph
• Partition the graph
• Merge the strongly connected partitions, in
  terms of strength of connections between
  partitions

30
Summary

• There are many clustering algorithms
• Good clustering algorithms maximize inter-cluster
  dissimilarity and intra-cluster similarity
• Without prior knowledge, it is difficult to
  choose the best clustering algorithm.
• Clustering is an important tool for outlier
  analysis.

31
Bibliography

• I.H. Witten and E. Frank. Data Mining Practical
  Machine Learning Tools and Techniques with Java
  Implementations. 2000. Morgan Kaufmann.
• M. Kantardzic. Data Mining Concepts, Models,
  Methods, and Algorithms. 2003. IEEE.
• J. Han and M. Kamber. Data Mining Concepts and
  Techniques. 2001. Morgan Kaufmann.
• M. H. Dunham. Data Mining Introductory and
  Advanced Topics.
