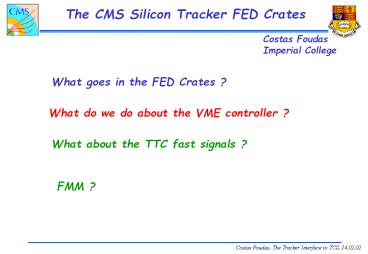

1The CMS Silicon Tracker FED Crates
Costas Foudas Imperial College
What goes in the FED Crates ?
What do we do about the VME controller ?
What about the TTC fast signals ?
FMM ?
2The Choice of VME Controller
- The FED will support VME64x (eventually)
Therefore we need to gain experience with the
VEM64x protocol in the near future. - Why ? VME64x can reach up to 160 MBytes/sec
theoretical block transfer (BLT) rate. Most
liekly less than that but still faster than the
old VME. - 4 types of PCI-to-VME cards exist Wiener
(indeed), National Instruments, SBS, Struck. To
my knowledge only the Struck one supports VME64x
and can do 80 MBytes/sec real rate (I measured it
in their lab at Hamburg). They claim to be
firmware upgradeable to 100 Mbytes/sec. - Keep in mind that in order to evaluate this card
you need also a VME64x slave (FED or something
else)
3The Struck PCI-to-VME64x Bridge
- It consists of 2 modules connected via optical
link (Fiber) - The VME side is 6U 160 mm.
- The PCI side consists of a mother board and the
optical card. - Installation
- Just like the SBS
- Linux public drivers
- available.
4The PCI module
- Standard PCI mother board
- Optical driver/receiver card
5Specification
Uses a Sequencer to avoid overhead between VME
transfers
Supports 2 edge VME Block transfer (160
Mbytes/sec in theory )
Long Optical connection. Also an 20 Km option.
66U 180 vs 9U 400 mm
Why do it like this ?
The VME master connects directly to the VME
bus.
The front panel is 9U VME and the Crate can close
7The FED Racks I
PC
9U FED VME CRATE
9U VME
Up to 17 FEDs
9U VME
?
The VME Controller
9U VME
8The Rack Design
Need to get one of these and start asking
questions Where does all fit ? Is there
enough cooling where we need it ? How do we
route all the cables (optical or copper)
9VME Control
PC
? PC 3 VME ? cPCI Adapters
VME Controller
10DAQ Connection
Run control
Rack 14
Rack 1
PC
PC
. . . . . . . . 14 Racks
VME
VME
VME
VME
VME
VME
11FED Fast Signals to TTS
- The FED outputs the 4 TTS signals on the P0
connector in LVDS. - The different FED signals can by daisy chained to
produce a crate summary or can be send
individually to so FMM board. - The merged fast signals are driven to the APVE
input and are combined with those generated by
the APVE.
P0
LVDS Signals Ready,Busy,Warn_OVF,Out_of_Synch,
Error
12The FED Racks II
PC
9U FED VME CRATE
9U VME
Up to 17 FEDs
9U VME
?
?
The TTC dummy Card It receives the TTC signals
from P0 and send them to an FMM on their way to
APVE.
The VME Controller
9U VME
13Summary
- Get a Struck module and evaluate it but it will
not be of use till there is a VME64x slave. - Need a design for getting the TTC signals from
the P0 to the FMM. - Need to start some system design of our rack,
the crate and the signals.
