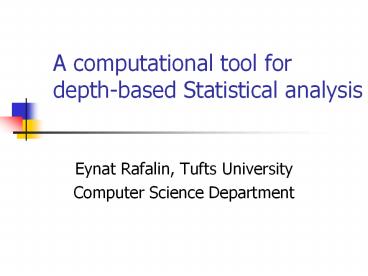

1
A computational tool fordepth-based Statistical
analysis
  • Eynat Rafalin, Tufts University
  • Computer Science Department

2
The tool
  • Easy to use, efficient and expandable interface,
    for statistical research, based on the notion of
    data depth.
  • For scientists with no computer science
    background.

3
Our goal
  • Present the tool to the community
  • Code\software available on request
  • Run on real data
  • Get feedback
  • Is such a tool needed?
  • Additions\improvements?

4
General
  • C based software (no additional tools\software
    needed)
  • Simple interface. Should allow to
  • enter data files, sort the data points and filter
    unwanted data
  • perform calculations
  • present the results in an easy to understand
    graphical interface
  • Save and output data for future use
  • Fast
  • Portable code

5
General description
Data filter
txt, excel files
output
Statistical modules
Geomview
Contours display and selection
6
Data filter
  • Graphical user interface developed in C
  • Used to crop\manipulate a data set before it is
    fed into the statistical modules
  • Fast and light
  • Convenient and easy to use user interface
  • Portable code (UNIX, Solaris, Linux, Win)

7
Data filter
8
Statistical modules
  • Depth contours (2D)
  • Half-space (location) depth contours
  • optimal O(n2) time
  • Supports two approaches for defining contours
  • Including Tukey median and the bagplot
  • Including contours parameters (size, etc..)
  • Convex hull peeling depth contours
  • Simplicial depth contours
  • Tukey median computation (O(nlog3n))
  • Locating a new point in a set of depth contours
    (O(log n) query time)

9
Approaches for defining depth contours
  • P. Rousseeuw et al.
  • The k-th depth contour is the boundary of the set
    of points in the plane with depth ?k
  • R. Liu et al. (based on order statistics)
  • The sample p-th central hull is the convex hull
    containing the most central fraction p sample
    points.

10
Half-space (location) depth contours module
Depth contours for a sample set with 8 data points
Depth contours for a data set describing diabetic
patients
11
Statistical modules cntd.
  • Plots
  • DD (Depth vs. Depth) plots
  • O(n2) time
  • Shrinkage plots
  • Fan plots

12
DD (Depth vs. Depth) plots module
Depth according to set A
Depth according to set B
Two 2D data sets of 50 points each, created from
normal distribution, centered at (0,0), with
different covariance matrices (1 and 4 id).
13
Fan plots
Relative area (CH of p/CH)
Percentile of points
50 data points, created from a random
distribution, with covariance matrix 4 times
identity. The fans are created for data sets
containing the 1/6, 2/6, ..central regions. For
each region the area of the CH of 2, 4, 6, of
the points is computed.
14
Graphical contour selection tool
  • Plots depth contours and selects data ranges.
  • Actions
  • Import\export
  • Select points
  • Depth slider
  • Filter

15
Future work
  • Run the tool on existing data sets
  • Distribute preliminary versions and get users
    feedback
  • Data filter
  • Group by row\column
  • Filter by row\column
  • Interactions between rows\columns (addition,
    substitution, logical operations)
  • Statistical modules
  • Implement additional modules
  • Improve running times

16
Contributors
  • Prof. Diane Souvaine
  • Prof. Alva Couch
  • Eynat Rafalin
  • Michael Burr
  • Joe Handelman
  • James Hayes
  • Ori Taka
  • Alok Lal
  • Janet Luan
  • Kim Miller
  • Tim Mitchell
  • Nikolai Shvertner
