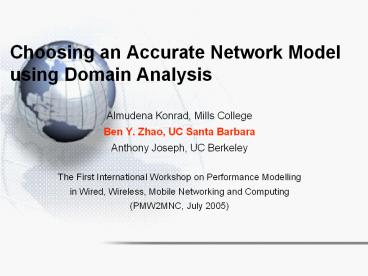

Choosing an Accurate Network Modelusing Domain
Analysis
  • Almudena Konrad, Mills College
  • Ben Y. Zhao, UC Santa Barbara
  • Anthony Joseph, UC Berkeley
  • The First International Workshop on Performance
    Modelling
  • in Wired, Wireless, Mobile Networking and
    Computing
  • (PMW2MNC, July 2005)

2
Modeling Network Measurements
  • Model-driven traces as experimental tool
  • Real measurements costly to perform
  • Produce models by extracting statistics from
    measurements
  • Use model to generate traces w/ similar
    characteristics
  • New networks (wireless) difficult to model
  • Traditional models require stationary statistics
  • Gilbert model, Higher order DTMC, Hidden Markov
    Models (HMM)
  • Artifacts disrupt stationarity of wireless traces
  • Bursty error or delays due to signal interference
    or loss
  • Result traditional models generate inaccurate
    results
  • Our solution
  • Data preconditioning preprocess traces before
    extracting model
  • Result MTA, MMTA accurately model wireless traces

3
A New Challenge
  • Many mathematical models are available
  • Gilbert, Higher order DTMC, HMM, MTA, MMTA
  • Each optimized for certain characteristics
  • Each with different computational and memory
    costs
  • Different networks exhibit different
    characteristics
  • IP networks, wireless (802.11), sensor nets
  • The challenge
  • Match up network type with more accurate, lowest
    cost model
  • No tools or techniques to do this
  • Our solution
  • Domain analysis

4
Outline
  • Motivation
  • Data preconditioning and its models
  • The Markov-based Trace Analysis model (MTA)
  • The Multiple states MTA model (MMTA)
  • Quantifying modeling accuracy
  • Domain Analysis
  • Conclusion

5
Modeling using Data Preconditioning
  • Collect network characteristic trace
  • Binary traces show occurrence of an event, e.g.
    lost or delayed frame
  • Identify data patterns or states (regions with
    stationary behavior)
  • Precondition the data to fit traditional models
  • Calculate probability distribution for each state
  • Determine transition probabilities among states

Collected Trace
Subtrace 1
Subtrace 2
Subtrace 3
6
Preconditioning Model (MTA)
  • MTA Markov-based Trace Analysis Algorithm
  • Two states lossy error-free states
  • Create two subtraces ? lossy error-free
    subtraces
  • Algorithm to optimize the change-of-state
    variable, C
  • For a given trace, executes stationary test for
    large range of values C
  • Choose the highest C that yields a stationary
    lossy states
  • Model subtraces as Exponential distributions

Lossy
Lossy
Error-free
Error-free
States
C
C
10001110011100.0 00000000 1100110000
00000..000...
Trace
...10001110011100.0
1100110000 ...
Error-free sub-trace
Lossy sub-trace
00000000
00000..000...
7
Preconditioning Model (MMTA)
  • MMTA Multiple states MTA Algorithm
  • Allows for multiple states in the data
  • Identifies states in original trace
  • Concatenates similar states to create subtraces
  • Uses a DTMC to model subtraces transition
    between states

8
Network Path Traces
  • A selection of end to end wireless layer path
    traces
  • 0000000 10101111 00000000000
  • End-to-end IP traces (IP-1)
  • End-to-end WLAN delay trace (WLAN-D)
  • Wireless WLAN trace (WLAN-E)
  • Wireless GSM trace (GSM-E)
  • Trace collected at the Radio Link Protocol (RLP)
  • Traces can be decomposed into two stationary
    states
  • Lossy error-free states
  • Characterize traces with three parameters (Lexp,
    EFexp, Lden)
  • Exponential length distributions of lossy and
    error-free states
  • Lossy error density

9
Quantifying Accuracy of Models
  • Previously used metrics
  • FER and simulated transmission time
  • No actual correlation to error distribution
  • How accurate is a particular model?
  • Synthetic traces comparison (Lexp, EFexp, Lden)
  • Compute correlation coefficient between
    error-burst distributions

Reference trace (Lexp, EFexp, Lden)
(0.006, 0.1, 1)
Relationship between cc and accuracy CC gt 0.96
indicates an accurate model
10
Example of Model AccuracyGSM Error Burst
Distributions
  • GSM, MTA MMTA experience similar error burst
    characteristics
  • Gilbert, 3rd order and HMM dont reproduce large
    error burst

CC values Gilbert 0.74 HMM 0.89
MTA 0.99 MMTA 0.99
11
Choosing the Right Network ModelDomain Analysis
  • Preconditioning models also work well for
    traditional networks
  • There could be a bursty nature to congestion
    loss in IP networks
  • Key is the presence of bursty behavior
  • Need a way to choose optimal model for given
    network
  • Solution domain analysis
  • Domain analysis
  • Create Domain Analysis Plots (DAPs) for wide
    range of parameters
  • Collect empirical packet trace T 00110110100
  • 1 corrupted/delayed packet, 0 normal packet
  • Calculate parameters (Lexp, EFexp, Lden) for T
  • Use DAPs to lookup optimal model

12
Domain Analysis Plots (DAPs)
  • Generate reference traces (T1..Tx)
  • Range of values (Lexp, EFexp, Lden)
  • For each reference trace Ti create
  • mathematical models
  • artificial traces from models
  • Plot error and error-free distribution
  • Calculate CC between reference and artificial
    distributions
  • Optimal model for Ti gt models that yield highest
    CC value

13
DAPs for (Lexp,EFexp) 0.001 -gt 0.1
  • DAP 1 Lden0.2
  • Gilbert region CC values (Gilbert 0.99)
  • MMTA 0.98
  • MMTA region CC values (MMTA 0.97)
  • Gilbert 0.96
  • DAP 2 Lden 0.4
  • Gilbert region CC values (Gilbert 0.99)
  • MTA 0.97
  • MTA region CC values (MTA 0.98)
  • MMTA region CC values (M30.97)

14
DAP for (Lexp,EFexp) 0.001 -gt 0.1
  • DAP 3 Lden0.7
  • MMTA region CC values (MMTA0.98)
  • MTA0.97
  • MTA region CC values (MTA0.99)
  • MMTA0.99

15
Conclusions
  • The challenge
  • How to choose the most accurate, least cost model
    for each network type
  • The solution
  • Key metric for modeling accuracy by error burst
    distributions
  • Domain analysis plots show optimal model for
    different networks
  • Using domain analysis
  • Take your own traces for network X
  • Calculate the three parameter values
  • Use DAP to determine optimal model for your trace

16
  • Thank you
  • Questions?
  • akonrad_at_mills.edu
