Analytical and Computer Cartography

1

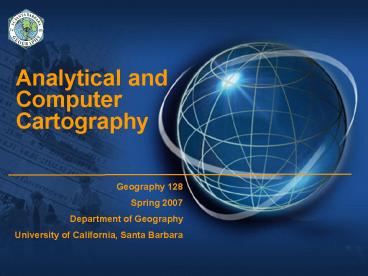

Analytical and Computer Cartography

• Geography 128
• Spring 2007
• Department of Geography
• University of California, Santa Barbara

2
Cast of characters

• Qingfeng (Gene) Guan Instructor
• Michael McDaniel TA
• The book web site http//www.geog.ucsb.edu/kclar
  ke/AACC
• The class web page http//www.geog.ucsb.edu/guan
  /courses/128_Spring07/
• The Descartes Lab (Ellison 3620)
• ArcGIS 9.X, ArcView 3.X, MicroCAM, MicroDEM

3
What will I learn in Geog 128?

• An overview of Analytical and Computer
  Cartography
• How Digital Cartographic data are captured,
  stored, and displayed
• Cartographic Data Structure
• Spatial Data Structure
• Map Data Structure
• Cartographic Transformation
• Map Transformation
• Data Structure Transformation
• Applications of Analytical Cartography
• Terrain Analysis

4
Requirements and Grading

• Lecture Attendance 10
• Midterm Exam 20
• Final Exam 20
• Labs 50

5
Lecture 1
What is Computer Cartography? What is Analytical
Cartography?
6
What is Cartography?

• Cartography - the science, technology and art of
  making maps.

7
Ancient Cartography and Maps - The Oldest Map of
the World
Town Plan from Catal Hyük DATE 6200
B.C.LOCATION Museum at Konya, Turkey
8
Ancient Cartography and Maps - Maps on Clay
Tablets
Ga-Sur, 2,500 B.C.
Babylonian World Map, 600 B.C.
9
Cartographic Timeline
10
Cartographic Timeline
11
Cartographic Timeline
12
(No Transcript)
13
Maps in the first half of the 20th Century
14
Early Computer Cartography
15
Early Computer-made Maps
16
Evolution of Computer Cartography
17
What is Computer Cartography?

• Computer Cartography the science, technology
  and art of making maps using computers and other
  new technologies

18
What have computers done to Cartography? -
Faster and Easier, even Cheaper

• Computer graphics for map drawing
• New survey technologies for map update

• Computer data transfer via mobile storages and
  networks for map sharing
• Computer printing technology for map production

19
What have computers done to Cartography? - More
Accurate and More Precise

• New survey technologies increase the accuracy of
  geographic information

• Computer graphics and plotting/printing vs.
  manual drawing
• Computers enable more significant digits more
  precise

20
What have computers done to Cartography? - The
Design Loop!!
21
What have computers done to Cartography? -
Anyone can do Cartography?
22
What have computers done to Cartography? -
Anyone can do Cartography?
The Economist, May 3, 2003
23
What have computers done to Cartography? - The
birth of Analytical Cartography GIS

• Born in the 1960s and 1970s
• From technological focus to theoretical focus

• The early Geographic Information Systems are more
  like computer mapping programs plus a few data
  management functions.

24
What is Analytical Cartography?

• Waldo Tobler (1966) solving cartographic
  problems

• Waldo Tobler (1976) mathematical and
  analytical parts of cartography that remain
  independent of technology that applies to both
  real and virtual maps (Moellering, et. al.
  UCGIS)

25
Typical Topics in Analytical Cartography

• Map Transformation
• Sampling
• Critical Features
• Map Generalization
• Shape Analysis
• Data Models and Structures
• Analytical Visualization
• A lot more

26
Next Lecture

• A Transformational View of Cartography
• Map Projections
• Real Maps vs. Virtual Maps
