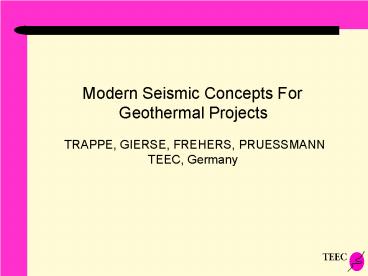

Modern Seismic Concepts For Geothermal Projects
TRAPPE, GIERSE, FREHERS, PRUESSMANN TEEC,
Germany
2
Modern Seismic Concepts For Geothermal Projects
Outline Seismic porosity facies
prediction Fracture prediction Cost efficient 3D
seismic data aquisition
3
Modern Seismic Concepts For Geothermal Projects
Mapping porosity and facies distribution
4
neuroTEEC seismic facies classification
5
neuroTEEC Seismic Facies Classification
6
Amplitude Bright Spot Seismic Inversion
7
3D Modelling Porosity Distribution
A 3D porosity model based on seismic information
8
Definition of compartments / small scale faults
and fractures
9
cohTEEC coherency processing
Size 21 x 11 km
10
cohTEEC coherency processing
Size 6 x 7 km
11
IHS display at Top A2
12
Normalized fracture density after cokriging
Cokriging result
Poor data quality area(salt dome)
Normalized fracture density (FMI)
Poor data quality area(salt dome)
13
Sparse 3D Seismic
14
CRS theory
RN
RNIP
NIP
R
Normal Incidence Point
Reflector segment
(Mann et al., 1999)
Experiment 1 Point source at NIP - Emergence
angle a - Wavefront curvature RNIP
Experiment 2 Exploding reflector R - Emergence
angle a - Wavefront curvature RN
15
Comparison of CRS results

• Improved imaging due to higher stack fold
• Reduction of near surface data gaps related to
  mute

CRS
DMO
16
DMO / CRS subset 3
CRS (2 sr-line)
DMO
17
Conclusion
Modern Seismic Concepts For Geothermal Projects

• Proven concepts exists for Porosity and Facies
  Prediction
• Workflows are available for quantitative fracture
  prediction
• CRS technology allows for 3D seismic acquisition
  even with limited budget
