Middleware R

1

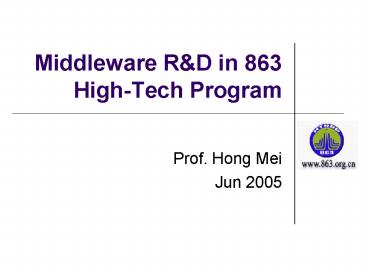

Middleware RD in 863 High-Tech Program

• Prof. Hong Mei
• Jun 2005

2
Outline

• Overview
• Orientware
• Research in PKU

3
863 - middleware -- history

• The 9th 5-year plan 1996-2000
• Funded some distributed computing projects
• Message middleware and CORBA middleware
• The 10th 5-year plan 2001-2005
• Make middleware an independent subject area in
  information technology field
• More than 230 million RMB investment
• Six key projects and dozens of application
  projects
• Visit at http//www.863.org.cn

4
863 - middleware -- mission

• Promote core software technology with
  intellectual property rights
• Develop competent products meeting China market
  requirements
• Make Chinas software industry strong

5
863 - Middleware -- technology overview
Quality Assurance and Management
Development platform
Toolkits for deploy
Requirement. Specification
Toolkits for Developing
Component resource
Middleware platform
Host platform
6
863 - middleware -- Strategy
Research
Academic institutes researching on advanced
technology
Domain users providing specific applications
built-upon middleware platforms
Development
Transfer
Middleware vendors developing various middleware
products
Requirement
Application
Platform
7
863 - middleware state-of-the-practice

• Research Academies
• BeiHang University
• Institute of Software, Chinese Academy of Science
• National University of Defense Technology
• Nanjing University
• Peking University
• Major research products and systems
• WebService related XLinker/WSWF/UDDI/
• Message/Tx/J2EE related ONCE
• CORBA related StarBus/StarCCM/StarWebService/
• J2EE related PKUAS

8
863 - middleware state-of-the-practice (cont.)

• Development - Middleware Vendors
• NeuSoft
• CVIC SE
• Intervision
• TongTech
• ...
• Major vendor products
• NeuSoft NeuSoftWeb/ NeuSoftmwail
• CVIC SE - InforBus/InforWeb/InforEAI/
• Intervision - InterBus/Interpipe/...
• TongTech TongLink/TongWeb

9
863 - middleware state-of-the-practice (cont.)

• Applications Domain Users
• Finance
• Transportation
• Telecom
• E-Government
• E-Business

10
Outline

• Overview
• Orientware
• Research in PKU

11
Orientware
What we want Integrating them

• What we have
• Various featured products

12
Orientware overview

• Orientware consists of
• Application Servers CORBA Java
• Portal Server
• Transaction monitor
• Web Services Server Registry
• Workflow engine

13
Orientware architecture
System integration View
Service-oriented Integration Platform
Portal
Visual Monitoring Management Tool
UDDI Registry
Web Services Workflow Engine
Web Services Container
CCM
EJB
TX
User Application View
Management View
Common Services
IIOP / RMI / SOAP
Component Development Tools
Application Server
Development and Deployment View
14
Technical Features

• Open architecture
• Ready for integrating new product and technology
• Wide interoperability
• Supporting mainstream protocols such as HTTP,
  IIOP, RMI, SOAP,
• Component-based software development
• Conforming to CORBA Component Model and EJB
  Component Model
• Service oriented integration
• Based on de-facto standards such as SOAP, UDDI,
  Workflow, etc
• Built-in management infrastructure

15
Main contributors (up to now)

• National University of Defense Technology
• StarBUS/StarCCM ? OrientwareCCM
• Institute of Software, Chinese Academy of Science
• ONCE ? OrientwarePortal, OrientwareTx
• Beihang University
• WebSASE ? OrientwareXLinker, OrientwareUDDI,
  OrientwareWSWF
• Peking University
• PKUAS ? OrientwareAS

16
National University of Defense Technology

• OrientwareCCM CORBA Component Application
  Server, key features
• Plenty development tools
• Compilers such as IDL, IDL3, CIDL and PSDL
• Visual Tools for assembly and deploy
• Common services
• More than 10 services, eg. NS/OTS/PSS/
• Clustering facility
• Dynamic deployment
• Component upgrading without shutdown down

17
Institute of Software, Chinese Academy of Science

• OrientwarePortal Portal Server, key features
• Personalized service
• Adaptable delivery
• Multiple content sources such as Internet, XML
  document and Database
• Flexible page layout with GUI editor
• 3 layout style
• OrientwareTx Transaction monitor
• Based on X/Open DTP model
• High-performance

18
BeiHang University

• OrientwareXLinker Lightweight SOAP engine
• Support multiple Web Containers and service
  implementations
• OrientwareWSWF Workflow engine
• Support BPEL
• Visual modeling tools and management tools
• OrientwareUDDI High performance UDDI Server

19
Peking University

• OrientwareAS J2EE Application Server, key
  features
• Open interoperable framework
• JRMP/IIOP/SOAP protocols
• Online evolution mechanism
• Add, delete or modify the operating components
• Clustering facility
• Better performance

20
Orientware Applications

• Typical applications
• Credit Management System of the Bank of
  Communications, Shanghai, China.
• GSM Integrated Networking management system of
  UNICOM
• Core Business Applications platform for Insurance
• Container Ticket Processing System of the China
  Railway Corporation
• Traffic Management System
• E-government Information Exchange Platform of
  Heilongjiang province

21
Outline

• Overview
• Orientware
• Research in PKU

22
Ongoing research

• Towards middleware usability and manageability
• Customizable middleware
• Reflective middleware
• Self-adaptive middleware
• Software engineering support for Middleware-based
  development
• Methodology
• Toolkits

23
Customizable and extensible middleware

• Microkernel-based, componentized middleware
  architecture supporting
• Services plug-and-play
• User-defined domain specific services
• Aspect-oriented customization and extension
  mechanism
• Aspect modeling, programming, weaving, debugging

24
From Customization to Reflection
Runtime Changes
Application Software
Application Software
Middleware
Reflective
Network
System Software
System Software
Hardware
Hardware

• Reflective Middleware helps TOWARDS adaptation
• Open up the internal implementation
• Look middleware as Grey-box
• Provide reflection and adaptation mechanism

25
Architecture based Reflective Middleware
By manipulating upon RSA through reflective APIs
of middleware, programmer can dynamically change
the application behaviours.
Reflective Programs
Reflective APIs
Correctness and Security of Reflection
Causal Connection
Causal Connection
Reflective Middleware Based System
26
From Reflective To Self-Adaptive

• Self-adaptive middleware directed
• Self-configuration
• Self-optimization
• Self-healing
• self-protection

Maintenance by Human
Maintenance without Human
Black Box
App
App
Grey Box
Middleware

Self-Adaptive
Reflective
Net
Sys
Sys
Black Box
HW
HW
27
Self-adaptation examples

• Automatic finding and adjusting the best
  performance parameters
• Speedup the process of performance tuning
• Auto recovery of correlated faults
• Quickly locate root fault and recover from
  temporary failures
• Automatic distributing workload
• Help load balancing and fault tolerance

28
Software engineering support
Feature Modeling Tool
Architecture-based Component Composition tool
Deployment Tool
Management and Monitoring Tool
29
Thank you!
