The Polarization of the CMB

1
The Polarization of the CMB

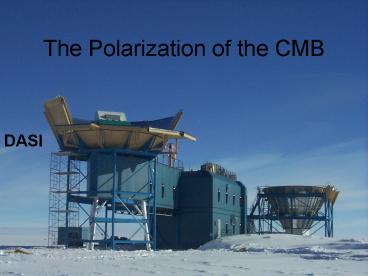

DASI
2
Overview

• Physical origin of polarization
• The information encoded by polarization
• Summary

3
The Anisotropies are polarized
DASI
Kovac et al. astro-ph/0209478
4
(No Transcript)
5
The polarization and temperature patterns are
correlated.
6
How is polarization generated?
Thomson Scattering
7
(No Transcript)
8
Recombination
T 0.3 eV ltlt me c2
Hydrogen is neutral
Hydrogen is ionized Thomson Scattering
9
(No Transcript)
10
The quadrupole created by density perturbations
11
Polarization peaks at smaller scales
Peaks are out of phase
12
The quadrupole created by GW
13
Anisotropies created by GW
ISW like effect, produced after recombination
Polarization is produced at recombination
14
(No Transcript)
15
What can we learn ?

• B Modes pattern of vectors
• After recombination Reionization Bump,
  lensing
• At recombination Acoustic peaks

16
Information in polarization

• Improvement in parameter constraints
  consistency checks
• Test super-horizon nature of perturbations
• Features in the primordial power spectrum
• Isocurvature components
• Test of time evolution of physical constants
• Constrain how and when the universe reionized
• Measure mass distribution along the line of
  sight (lensing)
• Detect gravity waves from inflation

17
The Information in the patternE-B Decomposition
18
(No Transcript)
19
Density pert. Gravity Waves
Gravity Waves
20
Power spectra of E B
E modes
B modes
21
Gravity waves from Inflation
Each polarization of the GW fluctuates during
inflation by (
)
Directly measure the expansion rate during
Inflation
(limit imposed by lensing)
If
22
Super-horizon perturbations
Observer
2o
Decoupling
Initial conditions
Spergel MZ
23
(No Transcript)
24
(No Transcript)
25
The sign of the TE cross correlation
Causal seed model
26
After Recombination
27
Gravitational Lensing
Lensing induced B modes
28
(No Transcript)
29

• The height of the bump is given by the optical
  depth
• The quadrupole is produced by the free streaming
  of the monopole at recombination, k 2/(?reio
  -?rec) produces the biggest quadrupole
• Angular scale l (?o - ?reio )/(?reio -?rec)

30
WMAP Spectra
Negative bump super-horizon perturbations
Large scale polarization Optical depth 0.1
31
Summary

• The CMB is slightly polarized
• Polarization is generated by Thomson scattering
  of radiation that had a quadrupole anisotropy
• For density modes, polarization is roughly
  proportional to the velocity gradient across the
  mean free path
• A stochastic background of gravitational waves
  leave a characteristic signature
• GW produced in inflation are observable if E
  1016 GeV
• Reionization leaves an signature on large scales
• Secondary effects such a lensing can create B
  even if there are no GW
