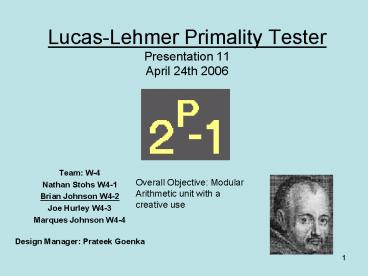

Lucas-Lehmer Primality Tester Presentation 11 April 24th 2006

1
Lucas-Lehmer Primality TesterPresentation
11April 24th 2006

• Team W-4
• Nathan Stohs W4-1
• Brian Johnson W4-2
• Joe Hurley W4-3
• Marques Johnson W4-4
• Design Manager Prateek Goenka

Overall Objective Modular Arithmetic unit with a
creative use
2
Status

• Finished
• Project Chosen
• C simulations
• Behavioral Verilog
• Structural Verilog
• Floor Plan
• Schematics
• Pathmill Simulation of Top Level
• Module Layout
• Global Layout
• In Progress
• Global Simulations

3
Final Floorplan
4
Floorplan
5
Poly Layer Mask
6
Metal1 Layer Mask
7
Metal2 Layer Mask
8
Metal3 Layer Mask
9
Metal4 Layer Mask
10
compare Propagation Delay
11
partial_product Propagation Delay
12
Propagation Delays
Module Schematic extractedRC
FSM 80ps 270ps
mod_p 769ps 944ps
mod_add 817ps 907ps
partial_product -shift_left -shift_right -sub_16 1.11ns 780ps 779ps 144ps - 964ps 976ps 167ps
count 645ps 954ps
compare 727ps 2.25ns
13
Power Estimates
Module Schematic extractedRC
FSM 8.88uW 11.72uW
mod_p 60.63uW 77.80uW
mod_add 86.16uW 89.75uW
partial_product 368uW -
count 53.81uW 60.35uW
compare 131.1nW 1.98uW
14
Design Specifications
Module Transistor Count Area (µm²) Transistor Density
FSM 152 1,200 .13
mod_p 1,280 8,603 .15
mod_add 1,168 5,603 .21
partial_product 7,328 54,680 .13
count 1,412 8,320 .17
sub_16 576 2,934 .20
Registers 896 6,028 .15
compare 40 125 .32
Total 12,852 86,704 .15
Aspect Ratio
2.45
0.79
2.40
1.16
6.79
4.49
4.76
2.90
1.01
15
Whats Next

• Simulations on Global Design

16
Questions?
