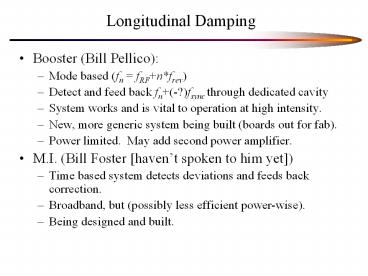

Title: Longitudinal Damping


1
Longitudinal Damping
  • Booster (Bill Pellico)
  • Mode based (fn fRFnfrev)
  • Detect and feed back fn(-?)fsync through
    dedicated cavity
  • System works and is vital to operation at high
    intensity.
  • New, more generic system being built (boards out
    for fab).
  • Power limited. May add second power amplifier.
  • M.I. (Bill Foster havent spoken to him yet)
  • Time based system detects deviations and feeds
    back correction.
  • Broadband, but (possibly less efficient
    power-wise).
  • Being designed and built.

2
MuCool Needs
  • No beam initially, BUT
  • Want to build RF test bed taking RF from Linac
    gallery
  • Spare 800MHz klystron no problem
  • 200 MHz 7835 test stand -gt filament time on 7835
    might be touchy subject.
  • Build H- (??) beamline in 2006
  • Fully switched at 15Hz -gt No effect on non-MuCool
    beam
  • Considering early stripping foil-gt proton line
  • Low intensity commissioning beam (8 weeks),
    totally parasitic
  • After that, about 3 of total Linac pulses/week,
    including 1hr of dedicated 15Hz running
